1829 mm (72 in) Angle Blade

Units of measurement :

Metric

Imperial

Blade Width

1829 mm

Width - Fully Angled

1685 mm

Maximum Blade Angle - Right/Left of Center

30 degrees

Availability

Purchase Rental Used

Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.

Application

Two-Way Blade

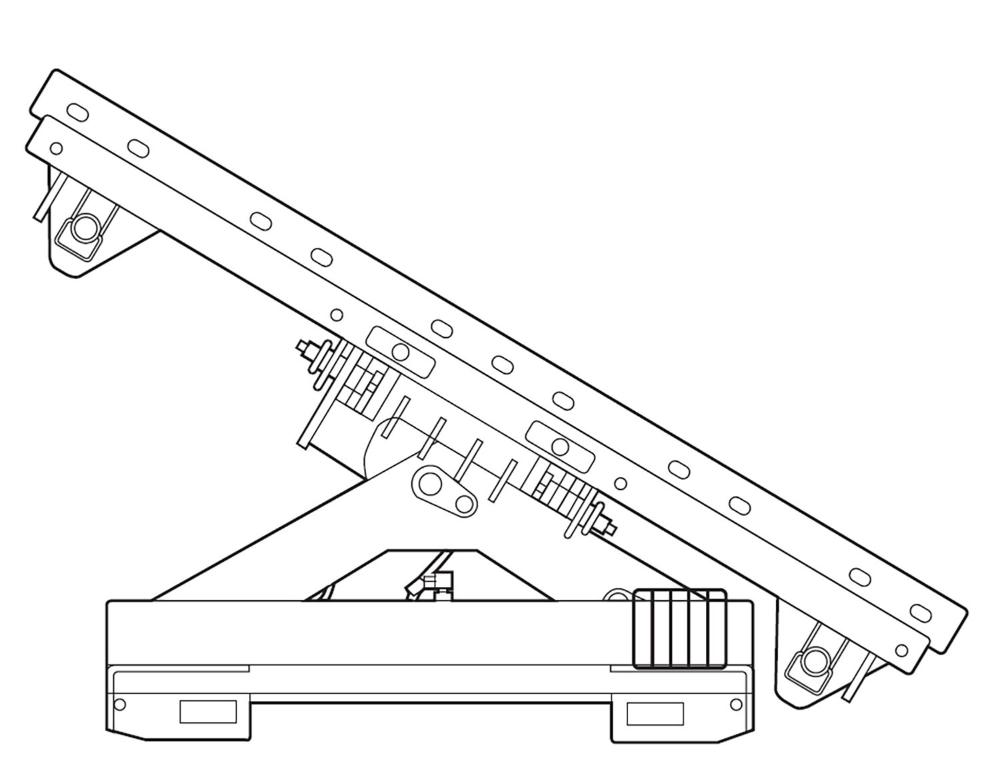

Angle Range

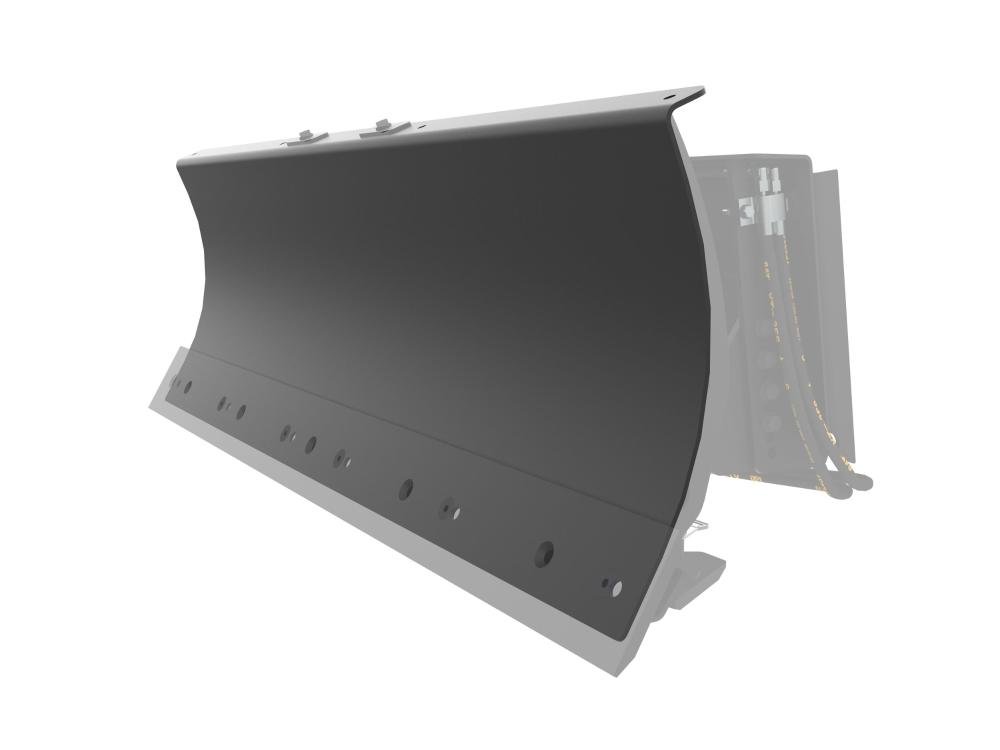

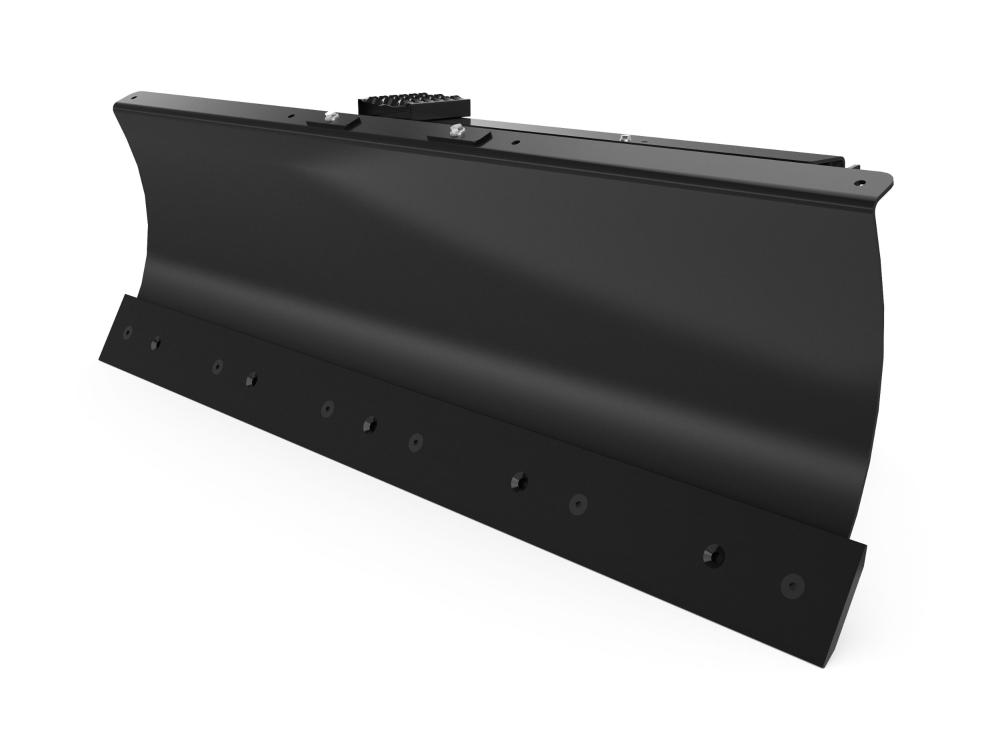

Curved Moldboard

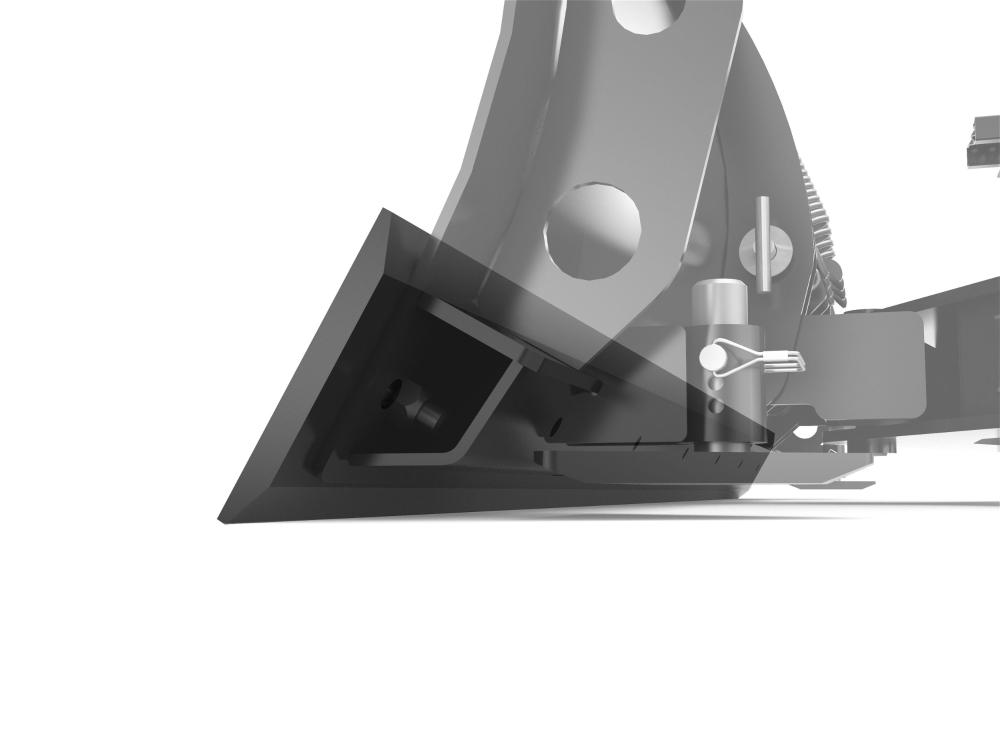

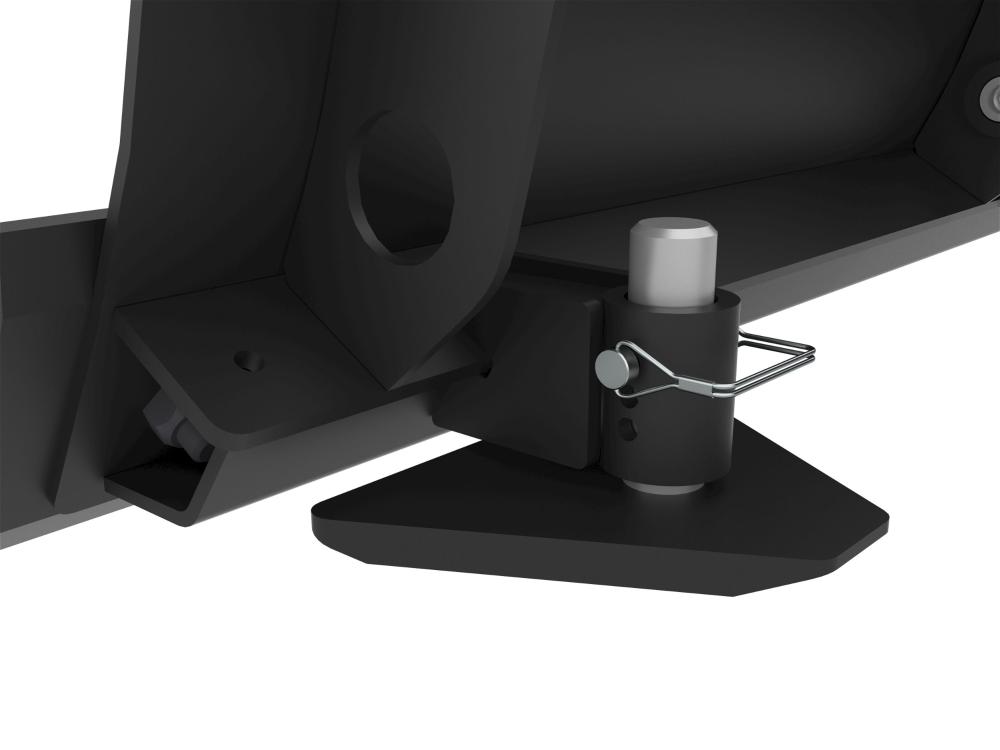

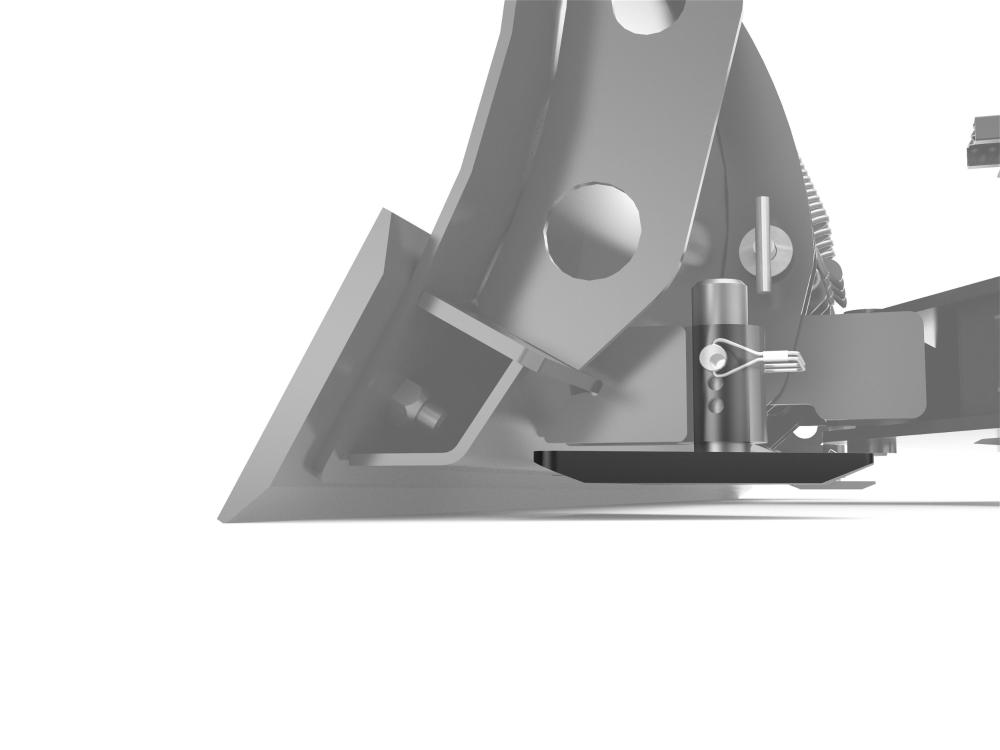

Adjustable Skid Shoes

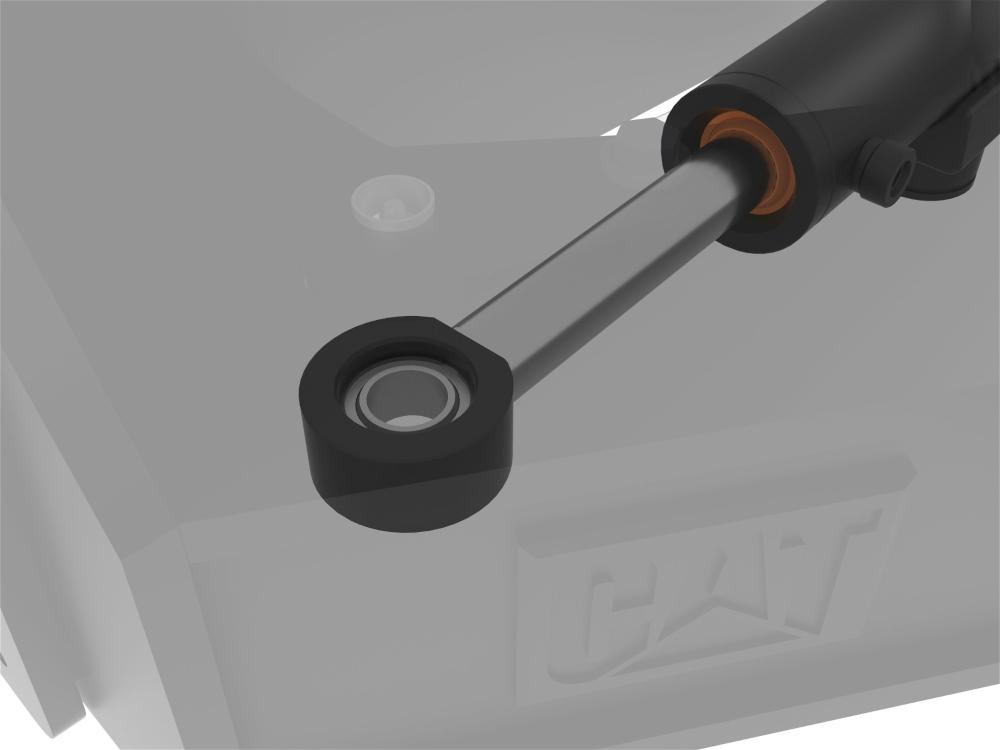

Spherical Rod Eye Cylinder

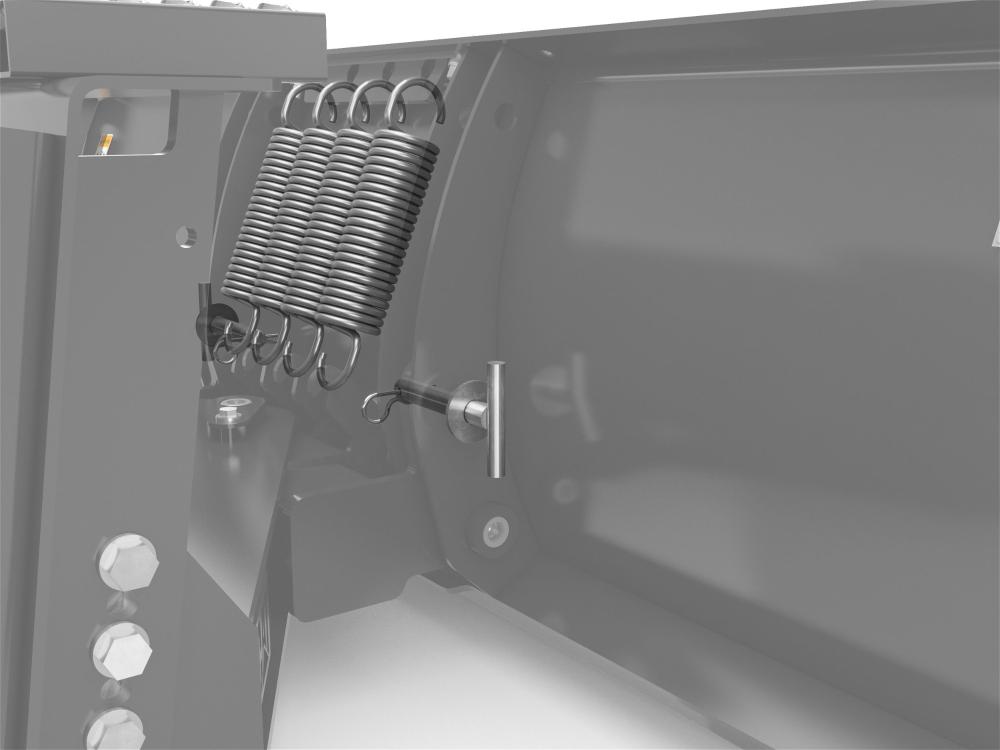

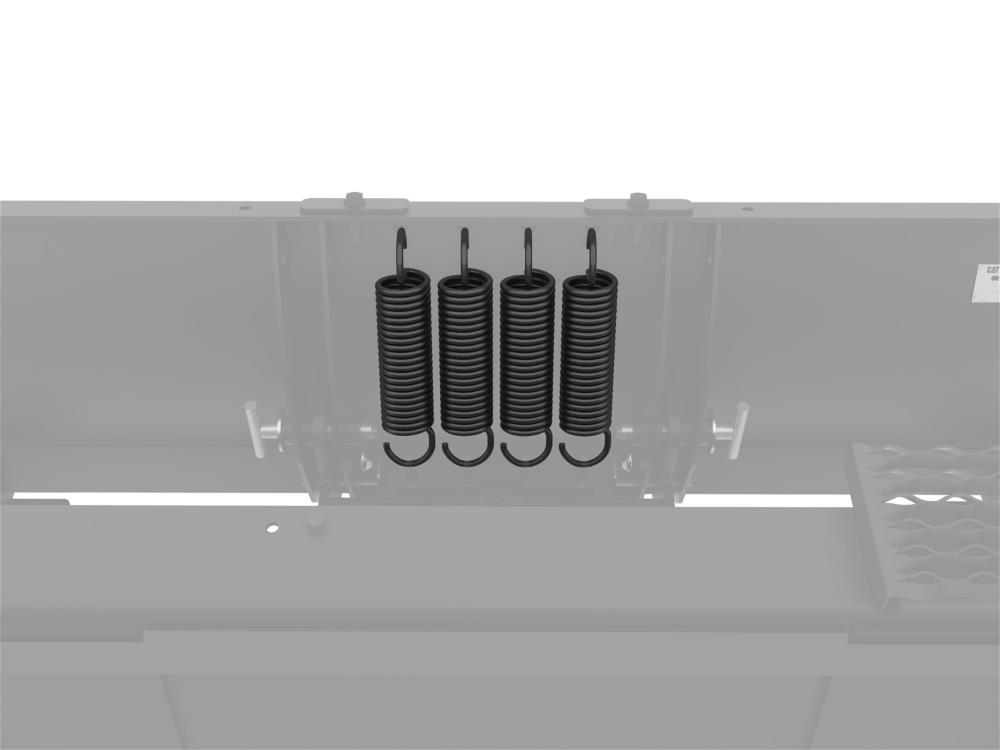

Four Pre-loaded Springs

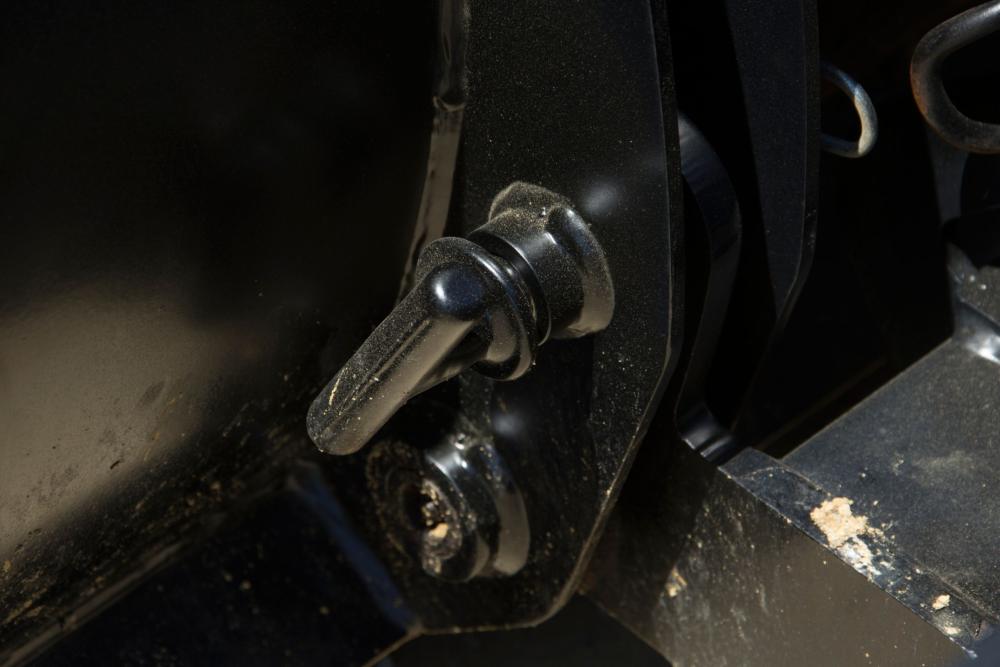

Adjustable Interface

Optional Snow Kit

Optional Non-Metallic Blade

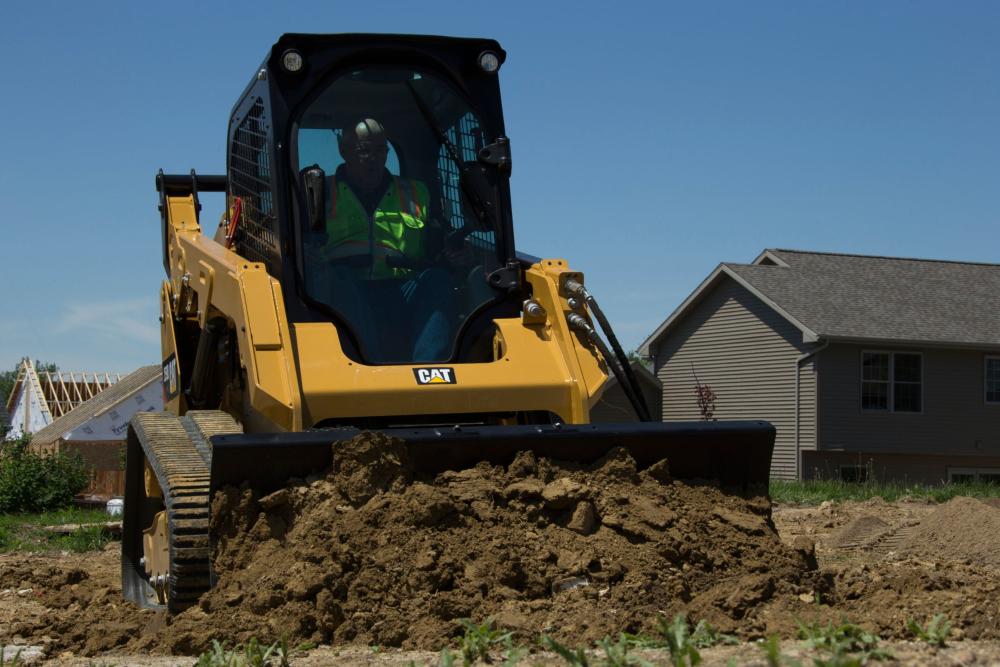

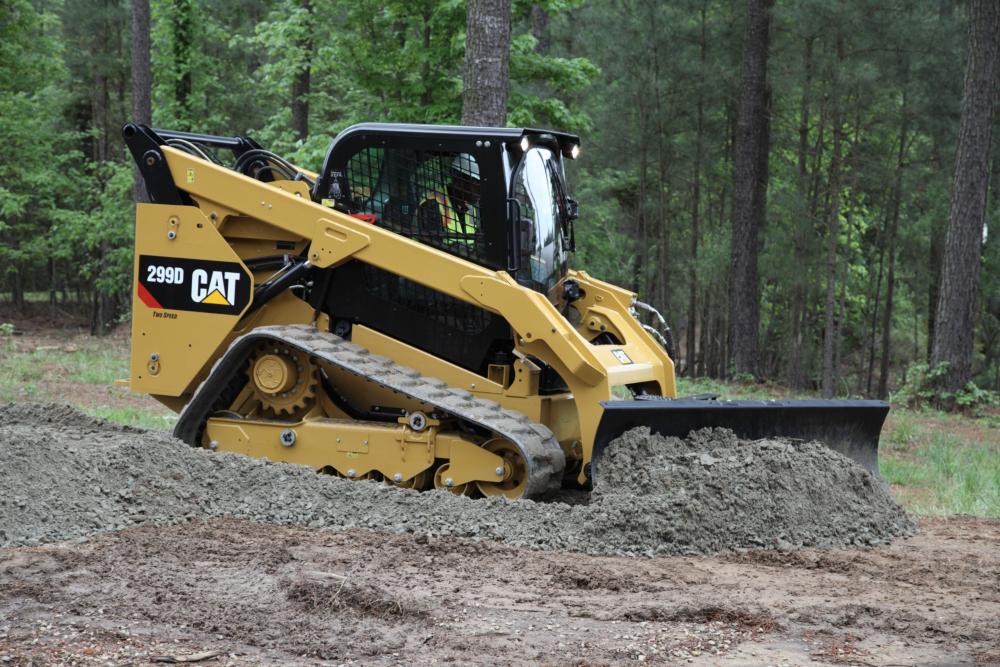

Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.

Cat® Blades for Compact Products Brochure.pdf

Others

Blade Width	1829 mm	72 in
Width - Fully Angled	1685 mm	66.3 in
Maximum Blade Angle - Right/Left of Center	30 degrees
Blade Height	614 mm	24.2 in
Cutting Edge Width	1893 mm	74.5 in
Length	753 mm	29.6 in
Weight	313 kg	690 lb
Cutting Edge Thickness	16 mm	0.6 in
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Required Hydraulics	Standard Flow
Interface Type	Skid Steer Coupler
