CVP75

Units of measurement :

Metric

Imperial

Impulse Force

74 kN

Cycles/Minimum

2200

Base Plate Width

737 mm

Availability

Purchase Rental Used

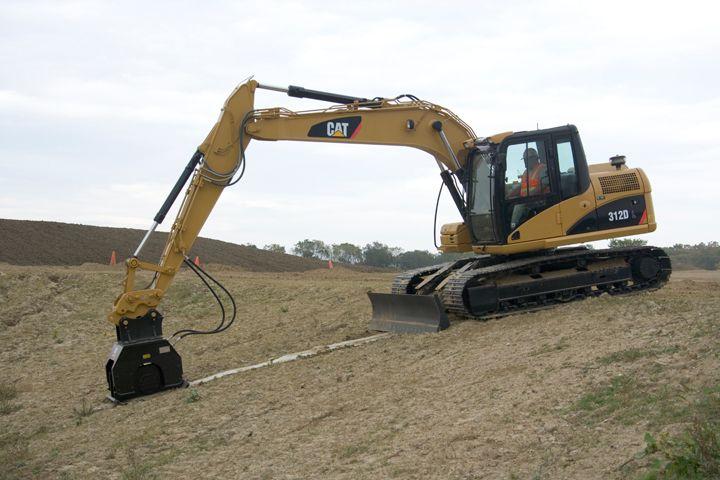

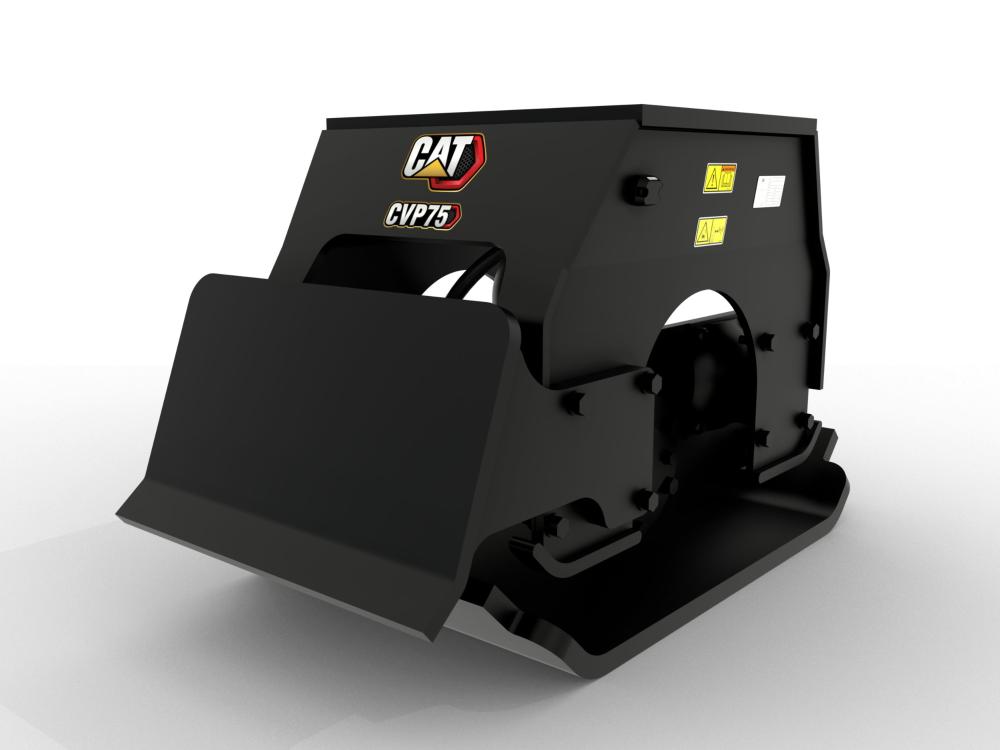

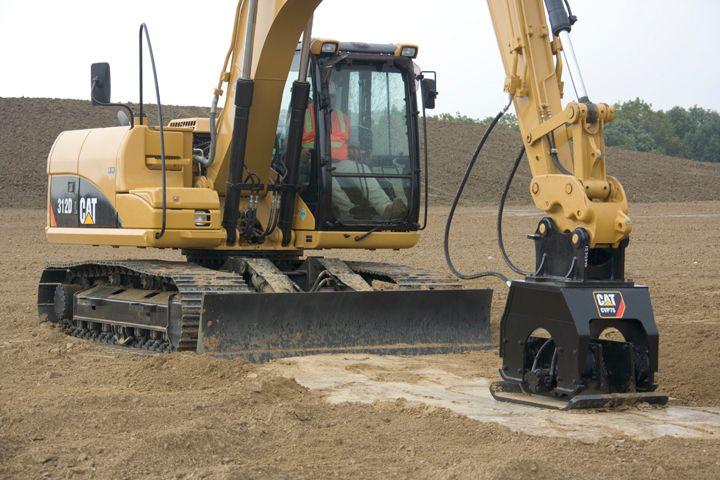

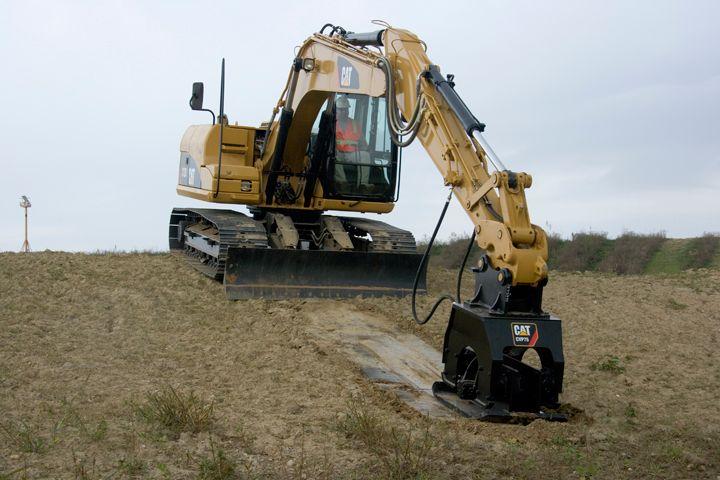

CVP75 Vibratory Plate Compactor - for 311-M318 HEX

Compactors Brochure.pdf

Others

Impulse Force	74 kN	16508 lb
Cycles/Minimum	2200
Base Plate Width	737 mm	29 in
Compaction Area	0.8 m²	8.6 ft²
Base Plate Pressure	91.91 kPa	13.33 psi
Base Plate Length	109 mm	43 in
Minimum Hydraulic Flow	106 l/min	28 gal/min
Minimum Operating Pressure	13790 kPa	2000 psi
Weight	801 kg	1765 lb
