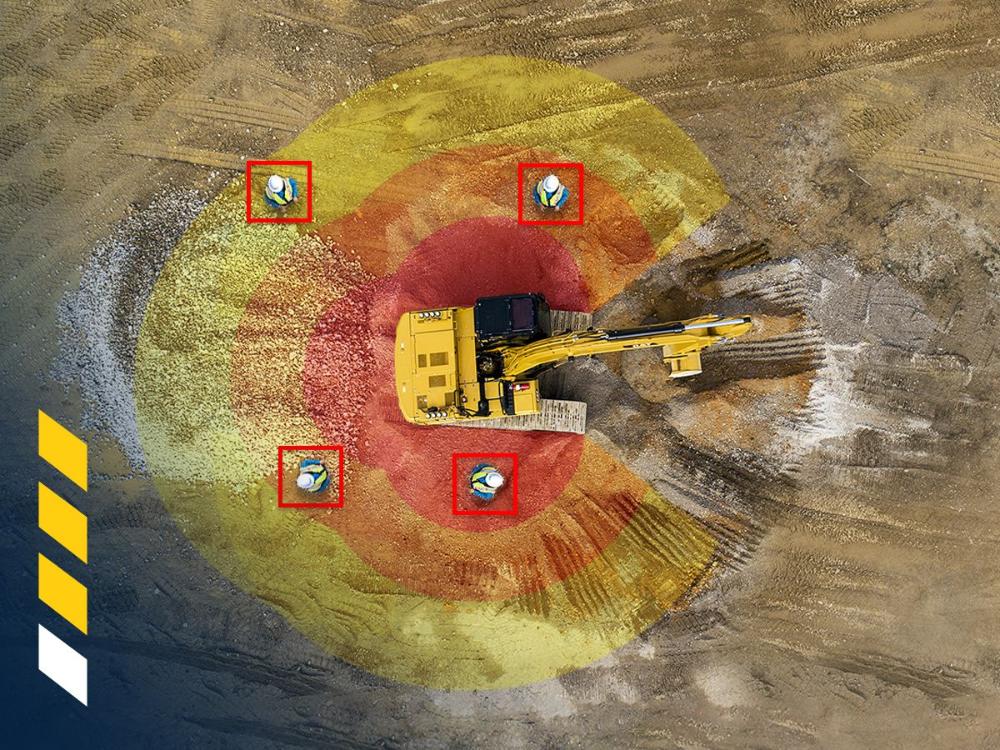

While machines are designed to maximize operator visibility, it can be challenging to constantly monitor what is going on around them. Cat® Detect - People Detection is an intelligent vision camera system that can alert an operator when someone enters within a machine\u2019s hazard zone.

Advantages

Features

Documents

IMPROVE JOBSITE SAFETY

Reduce the risk of injury for people working around machinery by detecting multiple moving and stationary workers on the jobsite.

INCREASE OPERATOR AWARENESS

Monitor ever changing jobsite conditions by providing progressive visual and audible safety alerts to the operator based on a person’s proximity to the machine.

ENHANCE MACHINE SAFETY

Expand machine safety distances for ground people with technology that detects individuals with up to 270 degrees of People Detection coverage, depending on the machine.

ENSURING A SAFE JOBSITE

PEOPLE DETECTION FOR EXCAVATORS

REAR PEOPLE DETECTION

IN-CAMERA MONITORING

OFF-CAMERA MONITORING

VISIONLINK™ INTEGRATION

HOW TO UPGRADE

Helps to reduce the risk of injury for people working around machinery.*
Differentiates people from background objects - detects multiple moving and stationary workers.
Provides visual and audible alerts to the operator using the in-cab display.
Utilizes the machine’s existing in-cab display and harness with a dealer-installed three-camera kit.
Designed to function without the need for additional technologies.
Complements other safety systems and improves operator safety awareness.

* The system may not detect people in certain circumstances, such as fast swings speeds, people lying down or crouching, or when cameras are impaired by low light conditions (dusk, dawn, overcast), inclement weather (snow, rain, fog), or other similar conditions. See operation and maintenance manual regarding limitations of use.

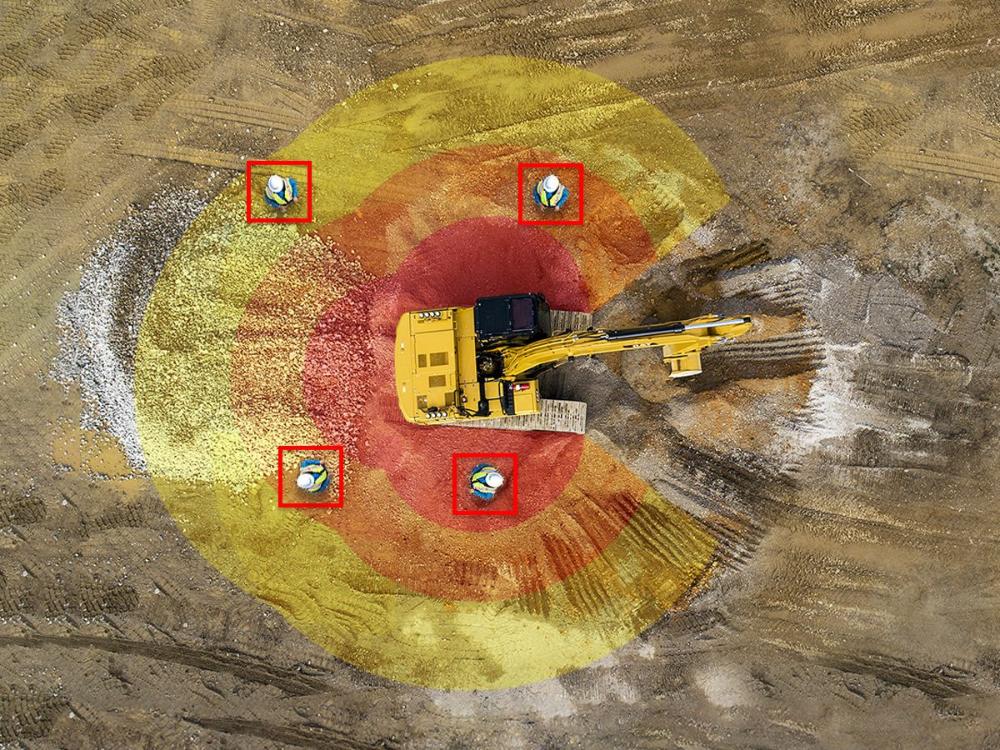

Continuously monitors for people within three detection zones around the excavator.

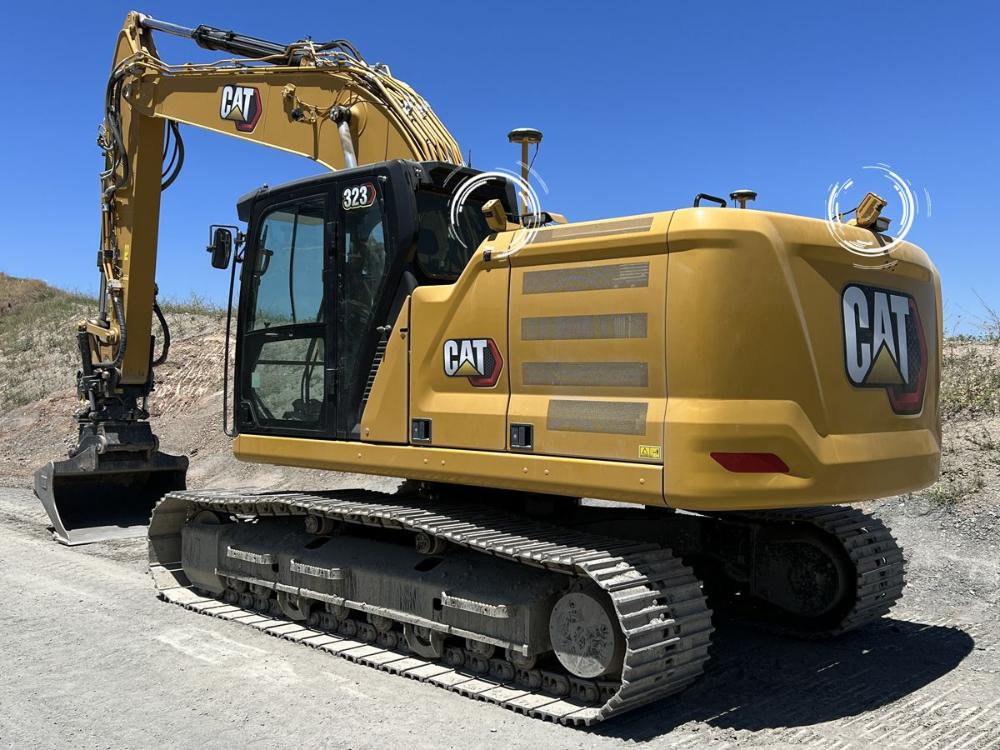

Utilizes three cameras with up to 270-degree coverage - 9 m (29.5 ft) maximum detection distance.*
Highlights people with red detection boxes on the in-cab display to help increase operator awareness.

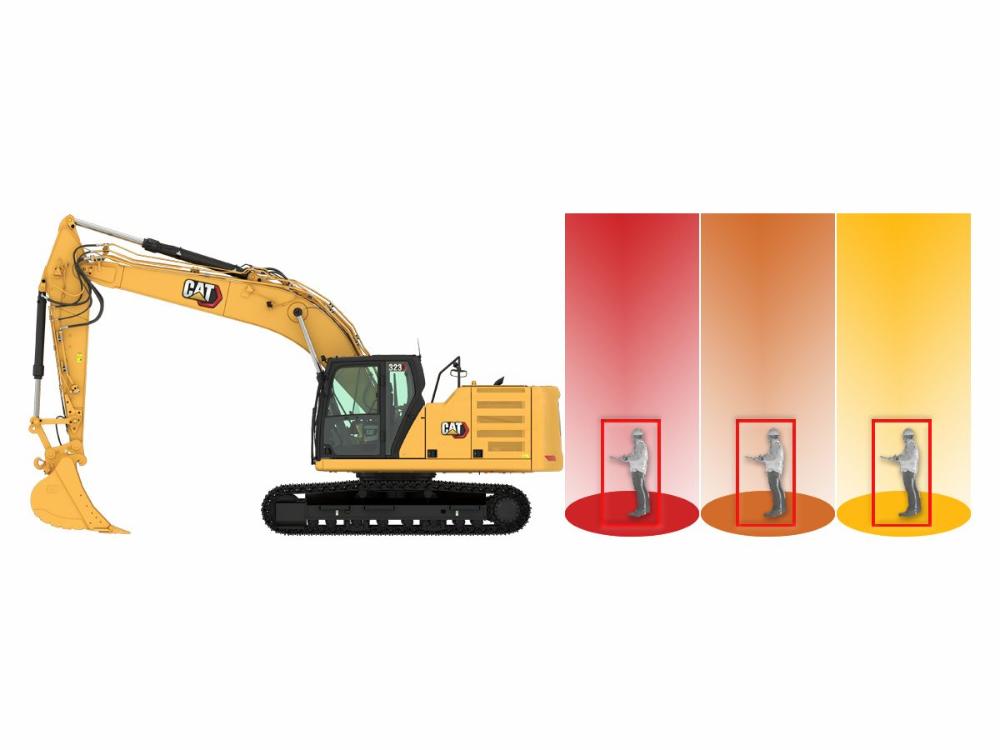

Triggers progressive visual and audible alerts based on a person’s proximity to the machine - three detection zones.
Detects multiple moving and stationary people simultaneously during machine travel and operation.
Provides both in-camera and off-camera monitoring.
Cat Detect - People Detection is not compatible with Cat Command remote control technologies.

* Detection distance is the approximate range from each camera.

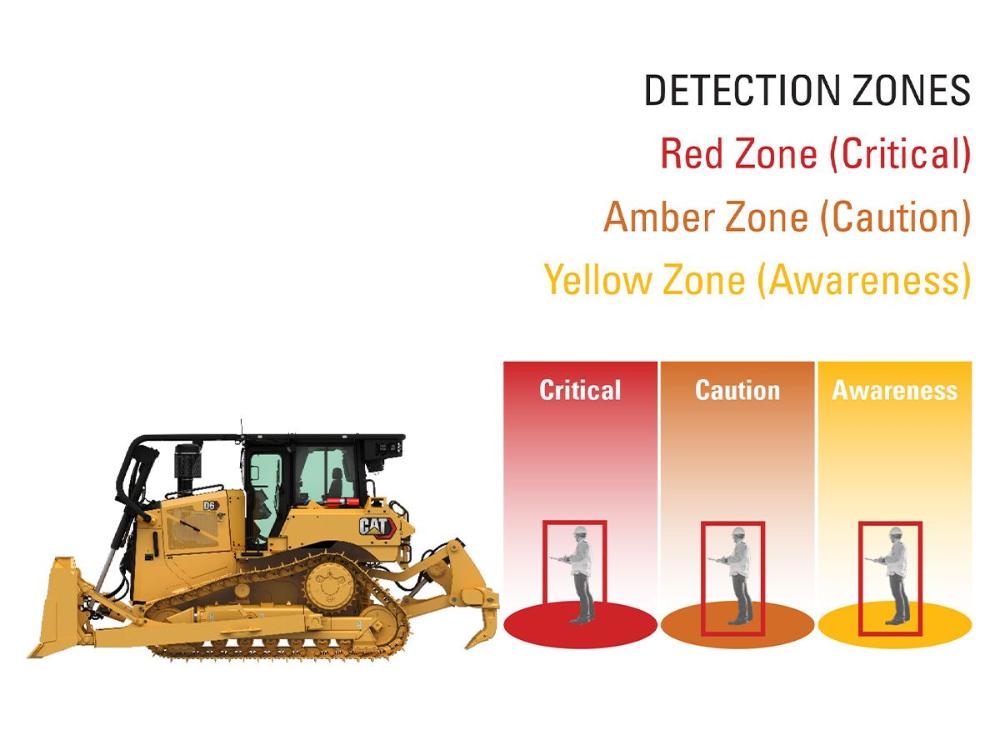

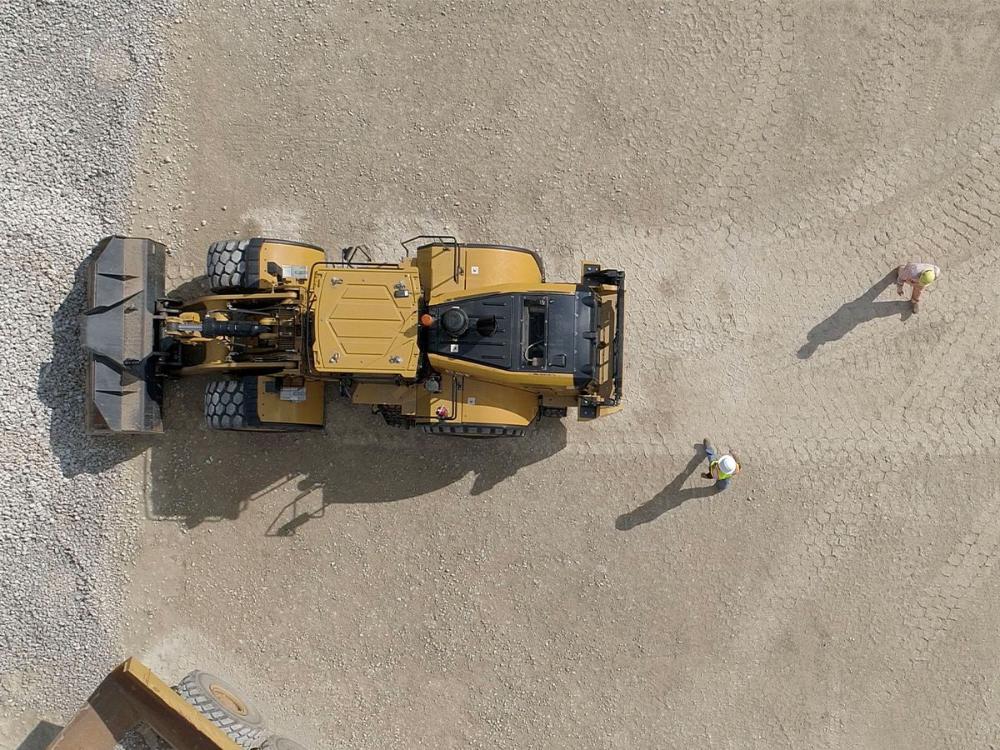

Rear People Detection is available for medium wheel loaders, motor graders, and dozers.
Continuously monitors for people within three detection zones behind the machine.
Utilizes one rear smart camera with up to 180-degree coverage - 16 m (52.5 ft) maximum detection distance.*
Highlights people with red detection boxes on the in-cab display to help increase operator awareness.
Triggers progressive visual and audible alerts based on a person’s proximity to the machine - three detection zones.
Detects multiple moving and stationary people simultaneously during machine travel and operation.
Provides both in-camera and off-camera monitoring.
Cat Detect - People Detection is not compatible with Cat Command remote control technologies.

* Detection distance is the approximate range from the rear camera.

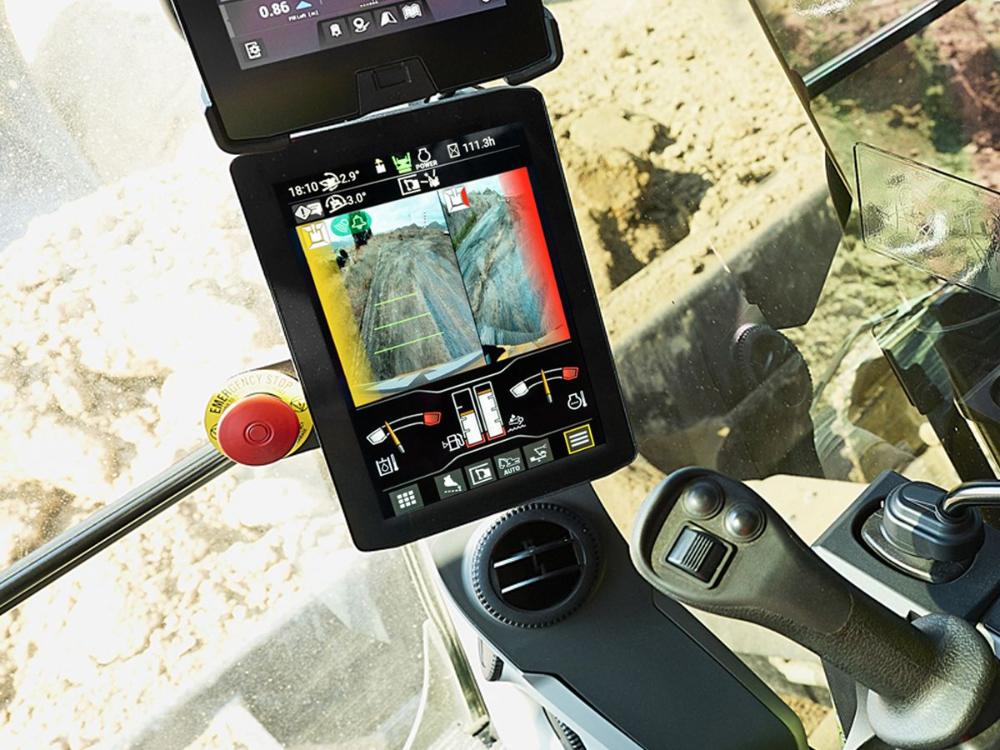

When people are detected near a hazard zone, and within direct camera view, a visual alert is shown on the in-cab display*, and an audible alarm is played (optional).
Audible Alert Icons - Illustrate if the People Detection system is active (standby/on/off), if an audible alarm is active (on/off), or if there is a system error causing People Detection not to function properly.
Visual Alert Icons - Directional icon alerts indicate both location and distance level when people are detected. Three color levels provide approximate proximity to the machine - red (critical), amber (caution), and yellow (awareness).
People Detection Indicator - A red boundary box surrounds people that have been detected within a hazard zone to help increase operator awareness.

When people are detected near a hazard zone but are not within direct camera view, a visual alert is shown on the in-cab display*, and an audible alarm is played (optional).
Audible Alert Icons - Communicate if the People Detection system is active (standby/on/off), if an audible alarm is active (on/off), or if there is a system error causing People Detection not to function properly.
Visual Alert Icons - Directional icon alerts indicate both location and distance level when people are detected. Three color levels provide approximate proximity to the machine - red (critical), amber (caution), and yellow (awareness).
Side Bar Indicators - Off-camera directional icon alerts indicate both location and distance level when people are detected. Three color levels provide approximate proximity to the machine - red (critical), amber (caution), and yellow (awareness).
People Detection Indicator - The red boundary box for people detection is not available in off-camera or 360-degree views.

When someone is detected within a critical red zone, an operator alert is triggered, and the event data is transmitted in real-time to VisionLink™.
This allows you to monitor detection frequency and identify opportunities to enhance safety training on the jobsite.
By staying informed, you can create a safer working environment and optimize your operations.

NOTE: VisionLink subscription and compatible Product Link hardware required. Availability may vary by region, consult your Cat Dealer for more details.

Contact your Cat dealer for more information and how to order Cat Detect - People Detection.
Model and technology availability may vary by region.
Cat Detect - People Detection complements but does not replace the basic safety precautions and procedures for machine operation.
Always follow recommended safety procedures when operating or working around equipment.
