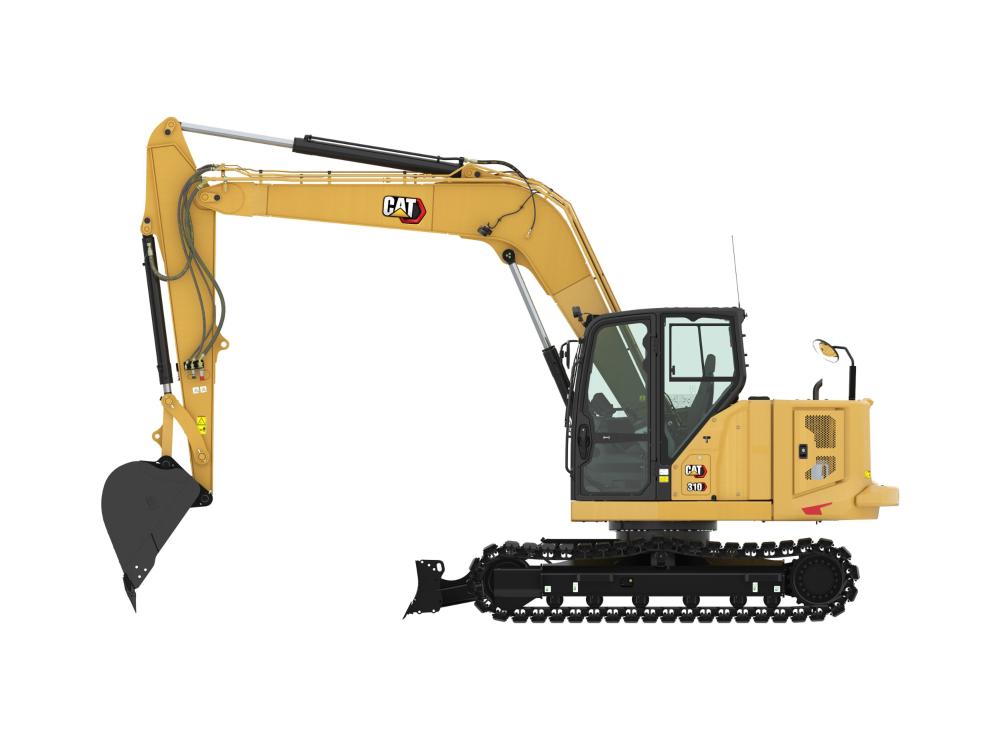

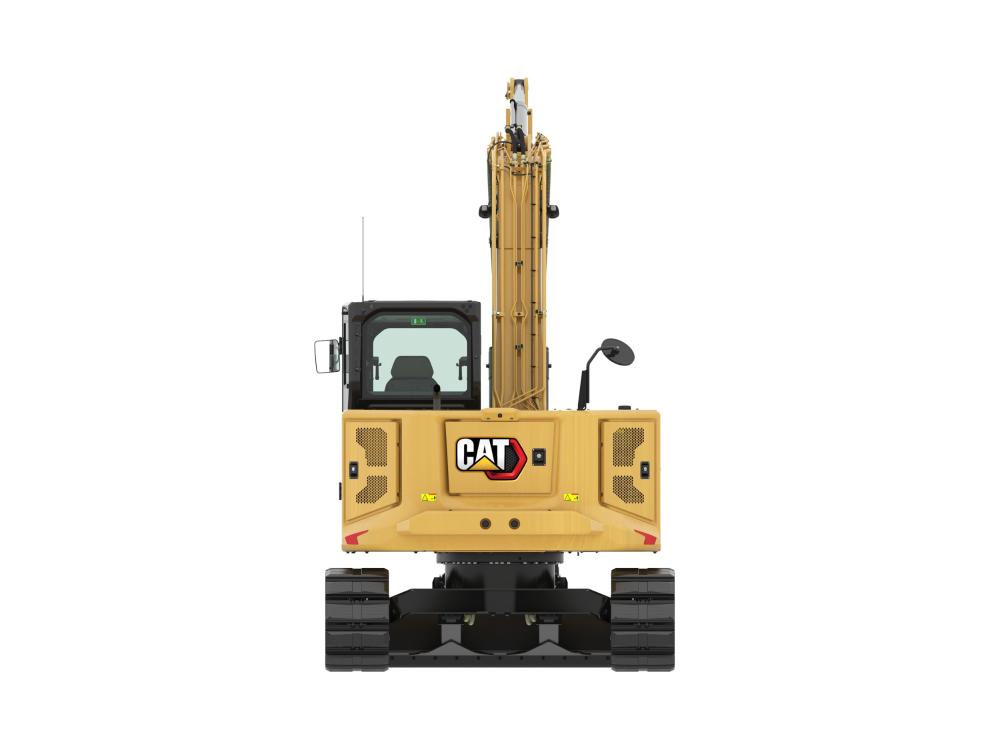

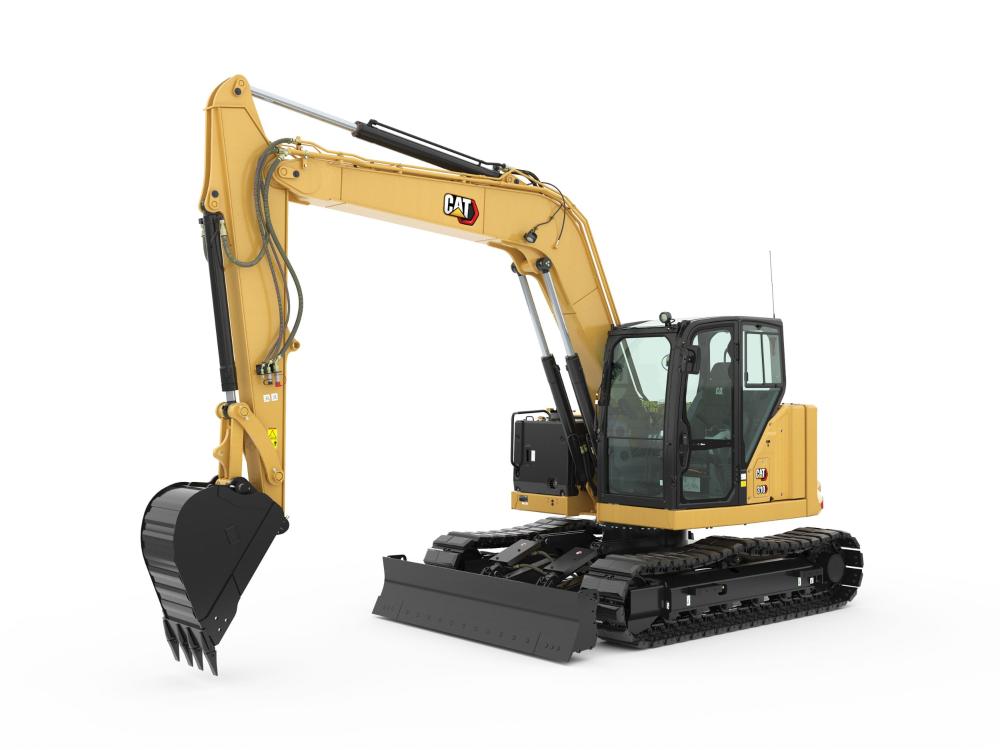

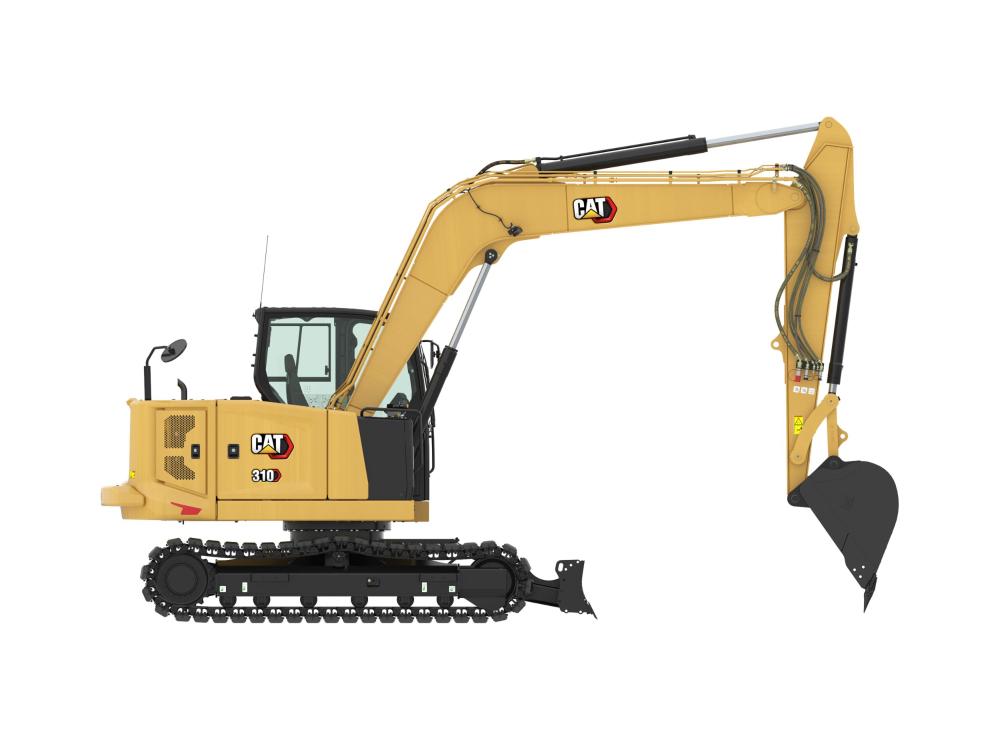

310 Mini Hydraulic Excavator
Caterpillar
https://www.finanzauto.es/productos/miniexcavadoras-caterpillar-miniexcavadora-hidraulica-310
Metric
Imperial
Net Power
51.8 kW
69.5 hp
Operating Weight
10432 kg
23002 lb
Dig Depth
5211 mm
205.2 in
Availability
The Cat® 310 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.
4 Industry First Features
Cat Exclusives in a Mini ExcavatorUp to 10% Lower Total Ownership Costs
with improved fuel efficiency and longer service intervalsUp to 20% More Performance
with customizable operator settings and improvements in lift, swing, travel and multifunctionALL DAY COMFORT
EASY TO OPERATE
STICK STEER TRAVEL MODE
BIG PERFORMANCE IN A MINI DESIGN
SAFETY ON THE JOB SITE
SIMPLE SERVICE FOR LESS DOWNTIME
LOWER OPERATING COSTS
UNMATCHED DEALER SUPPORT
SUSTAINABILITY

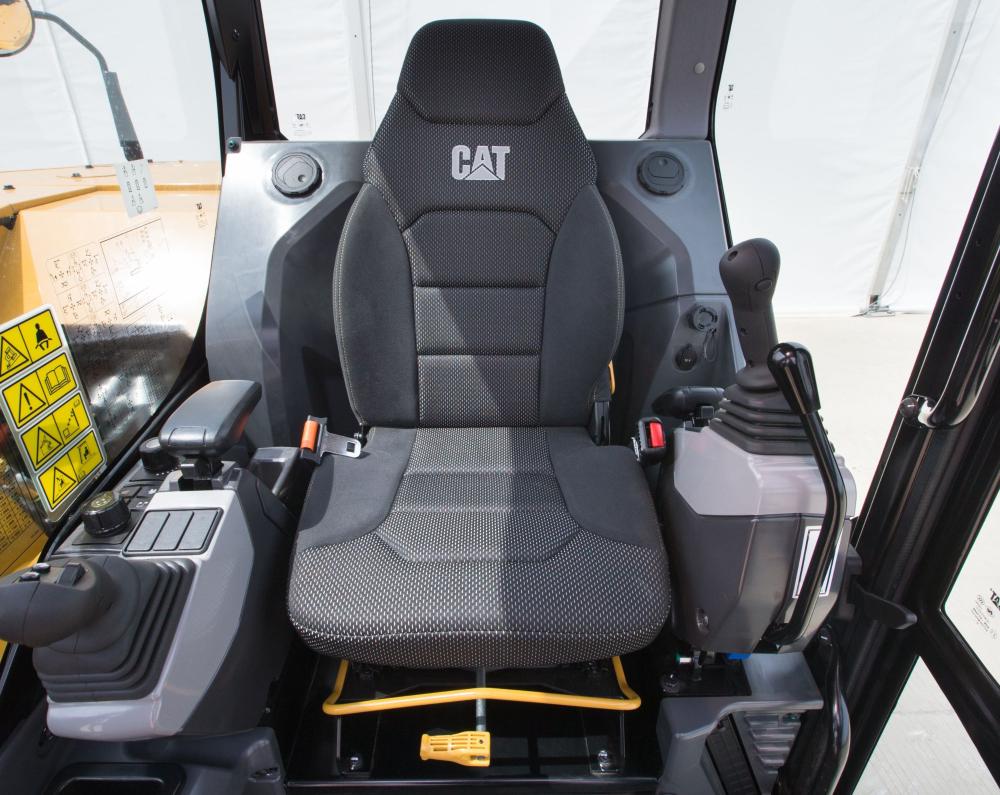

- A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

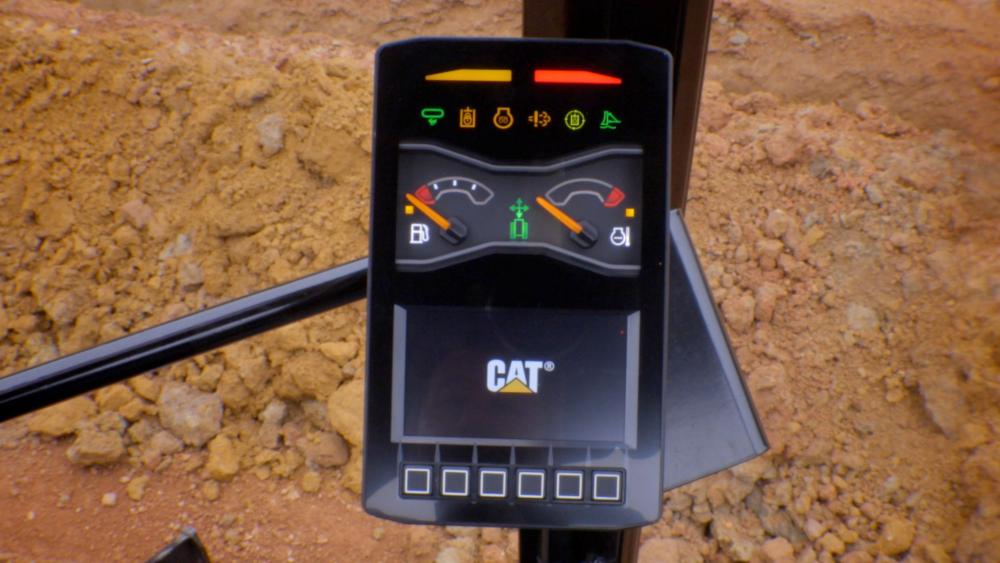

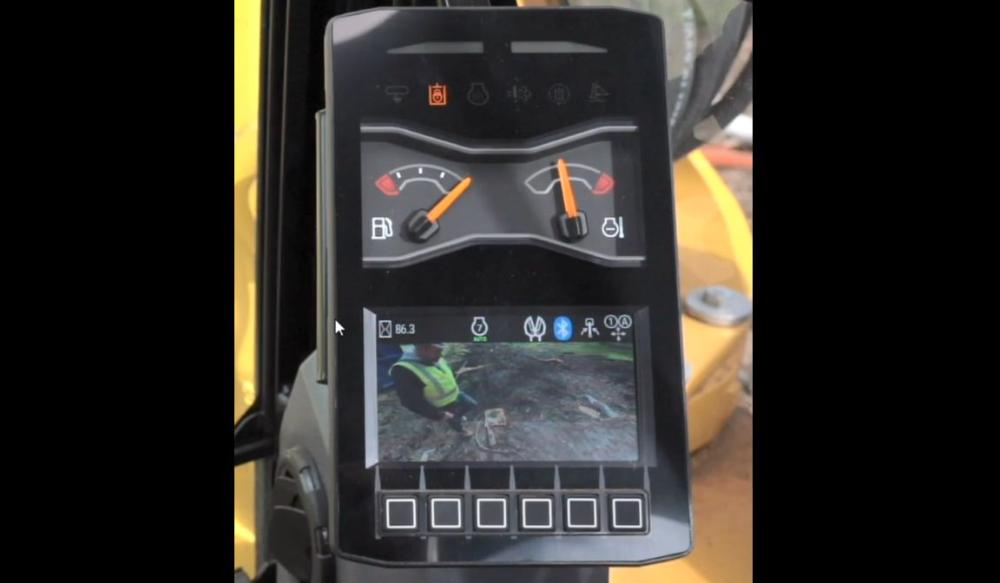

- Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

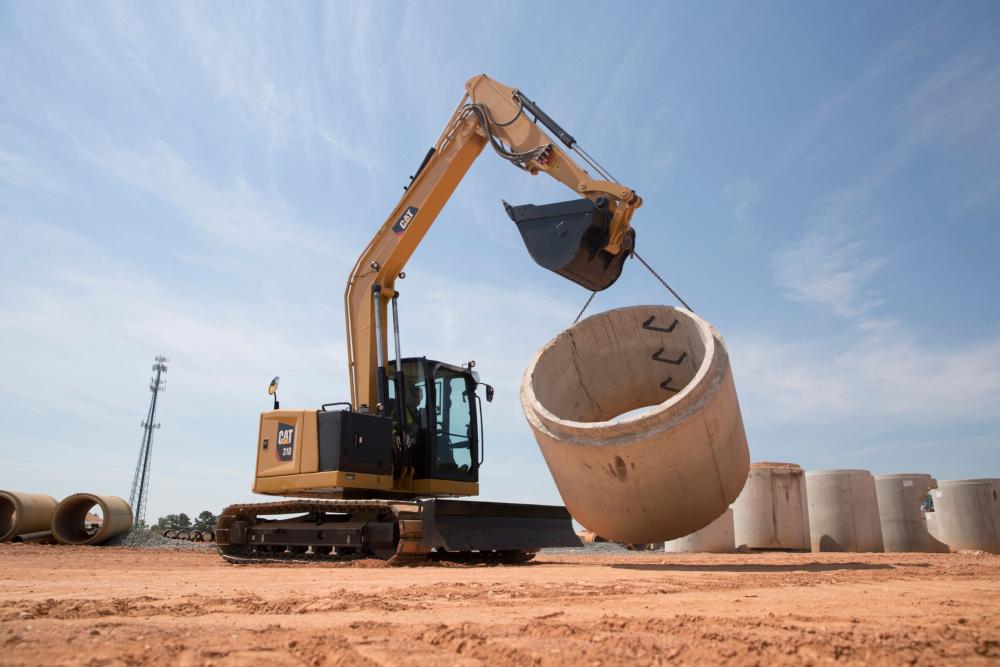

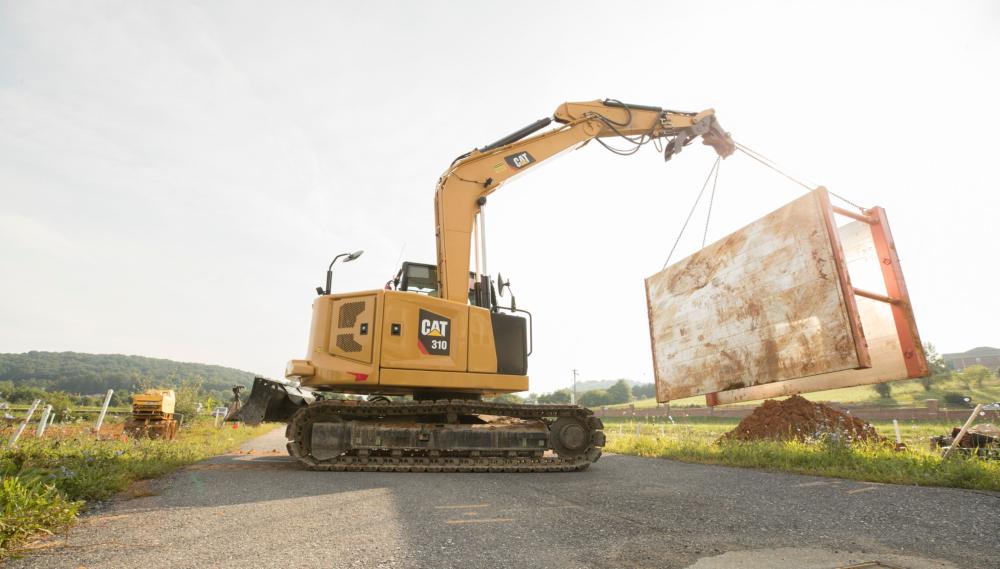

- Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy clean up.
- Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.

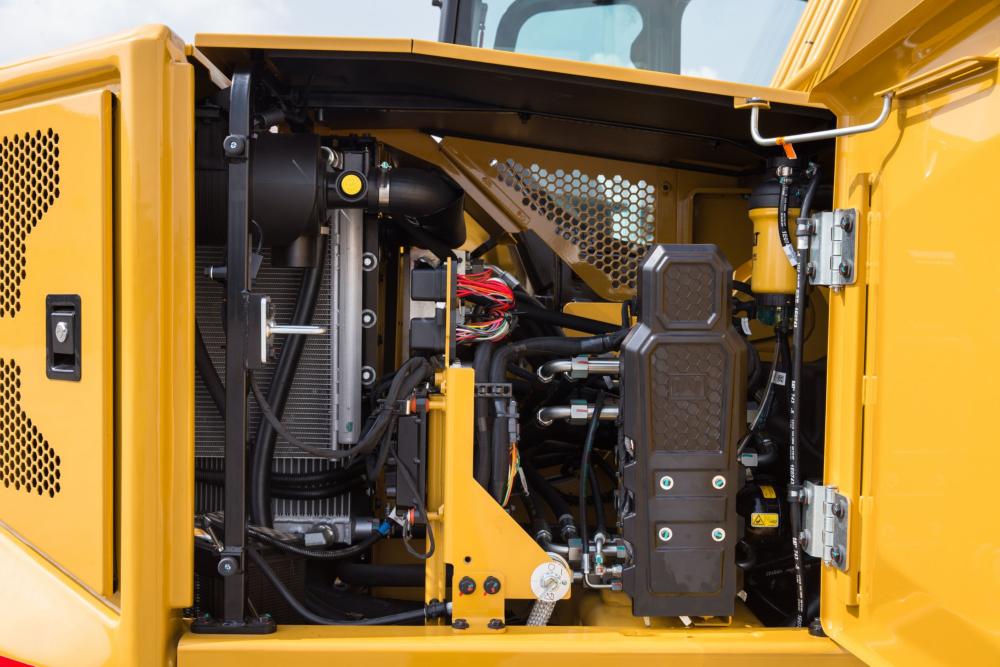

- Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.
- Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
- The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
- Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
Engine
| Net Power | 51.8 kW | 69.5 hp |
| Stroke | 120 mm | 4.7 in |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan. | |
| Bore | 94 mm | 3.7 in |
| Displacement | 3.33 l | 203 in³ |
| Gross Power - SAE J1995:2014 | 55.4 kW | 74.3 hp |
| Engine Model - U.S. EPA Tier 4 Final/EU Stage V | Cat® C3.3B | |
| Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC | 51.8 kW | 69.5 hp |
| Note 1 | Advertised power is tested per the specified standard in effect at the time of manufacture. |
Weights
| Operating Weight | 10432 kg | 23002 lb |
| Minimum Operating Weight with Cab* | 9601 kg | 21170 lb |
| Maximum Operating Weight with Cab** | 10432 kg | 23002 lb |
| Note (2) | **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. | |
| Note (1) | *Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket. |
Dimensions
| Dig Depth | 5211 mm | 205.2 in |
Blade
| Height | 431 mm | 17 in |
| Width - Standard | 2470 mm | 97.2 in |
| Width - Wide | 2640 mm | 103.9 in |
Weight Increase from Minimum Configuration
| Counterweight | 250 kg | 551 lb |
| Steel Tracks with Pads | 330 kg | 728 lb |
| Extra Counterweight | 500 kg | 1103 lb |
Travel System
| Maximum Traction Force - Low Speed | 84.8 kN | 19064 lb |
| Maximum Traction Force - High Speed | 28.9 kN | 6497 lb |
| Travel Speed - High | 4.7 km/h | 2.9 mile/h |
| Travel Speed - Low | 2.6 km/h | 1.6 mile/h |
| Ground Pressure - Maximum Weight | 40.5 kPa | 5.9 psi |
| Ground Pressure - Minimum Weight | 37.2 kPa | 5.4 psi |
| Gradeability - Maximum | 30 degrees |
Service Refill Capacities
| Hydraulic Tank | 53 l | 14 gal (US) |
| Cooling System | 10 l | 2.6 gal (US) |
| Engine Oil | 11.2 l | 3 gal (US) |
| Fuel Tank | 145 l | 38 gal (US) |
| Hydraulic System | 140 l | 37 gal (US) |
Hydraulic System
| Operating Pressure - Swing | 230 bar | 3336 psi |
| Digging Force - Bucket | 77.7 kN | 17459 lb |
| Operating Pressure - Travel | 285 bar | 4134 psi |
| Operating Pressure - Equipment | 285 bar | 4134 psi |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. | |
| Digging Force - Stick | 49.2 kN | 11060 lb |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump | |
| Pump Flow at 2,400 rpm | 233 l/min | 62 gal/min |
| Maximum Auxiliary Circuit - Secondary - Flow at Pump | 33 l/min | 9 gal/min |
| Maximum Auxiliary Circuit - Primary - Pressure at Pump | 285 bar | 4134 psi |
| Maximum Auxiliary Circuit - Secondary - Pressure at Pump | 285 bar | 4134 psi |
| Maximum Auxiliary Circuit - Primary - Flow at Pump | 131 l/min | 35 gal/min |
Swing System
| Machine Swing Speed | 10.6 r/min | 10.6 r/min |
Certification - Cab
| Top Guard | ISO 10262:1998 (Level I) |
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
Sound
| Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) | 99 dB(A) |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
| Note | European Union Directive "2000/14/EC" |
Dimensions - Standard Stick
| Tail Swing without Counterweight | 1800 mm | 70.9 in |
| Stick Length | 2500 mm | 98.4 in |
| Boom In Reach | 2116 mm | 83.3 in |
| Maximum Reach | 7695 mm | 303 in |
| Dig Depth | 5211 mm | 205.2 in |
| Ground Clearance - Frame | 356 mm | 14 in |
| O/A Track Width | 2470 mm | 97.2 in |
| Cab Height | 2541 mm | 100 in |
| Track Belt/Shoe Width | 450 mm | 17.7 in |
| Maximum Blade Depth | 478 mm | 18.8 in |
| Maximum Dump Clearance | 5829 mm | 229.5 in |
| Maximum Dig Height | 7970 mm | 313.8 in |
| Maximum Blade Height | 421 mm | 16.6 in |
| Tail Swing - Standard Counterweight | 1933 mm | 76.1 in |
| O/A Undercarriage Length | 3200 mm | 126 in |
| Vertical Wall | 4385 mm | 172.6 in |
| Swing Bearing - Height | 735 mm | 28.9 in |
| Maximum Reach - Ground Level | 7570 mm | 298 in |
| Overall Shipping Length - with Counterweight | 6983 mm | 274.9 in |
| Note (2) | **Boom Height when stick is pinned in working position with attachments. | |
| Note (1) | *Boom Height when stick is pinned in transport position (if available) with no attachments. | |
| Overall Shipping Length - without Counterweight | 6850 mm | 269.7 in |
| Height - Boom Transport - No Tools* | 2550 mm | 100.4 in |
| Height - Boom Working - With Tools** | 2700 mm | 106.3 in |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
Sustainability
| Recyclability | 96% |
You might also be interested in:
-
300.9D
Net Power
9.6 kW
13 hp
Operating Weight
935 kg
2061 lb
Dig Depth
1731 mm
68 in
Caterpillar
15699515
-
300.9D VPS & HPU300
Net Power
9.7 kW
13 hp
Operating Weight
1088 kg
2399 lb
Dig Depth
1731 mm
68 in
Caterpillar
15699534
-
301.5
Net Power
15.7 kW
21 hp
Operating Weight
1775 kg
3913 lb
Dig Depth
2540 mm
100 in
Caterpillar
15195767
-
301.6
Net Power
15.7 kW
21 hp
Operating Weight
1958 kg
4317 lb
Dig Depth
2540 mm
100 in
Caterpillar
15195795
-
301.7 CR
Net Power
15.7 kW
21 hp
Operating Weight
1915 kg
4222 lb
Dig Depth
2540 mm
100 in
Caterpillar
15195813
-
301.8
Net Power
15.7 kW
21 hp
Operating Weight
2029 kg
4473 lb
Dig Depth
2570 mm
101.2 in
Caterpillar
15195920
-
302.7 CR
Net Power
17.6 kW
23.6 hp
Operating Weight
3050 kg
6725 lb
Dig Depth
2710 mm
106.7 in
Caterpillar
15195971
-
302 CR
Net Power
15.7 kW
21 hp
Operating Weight
2262 kg
4987 lb
Dig Depth
2570 mm
101.2 in
Caterpillar
15195945
-
303.5 CR
Net Power
17.6 kW
23.6 hp
Operating Weight
4190 kg
9239 lb
Dig Depth
3110 mm
122.4 in
Caterpillar
15196027
-
303 CR
Net Power
17.6 kW
23.6 hp
Operating Weight
3545 kg
7817 lb
Dig Depth
2950 mm
116.1 in
Caterpillar
15195999
-
304
Net Power
33.6 kW
45 hp
Operating Weight
4475 kg
9867 lb
Dig Depth
3510 mm
138.2 in
Caterpillar
15196054
-
305 CR
Net Power
33.6 kW
45 hp
Operating Weight
5754 kg
12688 lb
Dig Depth
3670 mm
144.5 in
Caterpillar
15196081
-
306 CR
Net Power
41.7 kW
55.9 hp
Operating Weight
7150 kg
15766 lb
Dig Depth
4110 mm
162 in
Caterpillar
15196107
-
306 CR VAB
Net Power
41.7 kW
55.9 hp
Operating Weight
7150 kg
15766 lb
Dig Depth
2975 mm
117.1 in
Cat
15699596
-
308 CR
Net Power
51.8 kW
69.5 hp
Operating Weight
8387 kg
18493 lb
Dig Depth
4643 mm
182.8 in
Caterpillar
15196157
-
308 CR VAB
Net Power
51.8 kW
69.5 hp
Operating Weight
9245 kg
20385 lb
Dig Depth
3815 mm
150.2 in
Caterpillar
15196186
-
309 CR
Net Power
51.8 kW
69.5 hp
Operating Weight
9565 kg
21091 lb
Dig Depth
4642 mm
182.8 in
Caterpillar
15196205
-
309 CR VAB (Long Undercarriage)
Net Power
51.8 kW
69.5 hp
Operating Weight
9740 kg
21477 lb
Dig Depth
3815 mm
150.2 in
Caterpillar
15196307
Compatible products:
-
457 mm (18 in) 6 Teeth/2 Tines
Length
1259 mm
49.6 in
Stored Height
472 mm
18.6 in
Overall Width
457 mm
18 in
Cat
15185130
-
457 mm (18 in) 6 Teeth/2 Tines
Length
1259 mm
49.6 in
Stored Height
472 mm
18.6 in
Overall Width
457 mm
18 in
Cat
15185130
-
457 mm (18 in) 6 Teeth/2 Tines
Length
1259 mm
49.6 in
Stored Height
472 mm
18.6 in
Overall Width
457 mm
18 in
Cat
15185130
-
457 mm (18 in) 6 Teeth/2 Tines
Length
1259 mm
49.6 in
Stored Height
472 mm
18.6 in
Overall Width
457 mm
18 in
Cat
15185130
-
457 mm (18 in) 6 Teeth/2 Tines
Length
1259 mm
49.6 in
Stored Height
472 mm
18.6 in
Overall Width
457 mm
18 in
Cat
15185130
-
950 mm (37 in), 10 Ton Mini Excavators, 450 Backhoe Loaders
Shank Length
950 mm
37.4 in
Weight
169 kg
372.6 lb
Overall Length
795 mm
31.3 in
Cat
16605414
-
B9s
Operating Weight - With Tool
518 kg
1142 lb
Energy Class
1300 J
958.8 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181790
-
G308
Grapple Area
240 l
8.5 ft³
Weight
492 kg
1084.7 lb
Machine Class
7-10 Ton Mini Excavators
Cat
15682284
-
G308
Grapple Area
240 l
8.5 ft³
Weight
492 kg
1084.7 lb
Machine Class
7-10 Ton Mini Excavators
Cat
15682284
-
H95s
Operating Weight - With Tool
627 kg
1382.3 lb
Energy Class
2034 J
1500.2 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181895
-
H95s
Operating Weight - With Tool
627 kg
1382.3 lb
Energy Class
2034 J
1500.2 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181895
-
H95s
Operating Weight - With Tool
627 kg
1382.3 lb
Energy Class
2034 J
1500.2 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181895
-
H95s
Operating Weight - With Tool
627 kg
1382.3 lb
Energy Class
2034 J
1500.2 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181895
-
H95s
Operating Weight - With Tool
627 kg
1382.3 lb
Energy Class
2034 J
1500.2 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181895
-
H95s
Operating Weight - With Tool
627 kg
1382.3 lb
Energy Class
2034 J
1500.2 ft·lbf
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Cat
15181895
-
HM208
Overall Width
1026 mm
40.4 in
Working Width
818 mm
32.2 in
Length
714 mm
28.1 in
Cat
15182303
-
HM210
Overall Width
1226 mm
48.3 in
Working Width
1012 mm
39.8 in
Length
714 mm
28.1 in
Cat
15182325
-
HM210
Overall Width
1226 mm
48.3 in
Working Width
1012 mm
39.8 in
Length
714 mm
28.1 in
Cat
15182325
-
HM210
Overall Width
1226 mm
48.3 in
Working Width
1012 mm
39.8 in
Length
714 mm
28.1 in
Cat
15182325
-
HM210
Overall Width
1226 mm
48.3 in
Working Width
1012 mm
39.8 in
Length
714 mm
28.1 in
Cat
15182325
Other categories of Excavadoras:
360º Interior
360º Exterior
Virtual Tour

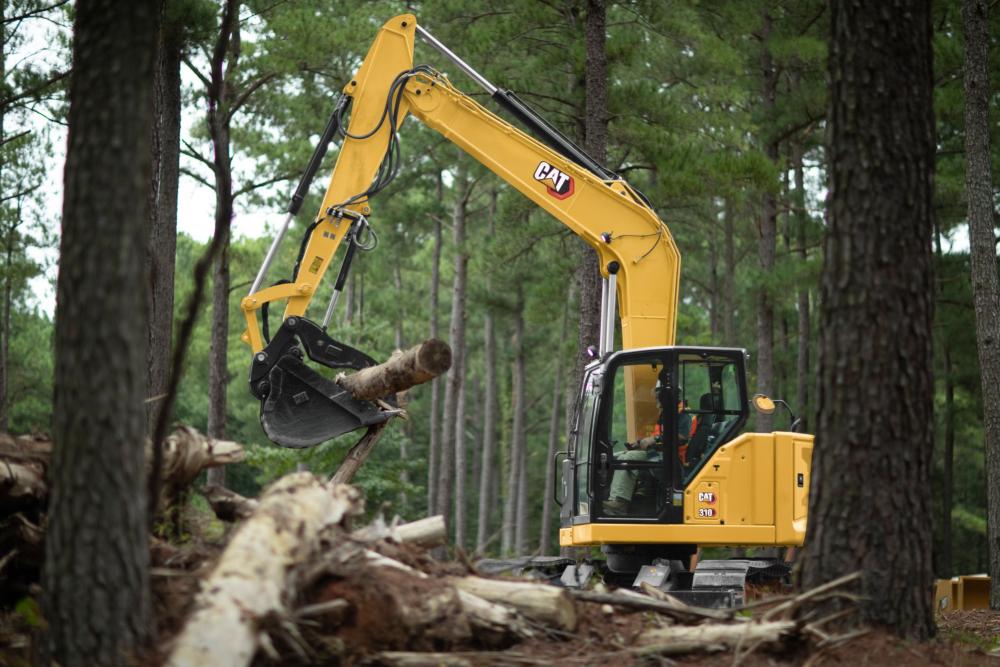

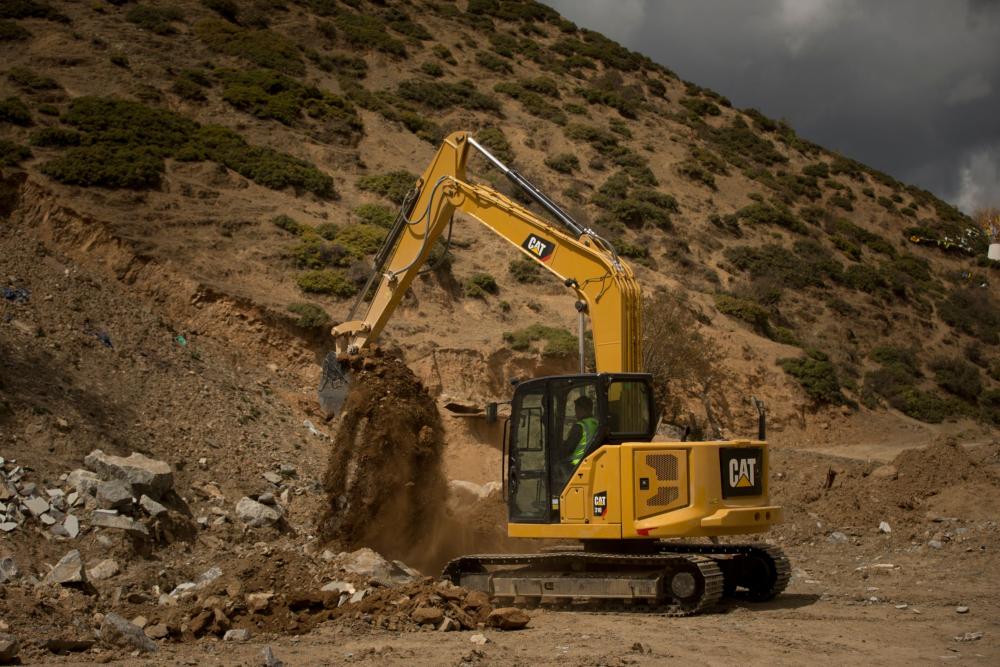

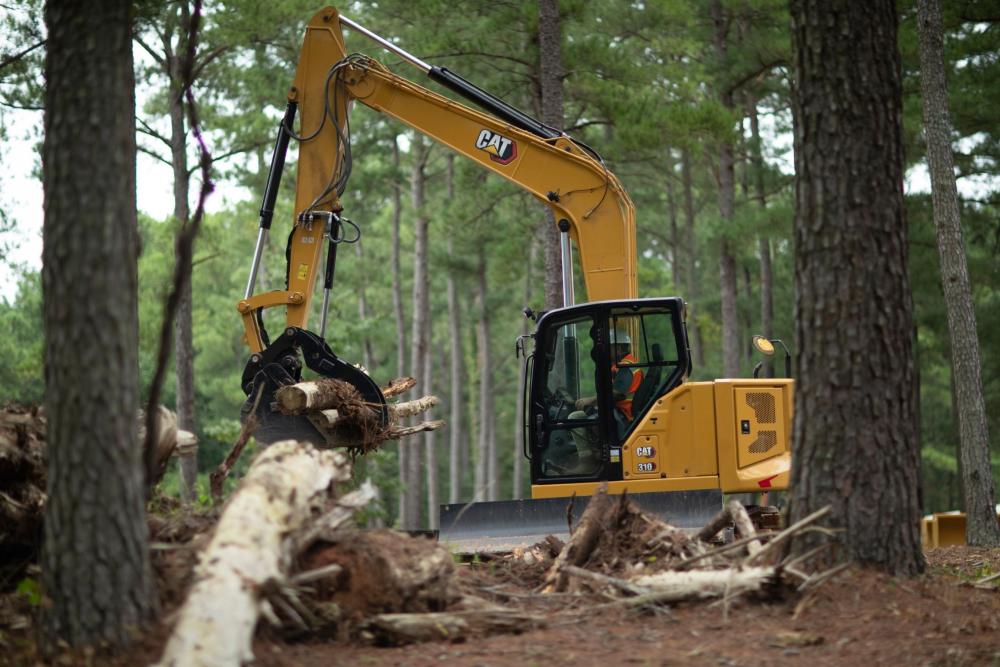

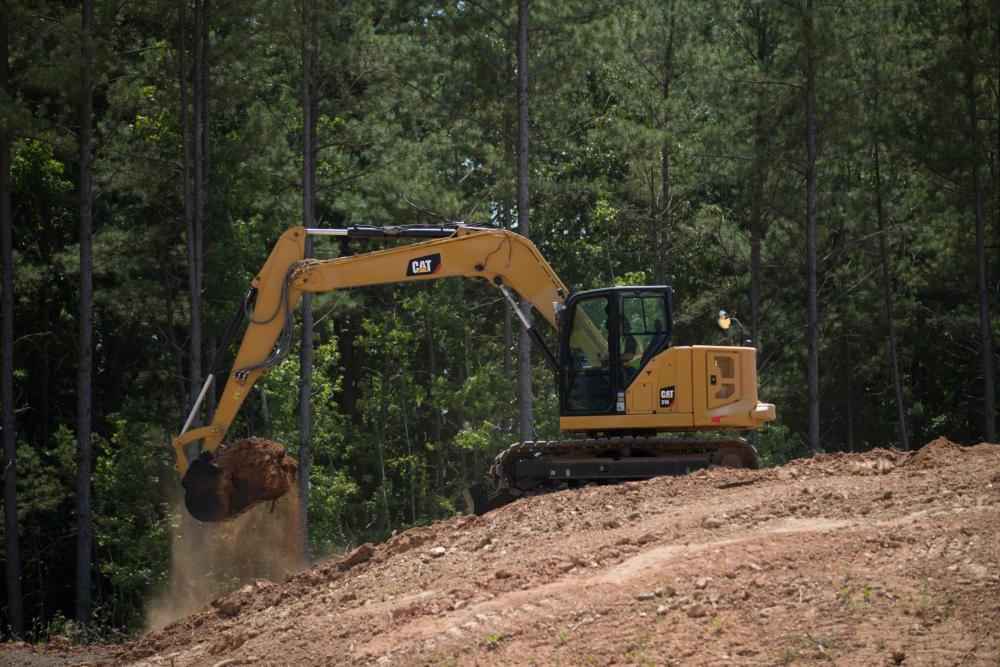

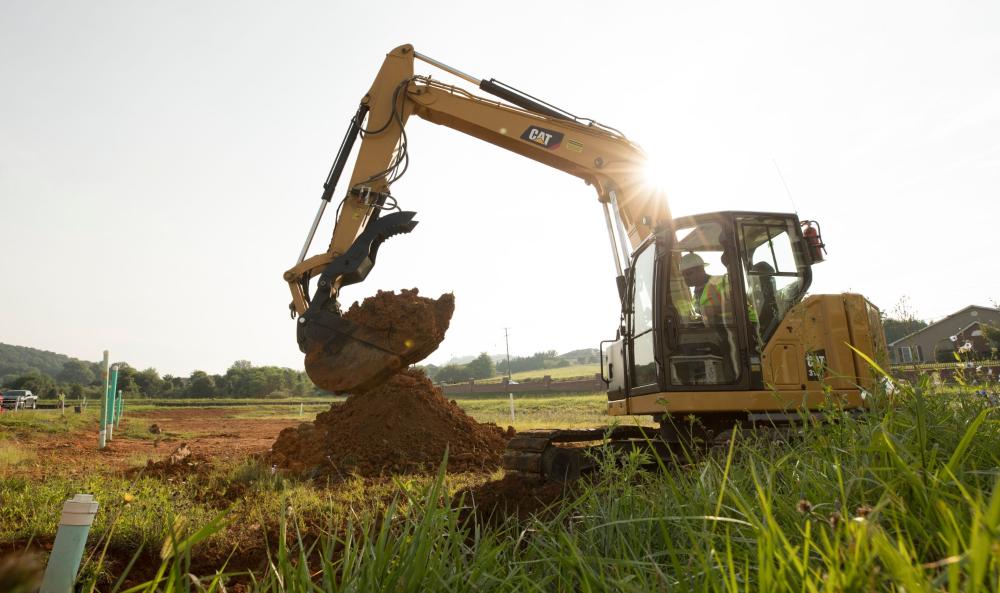

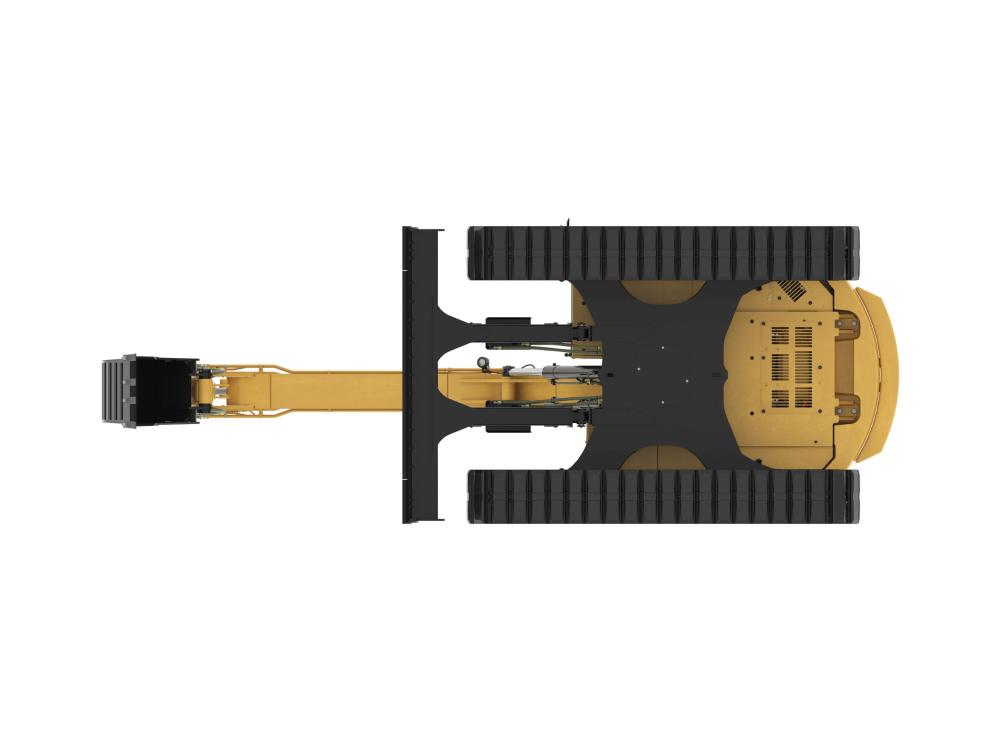

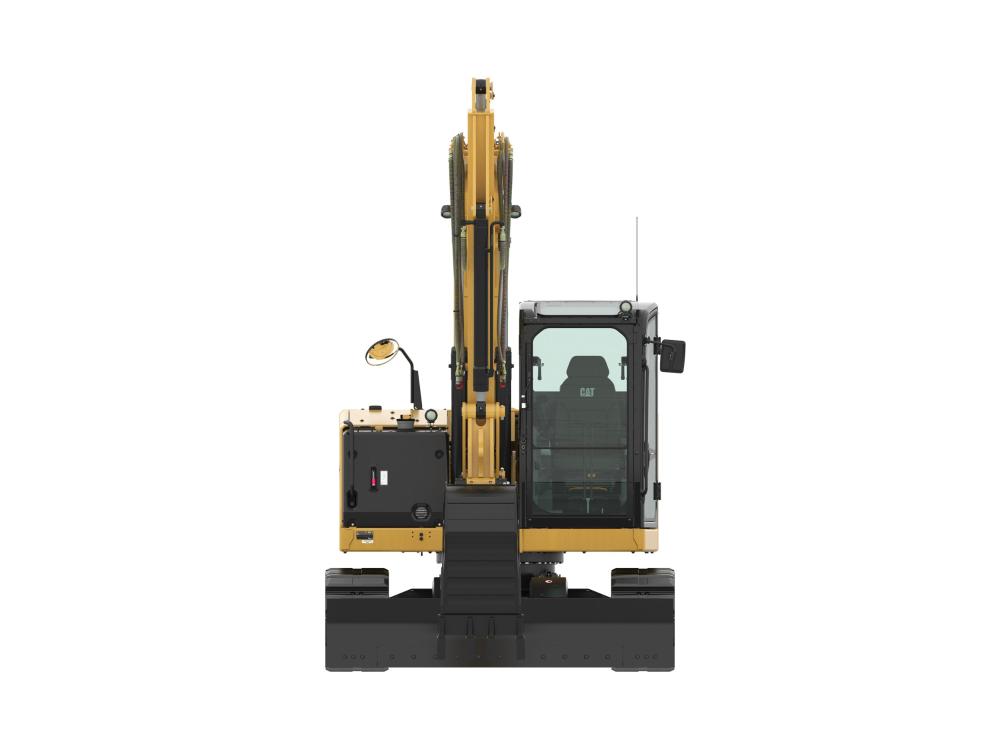

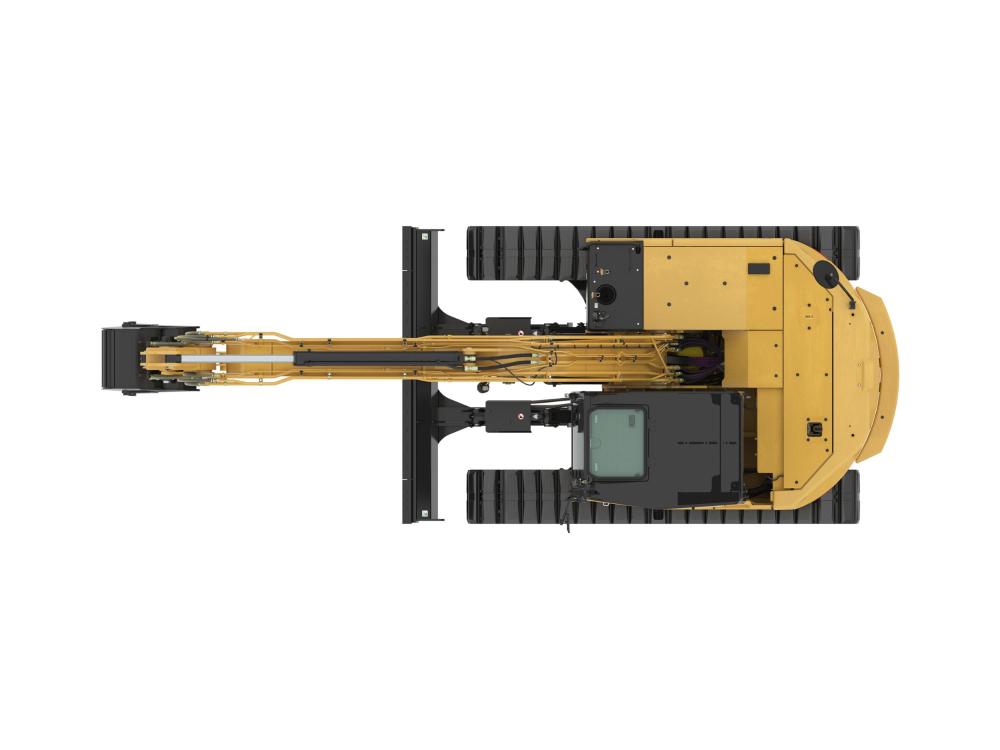

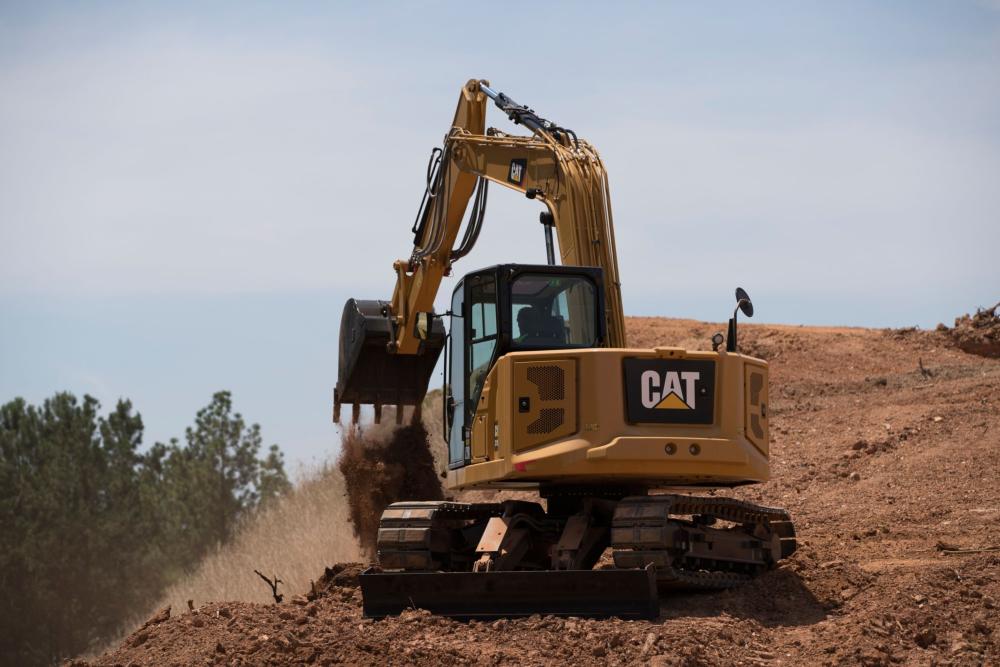

310 Mini Hydraulic Excavator
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
