Detalle Productos Cat

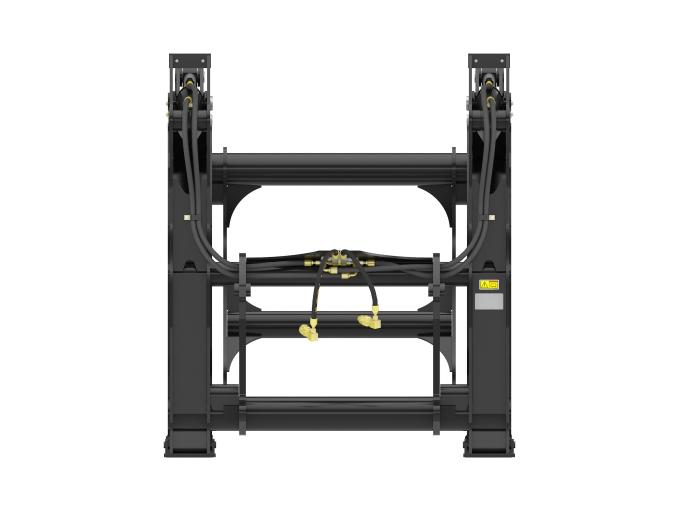

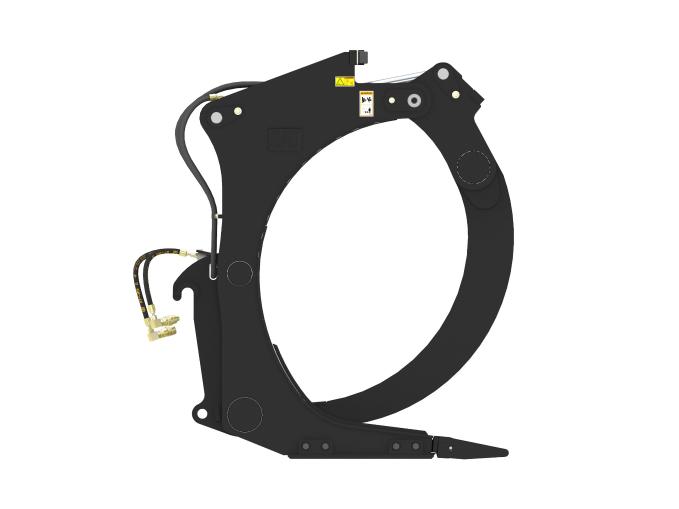

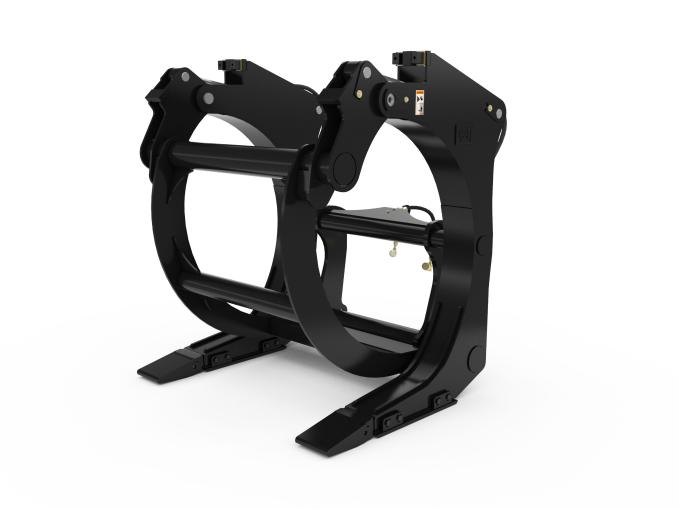

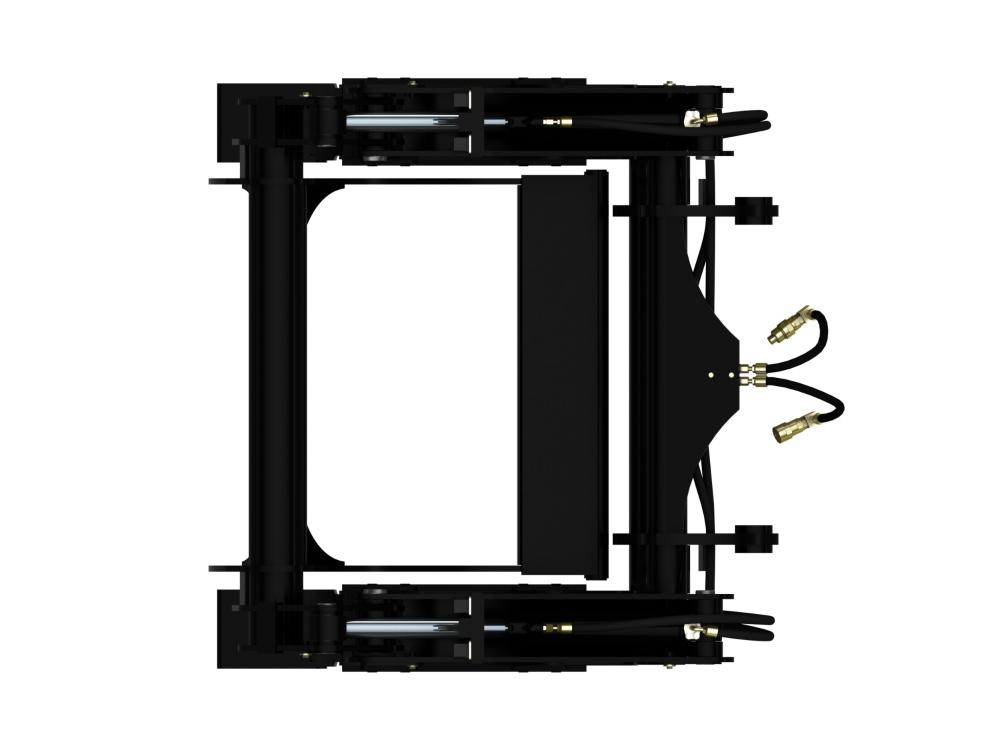

1812 mm (71 in) HPL-ISO Coupler Sorting Grapple Fork
Metric
Imperial
Width
1812 mm
Tine Length
1256 mm
Grapple Area
1.91 m²
Availability

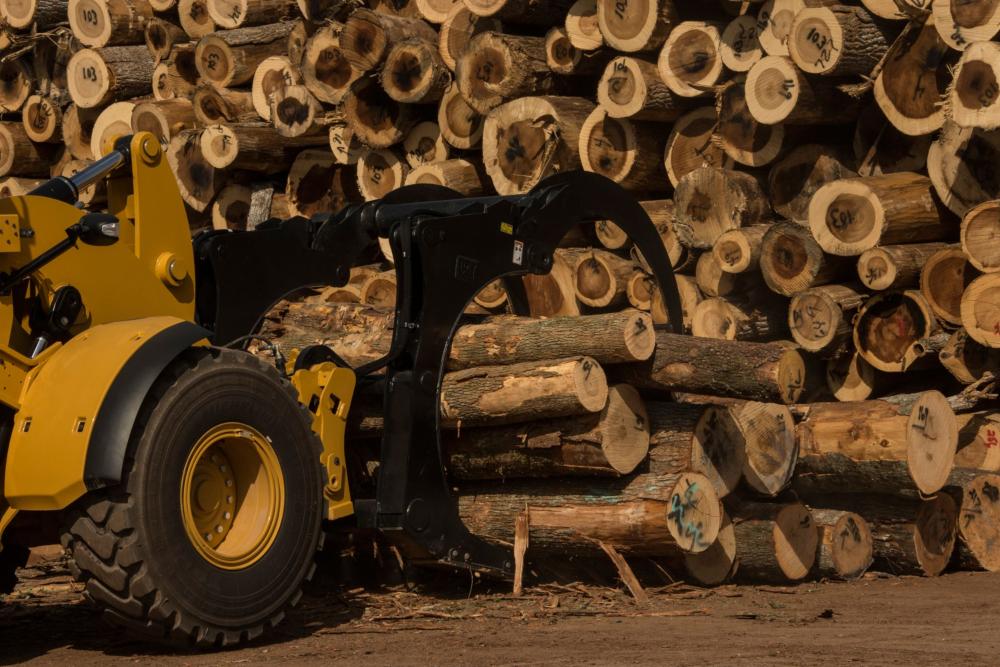

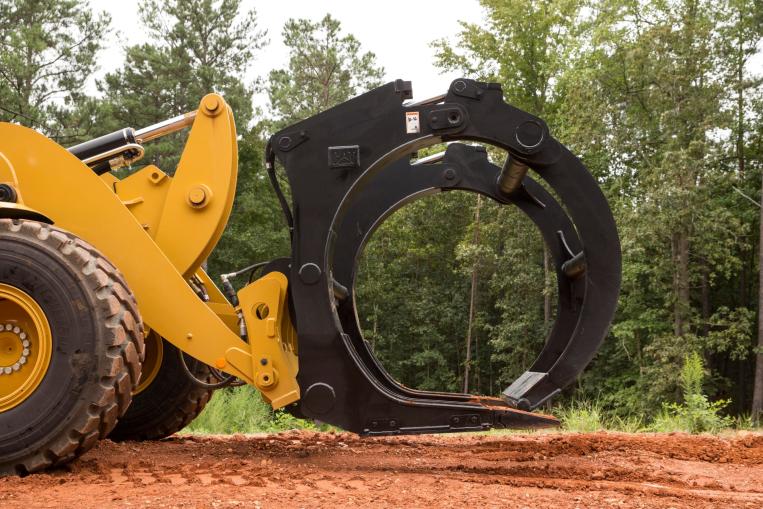

The Cat® Sorting Grapple Forks for Small Wheel Loaders are designed for numerous applications in log and lumber handling. Moving logs from stack piles for further processing or unloading trucks the Sorting Grapple Forks are built to perform. With adjustable clamp pressure and bolt-wear plates the Sorting Grapple Forks are adjustable to meet the operator\u2019s preferences while reducing owning and operating cost.

Application
Lumber-Handling Performance

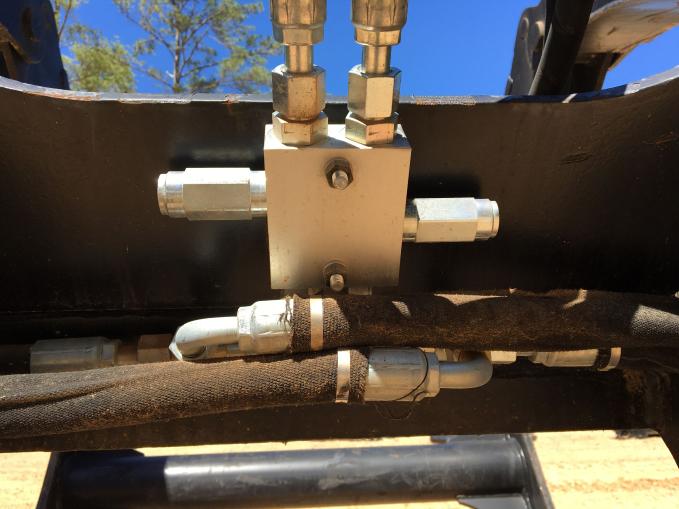

Pressure Regulated Clamping Force
Short Tines
Replaceable Wear Strips
User-Configurable

You might also be interested in:
Compatible machines:
-
930
Rated Gross Power - SAE J1995
127 kW
Operating Weight
14117 kg
Bucket Capacities
1.9-5.0 m3 (2.5-6.5 yd3)
-
938
Rated Gross Power - SAE J1995
143 kW
Operating Weight
16115 kg
Bucket Capacities
1.9-5.0 m3 (2.5-6.5 yd3)
-
938
Rated Gross Power - SAE J1995
143 kW
Operating Weight
16115 kg
Bucket Capacities
1.9-5.0 m3 (2.5-6.5 yd3)
-
938
Rated Gross Power - SAE J1995
143 kW
Operating Weight
16115 kg
Bucket Capacities
1.9-5.0 m3 (2.5-6.5 yd3)
360º Exterior

1812 mm (71 in) HPL-ISO Coupler Sorting Grapple Fork
