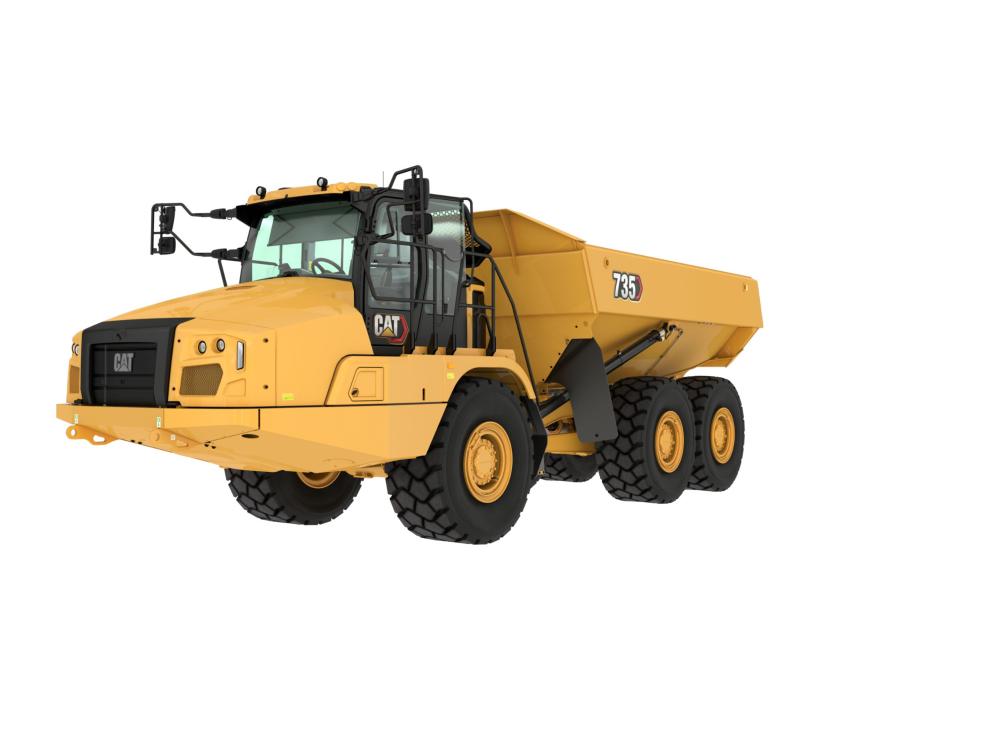

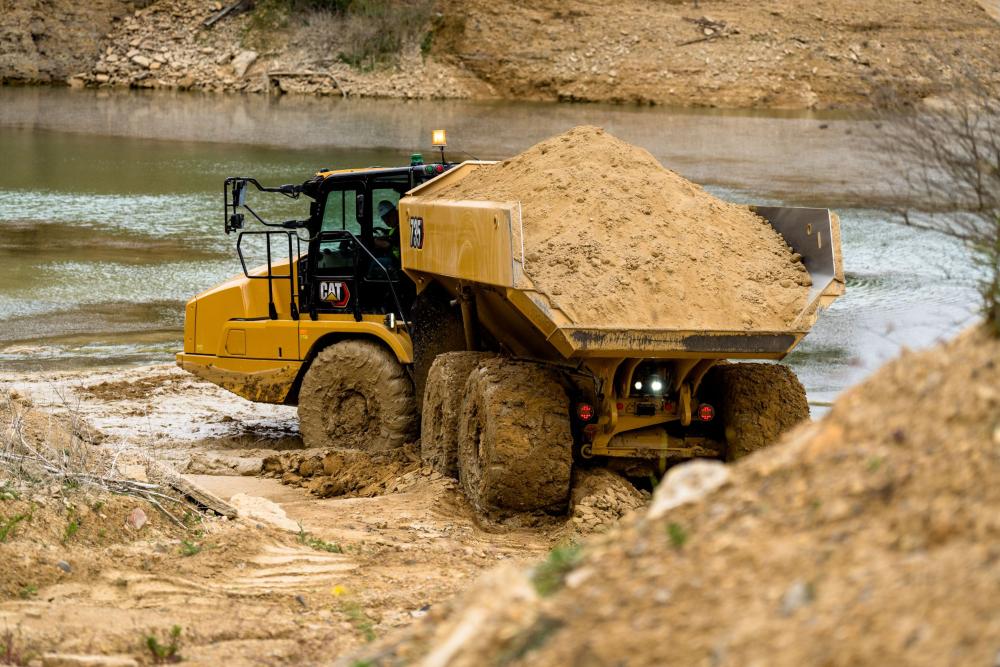

735 Articulated Truck

Units of measurement :

Metric

Imperial

Engine Model

Cat® C13B

Rated Payload

32 t

Heaped (SAE 2:1)

20 m³

Availability

Purchase Rental Used

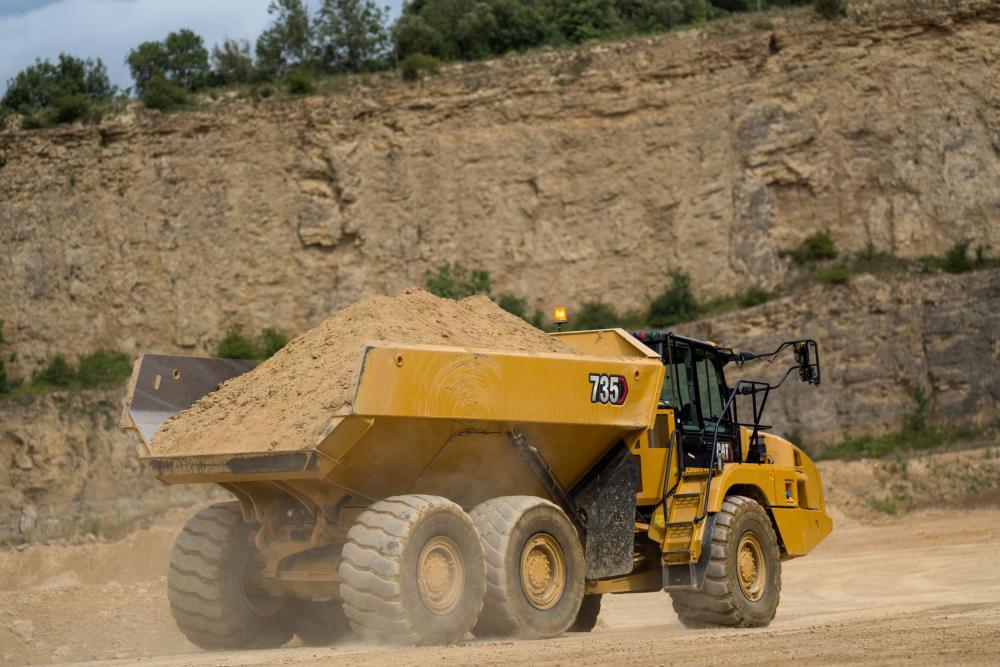

For tough quarry and mining jobs, rely on the Cat® 735 articulated truck. Its 35.3-ton (32-tonne) payload capacity is pass-matched with excavators and loaders to help you move more material and boost productivity across any jobsite.

RELIABLE PERFORMANCE

The redesigned dump body provides easier loading and maximum payload, while the C13B engine delivers the power you require, combined with relentless reliability.

BUILT-IN SAFETY

Designed for safe and convenient access with ground level service, and Dynamic Rollover Protection applies brakes when needed to help reduce the risk of rollovers.

ENHANCED OVERALL EFFICIENCY

Easily set job parameters with Body Height and Machine Speed Limiting, while achieving up to 16% more fuel efficiency with more dirt moved per fuel used.

SUSTAINABILITY

The Cat® C13B engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
Cat® Stability Assist for Articulated Trucks helps improve machine safety and uptime by increasing awareness of machine stability during operation.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

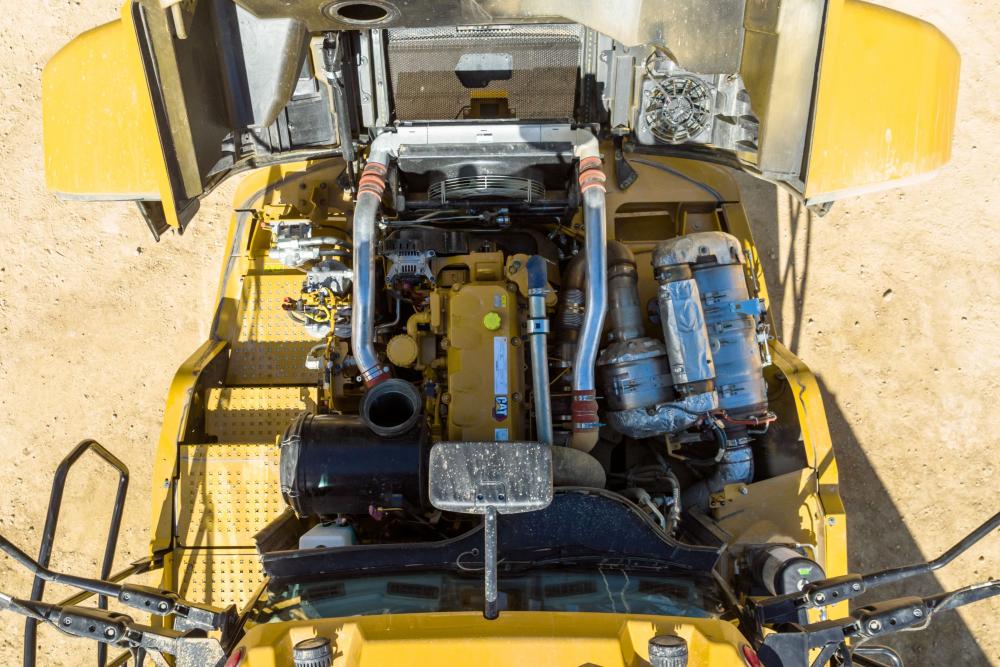

Engine

Engine Model	Cat® C13B
Gross Power (SAE J1995)	325 kW	436 hp
Net Power (SAE J1349)	319 kW	427 hp
Engine Power (ISO 14396)	322 kW	431 hp
Bore	130 mm	5.1 in
Stroke	157 mm	6.2 in
Displacement	12.5 l	763 in³
Note (1)	Advertised power is tested at 1,800 rpm.
Note (2)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)	Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 319 kW (427 hp) per the SAE reference conditions.
Note (5)	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6)	Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below	3810 m	12500 ft
Peak Engine Torque Gross (SAE J1995)	2206 N·m	1627 lbf·ft
Peak Engine Torque Net (SAE J1349)	2185 N·m	1612 lbf·ft
Peak Engine Torque Speed	1200 r/min	1200 r/min

Heaped (SAE 2:1)	20 m³	26.2 yd³
Struck	16 m³	20.9 yd³
Tailgate Heaped SAE 2:1	21.7 m³	28.4 yd³
Tailgate Struck	17 m³	22.2 yd³

Forward - 1	8 km/h	5 mile/h
Forward - 2	15 km/h	9 mile/h
Forward - 3	23 km/h	14 mile/h
Forward - 4	35 km/h	22 mile/h
Forward - 5	48 km/h	30 mile/h
Forward - 6	57 km/h	35 mile/h
Reverse - 1	9 km/h	6 mile/h

Interior Cab	72 dB(A)	72 dB(A)
Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Front Axle - Empty	14780 kg	32584 lb
Center Axle - Empty	5080 kg	11199 lb
Rear Axle - Empty	4850 kg	10692 lb
Total - Empty	24710 kg	54476 lb
Front Axle - Rated Load	4054 kg	8938 lb
Center Axle - Rated Load	13973 kg	30805 lb
Rear Axle - Rated Load	13973 kg	30805 lb
Total - Rated Load	32000 kg	70548 lb
Front Axle - Loaded	18834 kg	41522 lb
Center Axle - Loaded	19053 kg	42005 lb
Rear Axle - Loaded	18823 kg	41498 lb
Total - Loaded	56710 kg	125024 lb

Front Plate	7 mm	0.28 in
Base Plate	13 mm	0.51 in
Side Plates	11 mm	0.43 in

Fuel Tank	400 l	105.7 gal (US)
DEF Tank	34 l	9 gal (US)
Cooling System	83 l	21.9 gal (US)
Hydraulic System	123 l	32.5 gal (US)
Engine Crankcase	43 l	11.4 gal (US)
Transmission	47 l	12.4 gal (US)
Final Drives/Differential	125 l	33 gal (US)
Output Transfer Gear Box	25 l	6.6 gal (US)

Brakes	ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2005
Cab - ROPS	ISO 3471 – 2008
Steering	ISO 5010 – 2019

Turning Dimensions - Steer Angle - Left/Right	45°
Turning Dimensions - SAE Turning Radius	7470 mm	294 in
Turning Dimensions - Clearance Radius	8075 mm	318 in
Turning Dimensions - Inside Radius	3879 mm	153 in
Turning Dimensions - Aisle Width	5332 mm	210 in
Note	Dimensions are for machines equipped with 750/65 R25 tires.

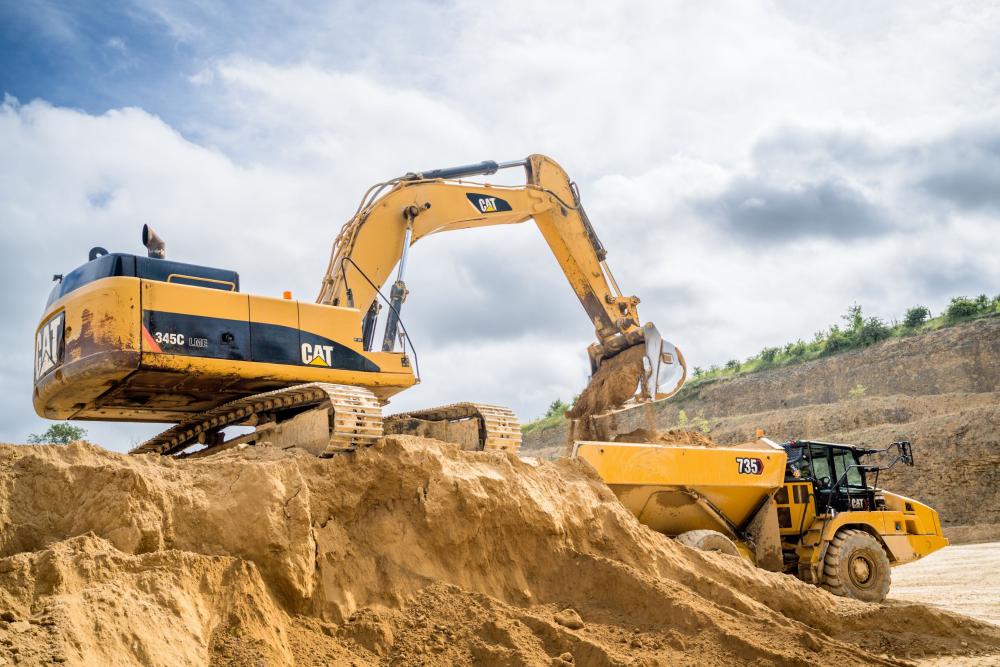

Hydraulic Excavators: 350/352 - Passes	4-5
Hydraulic Excavators: 336 - Passes	5-6
Wheel Loaders: 972/972 XE - Passes	3-4
Wheel Loaders: 966/966 XE - Passes	4
Wheel Loader: 962 - Passes	4-5
Wheel Loader: 950 - Passes	5
Note	An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

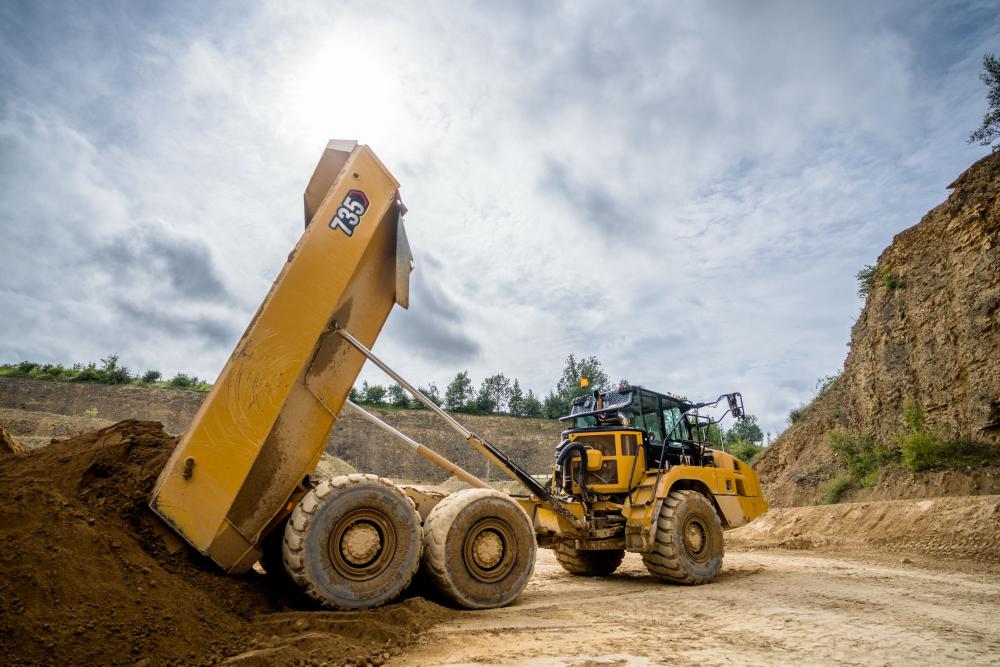

Raise Time	12 s	12 s
Lower Time	11 s	11 s
