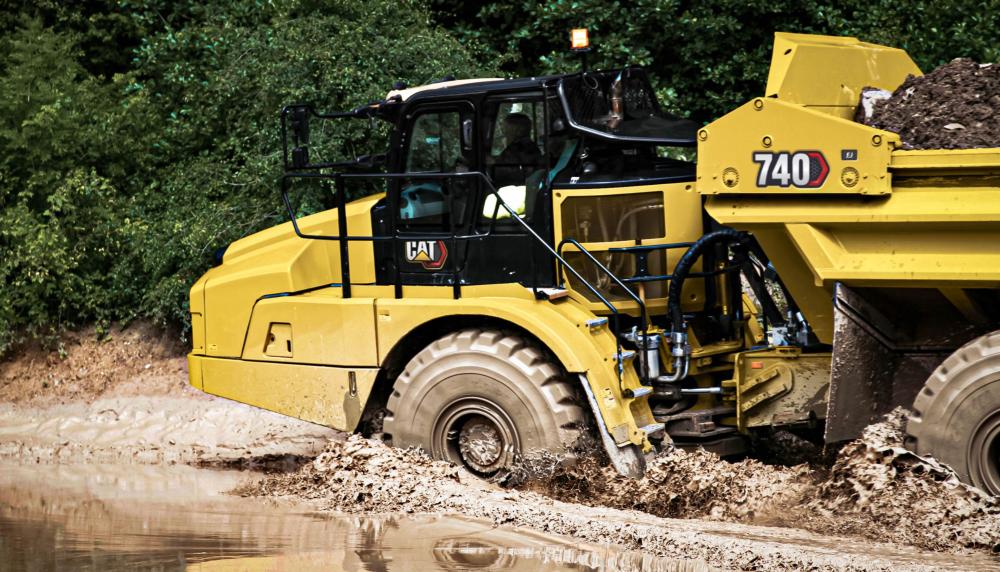

740 EJ Articulated Truck
Caterpillar
https://www.finanzauto.es/productos/dumperes-articulados-caterpillar-dumper-articulado-740-ej
Metric
Imperial
Engine Model
Cat® C18
Rated Payload
38 t
42 ton (US)
Heaped (SAE 2:1)
23 m³
30.1 yd³
Availability
The Cat 740 EJ with a 23 m³ (30.1 yd³) 38 tonnes (42 tons) capacity brings a new level of operator comfort and features to the market in addition to the durability, high productivity and lower operating costs Cat Articulated Trucks are known for. The all-new operator cabin is a leap into the next generation for Articulated Trucks, providing our operators the best place to help build the future.
UP TO 50% LESS OPERATOR INPUT
A uniquely combined eject and transmission lever allows for easy operation which suits a wide range of operator experienceUNMATCHED SAFETY
Safety features help increase operator confidence by providing a safer operation - prevention of cab and body roll-over and safer cab entryUNIQUE PRODUCTIVITY
Ability to spread on-the-go allows for increased production and increased profit potential by reducing the need for support equipment at the fill
- Every Tier 4 Final/Stage V and EU Stage V Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components.
- Maximized uptime and reduced cost with world-class support from the Cat dealer network.
- Minimized impact of emission systems: designed to be transparent to the operator without requiring interaction.
- Delivering better fuel economy with minimized maintenance costs while providing the same great power and response.
- Advanced MEUI-C injector platforms deliver increased injection pressures and more precise fuel rates. These durable injectors enhance responsiveness while controlling soot.
- All Cat engines feature innovative air-management systems that optimize airflow and enhance power, efficiency and reliability.
- The Cat NOx Reduction System (NRS) captures and cools a small quantity of exhaust gas, then routes it back into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.
- Cat engines equipped with a Selective Catalytic Reduction (SCR) system inject Diesel Exhaust Fluid (DEF) into the exhaust to reduce NOx emissions. DEF is a precisely mixed solution of 32.5 percent high purity chemical grade urea and 67.5 percent de-ionized water.
- Advanced Automatic Traction Control (AATC) proactively applies inter- and cross-axle differential locks ‘on-the-go.’ Operators are freed from this function to concentrate on driving/loading/dumping. Sensors monitor the machine and wheel speeds, enabling instant response in high rolling resistance conditions. Operation is seamless and smooth, eliminating wheel slip for maximum traction and productivity.
- Clutches are automatically disengaged when ground conditions allow, maximizing efficiency when steering or when on uneven ground.
- AATC reduces tire and driveline abuse, eliminating lost machine efficiencies caused by improper manual operation of the differential clutches and reducing the tire wear.
- Automatic Retarder Control (ARC) automates the retarder for the operator. Like AATC, a number of machine operating aspects are monitored. If required, the engine compression brake is engaged automatically to control machine speed when descending a grade. The system can help towards eliminating engine overspeed, improving safe machine operation and reducing cycle times, yet still having the flexibility of manual control if needed.
- Ejecting material from the dump body can be automated with the new Assisted Ejecting Control. Flick the new load eject switch and the machine will apply the service brakes, switch the transmission to neutral and push the material out at the required engine RPM. Retracting the blade is done the same way, flick the switch and the machine will fully retract the blade.
- All three axles promote stability using oscillating a-frames with lateral tie rods. Operate at productive speeds with confidence while virtually eliminating impact loads on truck components.
- The front suspension oscillates controlled by large-bore, low-pressure cylinders to assist in a smooth ride. An A-frame with lateral tie rod controls sideways movement and aids stability.
- The rear suspension features a walking beam and long-life suspension mounts optimizing ride and load retention.
- New fully enclosed wet disc brake systems inside of axles keeps contaminants out extending machine life and ensuring uptime.
- Hill assist reduces potential 'roll-back' on grades. If an operator stops the machine on a grade, when taking his foot off the service brake pedal the machine will automatically hold the service brakes on for a number of seconds to prevent the machine from rolling backwards.
- Waiting brake applies the service brakes when neutral gear is selected, allowing quick and easy control of the machine at the load or dump area.
- Spacious cab delivers comfort all shift long and is 7dB quieter than prior model.
- Unique combination eject/transmission lever is intuitive and enhances cycle times with fewer control movements
- Trainer/passenger seat is fully padded with wide, retractable seat belt for security and comfort.
- New large side storage box is heated/cooled by the HVAC system.
- Air-suspension seat offers greater comfort, with a greater range of adjustments. Fore/aft isolation dramatically reduces vibrations and jolts. Every operator will find a adjustments to ensure comfort and control all shift long.
- Standard cooling/heating system ensures comfort in all conditions.
- Optional four-point seat belt is available to help operator stay in position and comfortable in rugged terrain.
- Integrated, wrap-around dash means all gauges and controls are easy to monitor and access. Automotive feel with Caterpillar's renowned industrial strength.
- The updated touch screen dash mounted display allows the operator to monitor and adjust various levels of machine performance and condition, as well as machine warning categories. These include configuration settings, operator and machine totals, service information, various machine status parameters, machine payload information (when fitted), stability assist, and the video feed from the rearview camera.
- Optional Bluetooth™ entertainment system allows operator to stay in hands-free phone contact.
- The 740 EJ can eject and spread the material while moving, reducing additional spreading and dozing equipment. "On-the-go" ejecting results in faster cycle times and reduced power train loads.
- Ejecting the load without raising the body increases stability, allowing unloading on inclines, side slopes and in very soft underfoot conditions especially on landfill sites.
- The truck can eject in areas with reduced overhead clearance, such as around overhead lines or in tunneling and underground operations.
- The body design eliminates material sticking to the body, which increases productivity, improves fuel efficiency and lowers cost per ton.
- Reinforced body is made from thick high-yield, heat-treated Brinell hardened steel (Brinell 400 on the base and sides) that provides exceptional durability. Ejector top rails are made from high-strength alloy steel. For optimum durability and wear life, the ejector body is designed to work in applications where the material consists of rocks smaller than 152 mm (6 in) in diameter.
- The ejector blade is made from high-strength steel and uses technology similar to that proven in Cat wheel tractor-scrapers.
- A four-stage, high-speed, double-acting ejector cylinder is specifically designed for horizontal mounting and smooth load ejection.
- Box section front frame absorb is stiff to handle torque loads. Frame design decreases stress at the hitch and optimizes suspension geometry.
- Rear frame features twin-box construction minimizing stress points and enhancing service life.
- The articulating hitch provides the truck with steering articulation, and the oscillation ensures all-wheel ground contact in rough terrain.
- Field proven two-piece hitch construction features a durable cast steel head bolted to a hard wearing forged steel tube.
- The 740 EJ body has a large target area to provide consistently high load-carrying capacity. Eject blade and body design aid in clean material discharge, maximizing production and avoiding carry-back.
- The output transfer gear distributes drive to the tractor and trailer and includes a wet clutch differential lock for optimum traction in poor underfoot conditions.
- The full power hydraulic brake system actuates enclosed, oil-immersed, multi-disc, multi-plate brakes with independent front and rear circuits and accumulators. This dual-circuit, all wheel braking system provides the braking performance required to support maximum productivity.
- The parking brake is located on the center axle in an elevated position, it is spring applied and hydraulically released.
- Cat Product Link wirelessly connect you to your equipment, giving you valuable insight into how your machine or fleet is performing. The system tracks location, hours, fuel usage, productivity, idle time, and diagnostic codes through the online VisionLink user interface so you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
- Cat Production Measurement brings payload weighing to the cab to help optimize job site efficiency and productivity. Operators can view real-time load weights on the integrated display and know precisely when target is achieved, while cab-mounted external payload lights on all four corners signal the loader operator when to stop, reducing the risk of machine overloading. Operators can track daily productivity from the cab, with quick access to truck payload weights, loads and cycle counts, and daily totals; or remotely via LINK technologies.
- Cat Detect with Stability Assist warns the operator if machine is approaching a pre-set angle during operation; when driving and tipping. If using the assisted hoist, the machine will stop hoisting the body and give an audible and visual warning. The system monitors angles of tractor, trailer and grade independently. This increases operator awareness of machine stability during operation. All tractor and/or trailer rollover events are logged and reported via VisionLink.
- Caterpillar design, manufacturing and customer service help ensure peak performance and uptime.
- Long service intervals keep your machine operating.
- Lubrication points are grouped near the hitch for fast, easy routine maintenance.
- Universal joints are sealed and lubed for long life.
- Optional autolube system saves time and includes alerts via Product Link for low levels and fault codes.
- Radiator package is located behind the cab for protection and uses extended-life coolant to stretch change intervals.
- Electrical service center is located inside the cab and provides a power port, diagnostic connector and Cat Data Link connector for use with Electronic Technician (ET) software-equipped laptop computer.
- Easy access to transmission, drive shafts, hydraulic pumps and electrical and hydraulic interfaces provided with tilt-to-side cab and access panel.
- Service points are conveniently located on the left side of the engine, under the electrically raised hood.
- Complete customer support is the goal of your Cat dealership. From counsel of product selection, operating costs, operation, maintenance all the way to help with decisions on when and whether to replace or rebuild, your dealer is with you all the way.
- Caterpillar designs and functions with great concern for the environment.
- Cat C18 engine incorporates the Cat Clean Emission Module (CEM) to meet Tier 4 Final/Stage V emission standards. The system uses both Ultra-low-sulfur diesel (ULSD) fuel or up to B20 bio-diesel blended with ULSD.
- Articulated Trucks are designed for long lifecycles with machines using reman components and machine rebuilds to maximize use of every part, minimizing waste.
- Volume of both hydraulic and engine oil systems has be reduced meaning less waste when oils are replaced.
- Seat belt in use indicator (four-point seat belt available as an option)
- Operator presence detection (prevents gear engagement when operator is not seated)
- Additional mirror for front of machine visibility
- Cab mounted, wide angled, folding mirrors
- Heated mirrors (optional)
- Body raised visual indicator
- Cab integral Roll Over Protection System (ROPS) and Falling Object Protection System (FOPS)
- Electro-hydraulic secondary steering system automatically activates in forward/reverse or when stationary if low pressure is sensed and can be manually selected for machine recovery purposes
- Extensive handrails
- External electrical system disconnect switch for easy access from outside of the machine
- Fire extinguisher in-cab mounting point
- Fully raised body locking pin
- Ground level external engine fuel cut-off switch provides easy access outside of the machine
- In-cab emergency brake switch (tertiary)
- Internal and external grab handles
- LED-flashing beacon (optional)
- Maximum speed limiter
- Multiple camera compatible
- New access lights
- Rearview camera system is fitted as standard
- Reversing indicator
- Slip resistant walkways – punched steel plate
- The parking brake functions are spring applied and hydraulic released
- Cat Detect with Stability Assist
Engine
| Engine Model | Cat® C18 | |
| Gross Power (SAE J1995) | 381 kW | 511 hp |
| Net Power (SAE J1349) | 370 kW | 496 hp |
| Engine Power (ISO 14396) | 376 kW | 504 hp |
| Bore | 145 mm | 5.7 in |
| Stroke | 183 mm | 7.2 in |
| Displacement | 18.1 l | 1106 in³ |
| Note (1) | Advertised power is tested at 1,700 rpm. | |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. | |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. | |
| Note (4) | Net power when the fan is at maximum speed is 370 kW (496 hp) per the SAE reference conditions. | |
| Note (5) | The Cat C18 meets U.S. EPA Tier 4 Final and EU Stage V emission standards. | |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1:2006 requirements are met by many brands of DEF, including those that carry the AdBlue® or API certifications. | |
| No Engine De-rating Required Below | 3050 m | 10000 ft |
| Peak Engine Torque Gross (SAE J1995) | 2618 N·m | 1931 lbf·ft |
| Peak Engine Torque Net (SAE J1349) | 2558 N·m | 1887 lbf·ft |
| Peak Engine Torque Speed | 1200 r/min | 1200 r/min |
Weights
| Rated Payload | 38 t | 42 ton (US) |
Body Capacities
| Heaped (SAE 2:1) | 23 m³ | 30.1 yd³ |
| Struck | 18 m³ | 23.5 yd³ |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). |
Transmission
| Forward - 1 | 6.1 km/h | 3.8 mile/h |
| Forward - 2 | 8.1 km/h | 5 mile/h |
| Forward - 3 | 11.2 km/h | 7 mile/h |
| Forward - 4 | 14.1 km/h | 8.8 mile/h |
| Forward - 5 | 18.7 km/h | 11.6 mile/h |
| Forward - 6 | 22.9 km/h | 14.2 mile/h |
| Forward - 7 | 31.5 km/h | 19.6 mile/h |
| Forward - 8 | 37.9 km/h | 23.5 mile/h |
| Forward - 9 | 54.8 km/h | 34 mile/h |
| Reverse - 1 | 6.4 km/h | 4 mile/h |
| Reverse - 2 | 14.6 km/h | 9.1 mile/h |
Sound Levels
| Interior Cab | 72 dB(A) | 72 dB(A) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fan’s speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. | |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/windows open for extended periods or in noisy environments. |
Operating Weights
| Front Axle - Empty | 20550 kg | 45305 lb |
| Center Axle - Empty | 7710 kg | 16998 lb |
| Rear Axle - Empty | 7450 kg | 16424 lb |
| Total - Empty | 35710 kg | 78727 lb |
| Front Axle - Rated Load | 1603 kg | 3534 lb |
| Center Axle - Rated Load | 18198 kg | 40120 lb |
| Rear Axle - Rated Load | 18198 kg | 40120 lb |
| Total - Rated Load | 37999 kg | 83776 lb |
| Front Axle - Loaded | 22154 kg | 48841 lb |
| Center Axle - Loaded | 25908 kg | 57117 lb |
| Rear Axle - Loaded | 25648 kg | 56544 lb |
| Total - Loaded | 73710 kg | 162503 lb |
Body Plate
| Type | High Strength Brinell HB450 Wear Resistant Steel | |
| Front | 7 mm | 0.28 in |
| Chute | 14 mm | 0.55 in |
| Side | 11 mm | 0.43 in |
| Base | 14 mm | 0.55 in |
Blade Eject/Retract
| Eject (manual) | 17 s | 17 s |
| Eject (automatic) | 16 s | 16 s |
| Retract (manual) | 21 s | 21 s |
| Retract (automatic) | 21 s | 21 s |
Service Refill Capacities
| Fuel Tank | 550 l | 145.3 gal (US) |
| DEF Tank | 25 l | 5.3 gal (US) |
| Cooling System | 90 l | 23.7 gal (US) |
| Brake Cooling Tank | 67 l | 17.7 gal (US) |
| Steering/Hoist Hydraulic System | 140 l | 36.9 gal (US) |
| Engine Crankcase | 52 l | 13.7 gal (US) |
| Transmission - OTG | 75 l | 19.8 gal (US) |
| Final Drive - Each | 5 l | 1.3 gal (US) |
| Axles - Each | 60 l | 15.8 gal (US) |
Standards
| Brakes | ISO 3450 – 2011 |
| Cab - FOPS | ISO 3449 Level II – 2005 |
| Cab - ROPS | ISO 3471 – 2008 |
| Steering | ISO 5010 – 2019 |
Turning Circle
| Turning Dimensions - Steer Angle - Left/Right | 45° | |
| Turning Dimensions - SAE Turning Radius | 8624 mm | 339 in |
| Turning Dimensions - Clearance Radius | 9045 mm | 356 in |
| Turning Dimensions - Inside Radius | 4413 mm | 173 in |
| Turning Dimensions - Aisle Width | 5925 mm | 233 in |
| Note | Dimensions are for machines equipped with 29.5R25 tires. |
Steering
| Lock to Lock | 4.8 seconds @ 60 rpm |
Optimal Loader/Truck Pass Matching
| Hydraulic Excavator: 390 - Passes | 4 |
| Hydraulic Excavator: 374 - Passes | 5 |
| Wheel Loader: 982 - Passes | 4 |
| Wheel Loader: 980 - Passes | 4–5 |
| Wheel Loader: 972 - Passes | 4–5 |
| Note | An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
