MH3022 Wheel Material Handler
Cat
https://www.finanzauto.es/productos/manipuladoras-de-materiales-caterpillar-manipuladora-de-materiales-de-ruedas-mh3022
Metric
Imperial
Engine Model
Cat C4.4
Operating Weight
24500 kg
54000 lb
Maximum Reach
9280 mm
30.4 ft
Availability

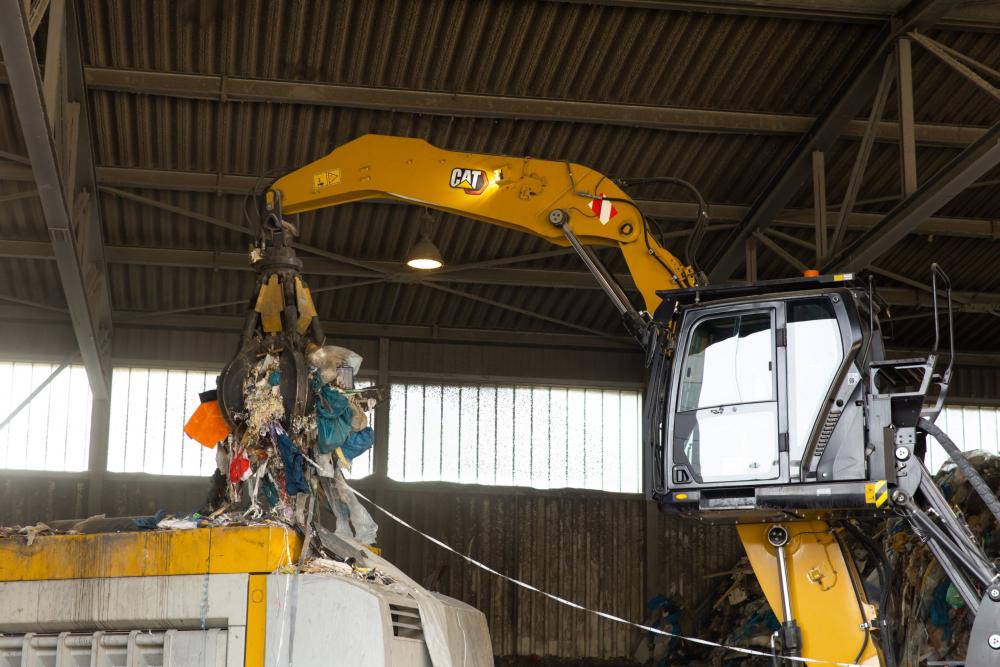

The Cat® MH3022 is a purpose-built material handler designed to deliver strong performance for your toughest waste and scrapyard applications. The MH3022 features simple-to-use technologies, a comfortable cab, and multiple boom and stick options to match your work. These features help create a safe, reliable product to take on the wide variety of challenges you face each day.
High Performance
Quick cycle times help you complete more work in less time. A wide machine footprint helps provide stability.Low Maintenance Costs
Long life filters for fuel, hydraulic oil, and air help lower your overall costs.Operator Comfort
Operate with ease. In cab comfort options of your choice and high visibility with 360° machine view help you work comfortably all shift long.Less CO₂ Emissions
The MH3022 emits less CO₂ than the previous MH3022-06.Latest Features
High Performance
Integrated Cat® Technologies
Work In Comfort
Reliable, Durable, and Versatile
Maintenance
Safety Features
Sustainability
Machine Setup Simplification
Cat Payload*
Swing Assist
*Payload technologies are not legal for trade.
Not all features are available in all regions. Please check with your Cat dealer for specific offering availability in your area. Build Number: 07E
- At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
- The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Cat Payload*
- Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials.
Swing Assist
- Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
*Payload technologies are not legal for trade.
Not all features are available in all regions. Please check with your Cat dealer for specific offering availability in your area. Build Number: 07E
- The C4.4 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final and EU Stage V emissions standards with an aftertreatment system that requires no scheduled downtime or maintenance.
- Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
- The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
- Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
- Valve priority helps put hydraulic pressure and flow where you need it.
- Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.
- Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material – with a bucket and thumb combination, grapple, or clamshell attachments – and get a real-time weight estimate without swinging.
- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
- Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
*Data field availability can vary by equipment manufacturer.
- Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
- The cab has a wide seat that adjusts for operators of all sizes.
- Control the machine comfortably with easy-to-reach controls all located in front of you.
- Standard automatic climate control keeps you at the right temperature all shift long.
- The optional advanced air filtration system with integrated pre-cleaner helps prevent harmful airborne substances from entering via the air conditioning (A/C) system.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
- Connect to personal devices via the standard radio's USB ports and Bluetooth® technology.
- Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
- Productivity applications are displayed in grid view to read on the go, and touchscreen navigation is programmed to ensure job performance continues without any hold-ups.
- Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
- Work up to 3000 m (9,840 ft) above sea level without derating.
- Don't let the temperature stop you from working. The machine has a standard high-ambient temperature capability of 52°C (125°F) and cold start capability of -18°C (0°F).
- Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
- Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
- Match your machine to the application. Multiple configurations allow you to customize your machine to your needs.
- An optional 15 kW (20 hp) generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
- Expand your work capabilities with attachments for a variety of applications.
- Track your machine's filter life and maintenance intervals via the in-cab monitor.
- Scheduled Oil Sampling (S•O•SSM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.

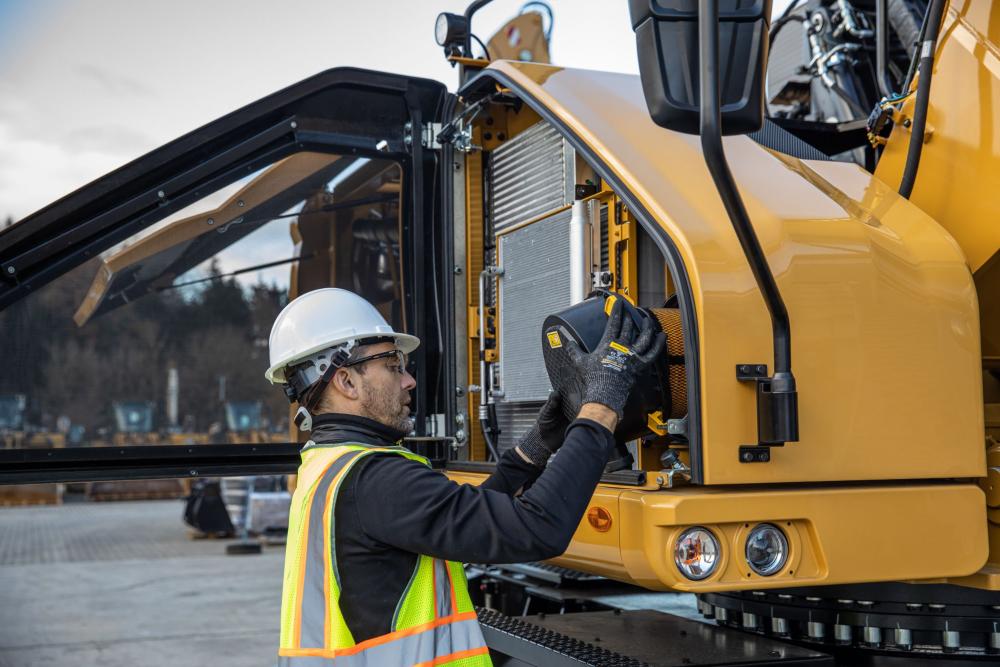

- The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
- The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
- High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
- The optional waste package includes a wide-fin-spacing radiator and air inlet screen with an integrated vibration device designed to help improve the performance of the reversible fan to help enhance cleaning results.
- Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.
- Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
- Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
- Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
- Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.
- Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
- Thick impact-resistant windshields fulfill P5A or P8B standards.
- Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
- The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
- Optional Operator Protective Guards (OPG) protect from falling and flying debris.
- In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
- Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
- Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.
- The Cat C4.4 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The MH3022 emits less CO₂ than the MH3022-06.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Cat 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic – not only helping keep personnel safe but also helps avoid repairs, downtime, and costly jobsite fines.
- Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Engine
| Engine Model | Cat C4.4 | |
| Net Power - ISO 9249 | 108 kW | 145 hp |
| Net Power - ISO 9249 (DIN) | 147 hp (metric) | 147 hp (metric) |
| Engine Power - Maximum - ISO 14396 | 110 kW | 148 hp |
| Engine Power - ISO 14396 (DIN) | 150 hp (metric) | 150 hp (metric) |
| Bore | 105 mm | 4.1 in |
| Stroke | 127 mm | 5 in |
| Displacement | 4.4 l | 268.5 in³ |
| Biodiesel Capability | Up to B20¹ | |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. | |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. | |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Weights
| Operating Weight | 24500 kg | 54000 lb |
| Note | Operating weight includes full fuel tank, operator, 1400 kg (3,100 lb) work tool. Weight varies depending on configuration. |
Working Ranges
| Maximum Reach | 9280 mm | 30.4 ft |
| Boom | MH 5.35 m (17'7") | |
| Stick | 4.3 m (14'1") Straight | |
| Maximum Height | 10760 mm | 35.3 ft |
| Minimum Dump Height | 3310 mm | 10.9 ft |
| Maximum Depth | 1460 mm | 4.8 ft |
| Boom Pin Height | 7120 mm | 23.4 ft |
Transmission
| Maximum Travel Speed | 20 km/h | 12.4 mile/h |
| Drawbar Pull | 127 kN·m | 28551 lb/ft |
| Maximum Gradeability | 65% |
Hydraulic System
| Maximum Pressure - Implements | 35000 kPa | 5076 psi |
| Maximum Pressure - Swing | 36500 kPa | 5294 psi |
| Maximum Pressure - Travel | 35000 kPa | 5076 psi |
Swing Mechanism
| Swing Speed | 8 r/min | 8 r/min |
| Maximum Swing Torque | 54 kN·m | 39553 lbf·ft |
Service Refill Capacities
| Fuel Tank Capacity | 350 l | 92.5 gal (US) |
| Cooling System | 36 l | 9.5 gal (US) |
| Engine Oil | 13 l | 3.4 gal (US) |
| Rear Axle - Housing (Differential) | 14 l | 3.7 gal (US) |
| Final Drive - Each | 2.5 l | 0.7 gal (US) |
| Powershift Transmission | 2.5 l | 0.7 gal (US) |
| Hydraulic System - Including Tank | 345 l | 91.1 gal (US) |
| Hydraulic Tank | 155 l | 40.9 gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 30 l | 7.9 gal (US) |
Dimensions
| Boom | MH 5.35 m (17'7") | |
| Stick | 4.3 m (14'1") Straight | |
| Shipping Length | 8300 mm | 27.2 ft |
| Machine Length | 4950 mm | 16.2 ft |
| Tail Swing Radius | 2600 mm | 8.5 ft |
| Counterweight Clearance | 1300 mm | 4.3 ft |
| Cab Height- Lowered | 3350 mm | 11 ft |
| Cab Height-Lowered with OPG | 3350 mm | 11 ft |
| Cab Height-Raised | 5750 mm | 18.9 ft |
| Cab Height-Raised with OPG | 5750 mm | 18.9 ft |
| Wheel Base | 2600 mm | 8.5 ft |
| Shipping Width | 2540 mm | 8.3 ft |
| Ground Clearance | 310 mm | 1 ft |
| Undercarriage Length | 4900 mm | 16.1 ft |
Air Conditioning System
| Note (1) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 1.502 metric tonnes (1.655 tons). |
