Medium Excavators Caterpillar 320 GC

Cab Monitor Improvements

Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Smaller app tiles to view more apps in one screen.
When navigating the menu, scroll position will be remembered.
While menu is shown and lever is moved, camera view will be shown.

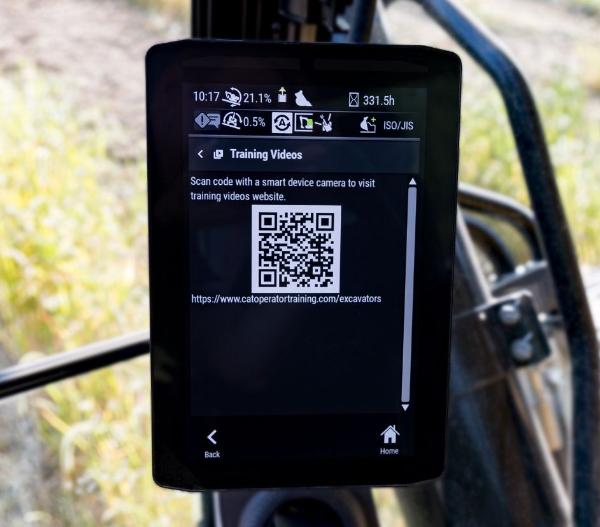

Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H

Match the excavator to the job with power modes; let Smart mode automatically match engine and hydraulic power to digging conditions.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
Valve priority puts hydraulic pressure and flow where you command it to go for fast light to medium load cycle times.
The engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards with an aftertreatment system that requires no operator input or downtime.
Add auxiliary hydraulics to do more work with a range of Cat® attachments.
Don't let the temperature stop you from working. The excavator has a standard high ambient temperature capability of 52º C (125º F) and cold start capability of -32º C (-25º F).

Expect lower maintenance costs compared to the 320F.

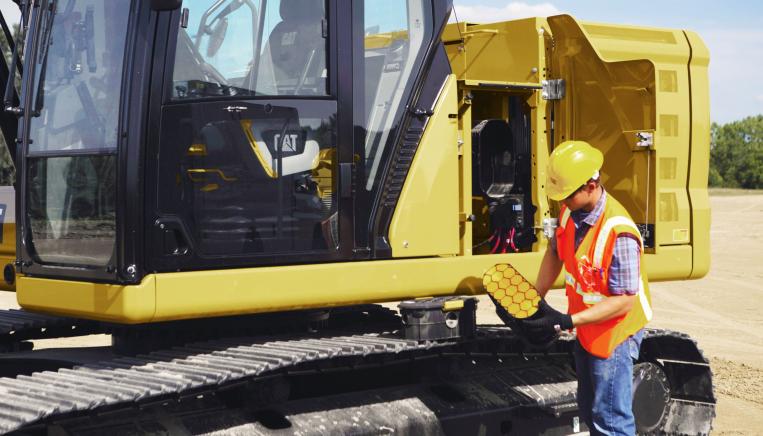

Do all daily maintenance inspections at ground level.
Check engine oil level quickly and safely with the ground level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
No required maintenance on the Cat® Clean Emissions Module.
Using Cat genuine oil and filters and doing your typical S∙O∙S^SM monitoring will extend the current service interval to 1,000 hours, giving you greater uptime to do more work.
The hydraulic oil filter provides high filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000 hour replacement interval.
The high-efficiency electric cooling fans only run when needed and reverse to keep cores free from debris.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
S·O·S ports simplify maintenance and allow for quick, easy extraction of samples for fluid analysis.

Work up to 3000 m (9,840 ft) above sea level without de-rating.
Standard high-ambient temperature capability is 52º C (125º F) with cold start capability at –32º C (–25º F).
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Three levels of fuel filtration protect the engine from dirty diesel fuel.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The center track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

Access 100% of daily maintenance inspection points from ground level – no need for you to climb on top of the excavator.
Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab posts and larger windows.
A rearview camera is standard, and a right-side-view camera is optional.
The latest right-hand service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
The handrails comply with ISO 2867:2011 requirements.
The lower frame meets ISO 15818:2017 lifting and tie-down requirements.
Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

Start the engine with a push button; use a Bluetooth® key fob, or the unique Operator ID function.
Program each joystick button, including response and pattern, using Operator ID; it will also remember climate control fan and radio settings.
Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or with the aid of the jog dial control.
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
Protect your hammer tool from overheating and rapid wear. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds - all to extend the tool’s service life.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
The Cat® PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy.

The Comfort cab has a wide seat that adjusts for operators of all sizes.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

* Data field availability can vary by equipment manufacturer.

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:

Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.
Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.
Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.
Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.
Compactors (Vibratory Plate): Compact soil, sand, gravel and asphalt quickly and efficiently to create a stable foundation. Vibratory plate compactors deliver high-impact force and even coverage, reducing air pockets and improving surface integrity for trenching, roadwork, and patching.
Rotary Cutters: Get accurate, precise work with less noise and vibration. Cat® Rotary Cutters deliver high torque and precision for a range of applications: demolition, grinding, profiling, trenching, tunneling, and quarrying. Specifically designed for excavator-mounted use to handle heavy-duty materials like concrete, rock, and dense brush with ease.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Thumbs: Add gripping capability to your buckets, enabling precise and secure handling of irregular materials like rocks, stumps, and debris. Perfect for loading, sorting, and placing tasks, they enhance versatility and control. Hydraulic or mechanical options allow for flexible operation across job types.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Please note: Not all attachments are available in all regions. Contact your Cat Dealer for details.

The Cat® C4.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
The 320 GC emits lower CO₂emissions compared to the previous 320F Eco.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
VisionLink™ displays the CO₂emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
When engaged, one-touch idle helps operators conserve fuel and reduce greenhouse gas emissions by lowering engine speed when the machine is under no load and return to normal operating speed when desired.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cat Scheduled Oil Sampling (S·O·S) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Net Power - ISO 9249	109 kW	146 hp
Net Power - ISO 9249 (DIN)	148 hp (metric)	148 hp (metric)
Engine Model	Cat® C4.4
Engine Power - ISO 14396	110.1 kW	148 hp
Engine Power - ISO 14396 (DIN)	150 hp (metric)	150 hp (metric)
Bore	105 mm	4 in
Stroke	127 mm	5 in
Displacement	4.4 l	269 in³
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Operating Weight	22000 kg	48500 lb
Note	Long undercarriage, Reach boom, R2.9 (9'6") stick, General Duty (GD) 1.0 m³ (1.31 yd³) bucket, 700 mm (28 in) triple grouser shoes and 4200 kg (9,300 lb) counterweight.

Maximum Digging Depth	6720 mm	22 ft
Boom	Reach 5.7 m (18.8)
Stick	Reach 2.9 m (9'6")
Bucket	GD 1.0 m³ (1.31 yd³)
Maximum Reach at Ground Level	9860 mm	32.3 ft
Maximum Cutting Height	9450 mm	31 ft
Maximum Loading Height	6490 mm	21.3 ft
Minimum Loading Height	2170 mm	7.1 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	6550 mm	21.6 ft
Maximum Vertical Wall Digging Depth	5690 mm	18.7 ft
Bucket Digging Force - ISO	129 kN	28935 lbf
Stick Digging Force - ISO	99 kN	22281 lbf

Main System - Maximum Flow	442 l/min (117 gal/min)
Maximum Pressure - Equipment	35000 kPa	5075 psi
Maximum Pressure - Travel	34300 kPa	4974 psi
Maximum Pressure - Swing	25000 kPa	3625 psi

Swing Speed*	11.6 r/min	11.6 r/min
Maximum Swing Torque	74.4 kN·m	54900 lbf·ft
Note (1)	*For CE-marked machine default value may be set lower.

Fuel Tank Capacity	345 l	91.1 gal (US)
Cooling System	25 l	6.6 gal (US)
Engine Oil	15 l	4 gal (US)
Swing Drive	12 l	3.2 gal (US)
Final Drive - Each	4 l	1.1 gal (US)
Hydraulic System - Including Tank	234 l	61.8 gal (US)
Hydraulic Tank	115 l	30.4 gal (US)
DEF Tank	39 l	10.3 gal (US)

Boom	Reach 5.7 m (18'8")
Stick	Reach 2.9 m (9'6")
Bucket	GD 1.0 m³ (1.31 yd³)
Shipping Height - Top of Cab	2960 mm	9.7 ft
Handrail Height	2950 mm	9.8 ft
Shipping Length	9530 mm	31.3 ft
Tail Swing Radius	2830 mm	9.3 ft
Counterweight Clearance	1050 mm	3.4 ft
Ground Clearance	470 mm	1.5 ft
Track Length	4450 mm	14.7 ft
Length to Center of Rollers	3650 mm	11.11 ft
Track Gauge	2380 mm	7.9 ft
Transport Width	3170 mm	10.4 ft

Detalle Productos Cat

320 GC Hydraulic Excavator

Low Fuel Consumption

Improved Reliability and Efficiency

Lower Maintenance Costs

Low CO2 Emissions

Latest Features

Performance with Less Fuel

Lower Maintenance Costs

Reliability You Can Count On

Safely Home Every Day

Simple to Operate

Designed for Operators

Take the Guesswork out of Managing Your Equipment

Attachments

Sustainability

Engine

Weights

Working Ranges and Forces

Hydraulic System

Swing Mechanism

Service Refill Capacities

Dimensions

Air Conditioning System

Sustainability
