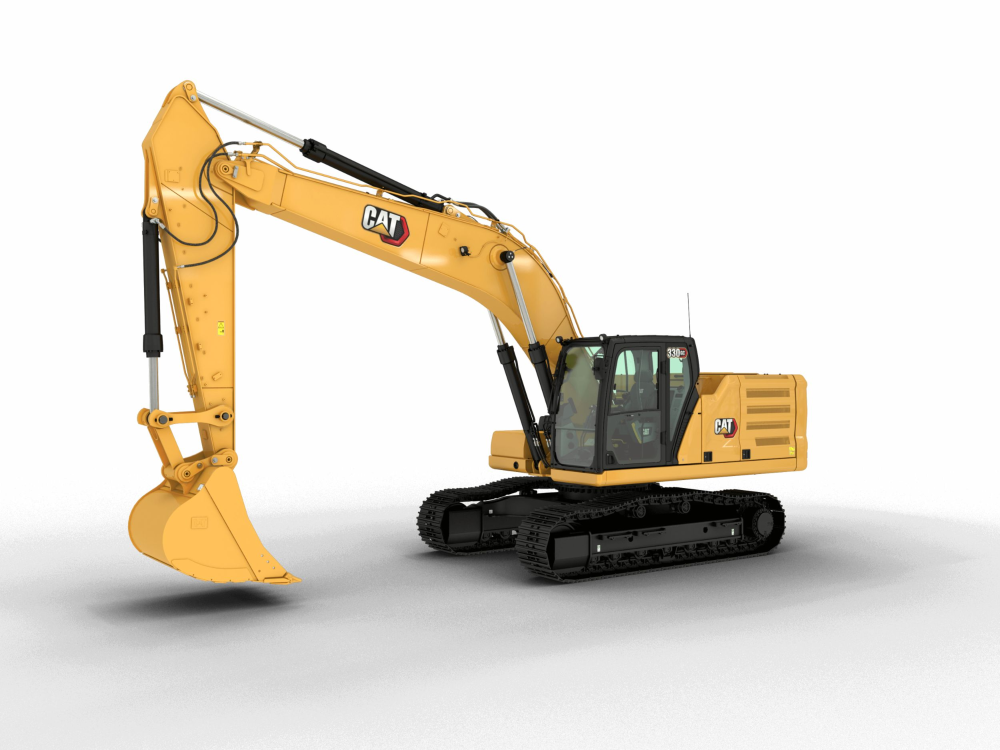

Medium Excavators Caterpillar 330 GC

Cab Monitor Improvements

Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Smaller app tiles to view more apps in one screen.
When navigating the menu, scroll position will be remembered.
While menu is shown and lever is moved, camera view will be shown.

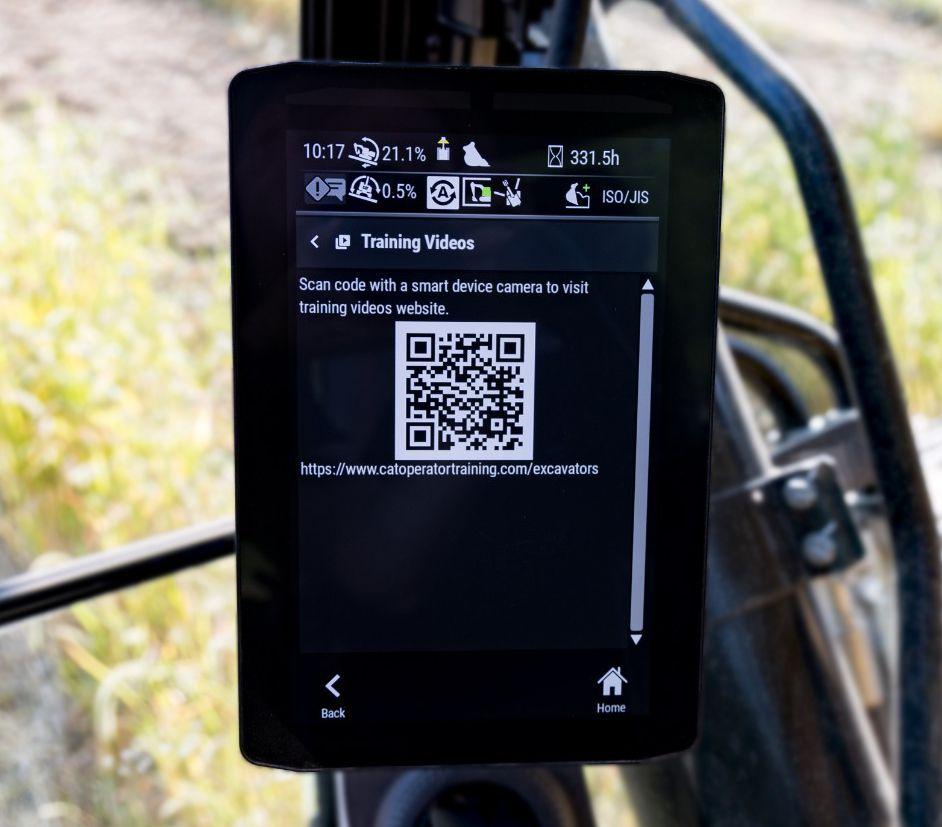

Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H

Help reduce fuel consumption by matching the excavator to the job - Eco and Smart mode allow for automatic recognition of engine and hydraulic power in specific digging conditions.
The C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards with an after-treatment system that requires no maintenance or downtime.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
Valve priority puts hydraulic pressure and flow where you command it to go for fast light- to medium-load cycle times.
Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat® attachments.

Work up to 3000 m (9,840 ft) above sea level without de-rating.
Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional – 32° C (–25° F) cold start package is available.
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Two levels of fuel filtration protect the engine from dirty diesel fuel.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

The cab has a wide seat that adjusts for operators of all sizes.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

Start the engine with a push button; use a Bluetooth® key fob, or the unique Operator ID function.
Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.
Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or with the aid of the jog dial control.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
Protect your hammer tool from overheating and rapid wear. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds - all to extend the tool’s service life.
Find the tool you need – even if it’s hidden beneath overgrowth or debris. The optional Bluetooth reader can search for any work tool equipped with Cat asset tracking devices up to a range of 60 meters (200 feet).
Make moving the excavator much easier with Cat® Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.

Expect lower maintenance costs compared to the 330F.
Do all daily maintenance inspections at ground level.
Check engine oil level quickly and safely with the ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
No required maintenance on the Cat® Clean Emissions Module.

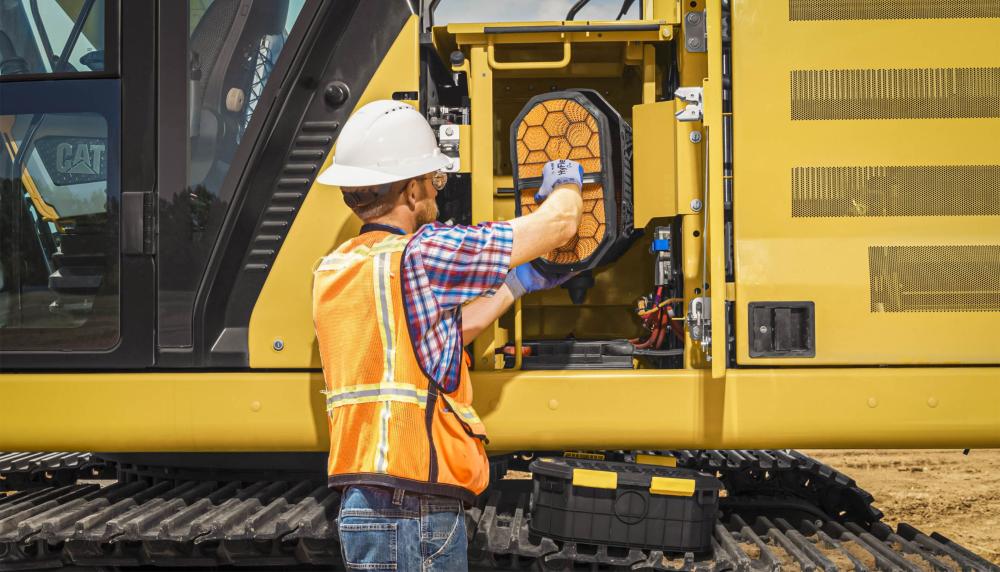

Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours.
The latest hydraulic oil filter provides high filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance, along with parts needed, so you don't experience any unnecessary downtime.
S·O·S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

Access 100% of daily maintenance inspection points from ground level – no need for you to climb on top of the excavator.
Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
The standard ROPS cab meets ISO 12117-2:2008 requirements.

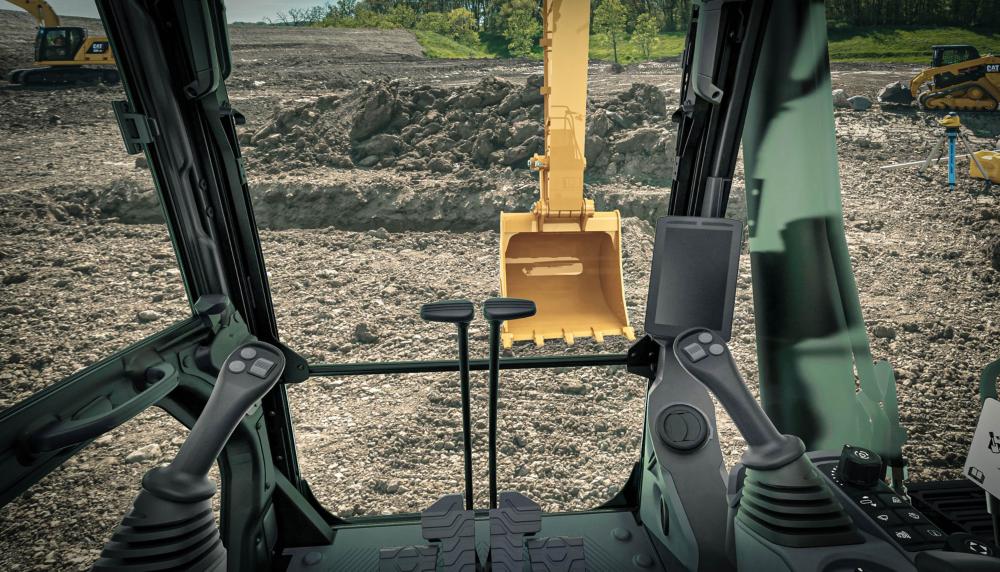

Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.

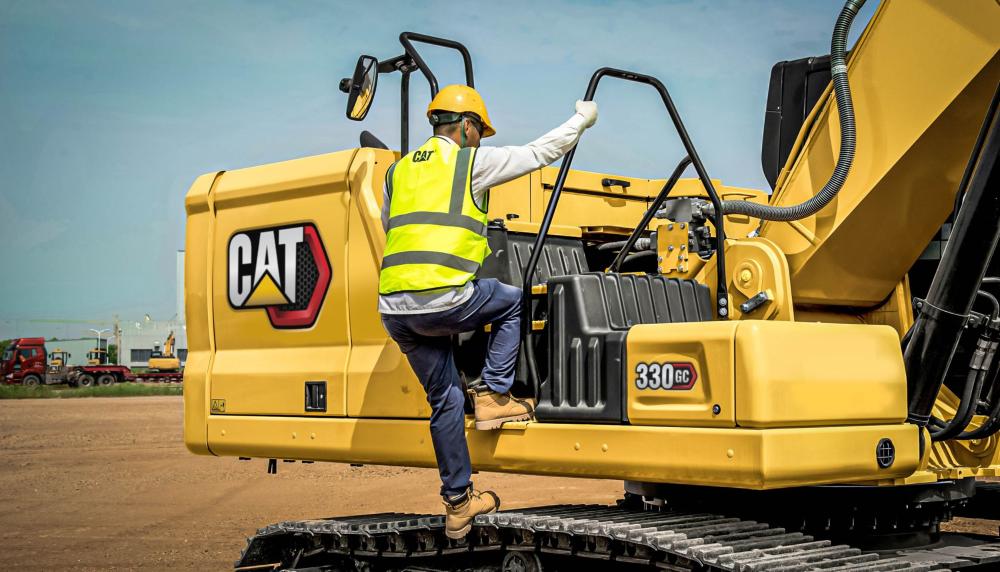

The latest right service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

* Data field availability can vary by equipment manufacturer.

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:

Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.

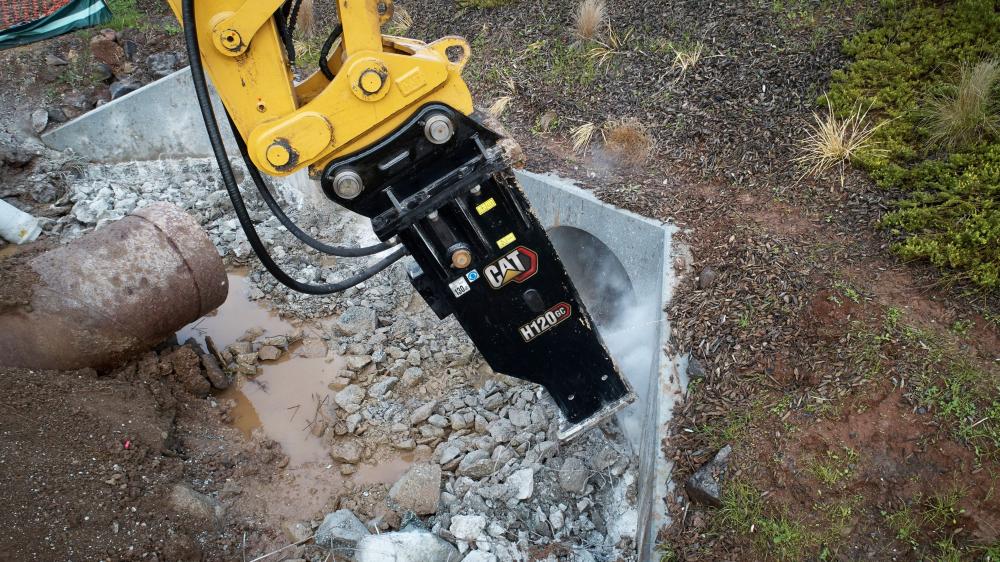

Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.
Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.
Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.
Compactors (Vibratory Plate): Compact soil, sand, gravel and asphalt quickly and efficiently to create a stable foundation. Vibratory plate compactors deliver high-impact force and even coverage, reducing air pockets and improving surface integrity for trenching, roadwork, and patching.
Rotary Cutters: Get accurate, precise work with less noise and vibration. Cat® Rotary Cutters deliver high torque and precision for a range of applications: demolition, grinding, profiling, trenching, tunneling, and quarrying. Specifically designed for excavator-mounted use to handle heavy-duty materials like concrete, rock, and dense brush with ease.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Thumbs: Add gripping capability to your buckets, enabling precise and secure handling of irregular materials like rocks, stumps, and debris. Perfect for loading, sorting, and placing tasks, they enhance versatility and control. Hydraulic or mechanical options allow for flexible operation across job types.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Please note: Not all attachments are available in all regions. Contact your Cat Dealer for details.

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
The 330 GC emits lower CO2 emissions compared to the previous 330F.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat VisionLink™ displays the CO₂emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
When engaged, one-touch idle helps operators conserve fuel and reduce greenhouse gas emissions by lowering engine speed when the machine is under no load and return to normal operating speed when desired.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cat Scheduled Oil Sampling (S·O·S^SM) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Net Power - ISO 9249	150 kW	201 hp
Net Power - ISO 9249 (DIN)	204 hp (metric)	204 hp (metric)
Engine Model	Cat® C7.1
Engine Power - ISO 14396	151 kW	202 hp
Engine Power - ISO 14396 (DIN)	205 hp (metric)	205 hp (metric)
Bore	105 mm	4 in
Stroke	135 mm	5 in
Displacement	7.01 l	428 in³
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Operating Weight	30900 kg	68100 lb
Note	Long undercarriage, Reach boom, R3.2 m (10'6") stick, Heavy Duty (HD) 1.54 m³ (2.01 yd³) bucket, 800 mm (31") triple grouser shoes and 6700 kg (14,770 lb) counterweight.

Maximum Digging Depth	7260 mm	23.8 ft
Boom	Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6")
Bucket	HD 1.54 m³ (2.01 yd³)
Maximum Reach at Ground Level	10690 mm	35.1 ft
Maximum Cutting Height	10020 mm	32.9 ft
Maximum Loading Height	6930 mm	22.8 ft
Minimum Loading Height	2280 mm	7.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	7100 mm	23.3 ft
Maximum Vertical Wall Digging Depth	6030 mm	19.8 ft
Bucket Digging Force - ISO	179 kN	40200 lbf
Stick Digging Force - ISO	126 kN	28300 lbf

Main System - Maximum Flow	560 L/min (148 gal/min)
Maximum Pressure - Equipment	35000 kPa	5075 psi
Maximum Pressure - Travel	35000 kPa	5075 psi
Maximum Pressure - Swing	28400 kPa	4120 psi

Swing Speed*	11.5 r/min	11.5 r/min
Maximum Swing Torque	105 kN·m	77370 lbf·ft
Note (1)	*For CE-marked machine default value may be set lower.

Fuel Tank Capacity	474 l	125.2 gal (US)
Cooling System	25 l	6.6 gal (US)
Engine Oil	25 l	6.6 gal (US)
Swing Drive - Each	10 l	2.6 gal (US)
Final Drive - Each	5.5 l	1.5 gal (US)
Hydraulic System - Including Tank	310 l	81.9 gal (US)
Hydraulic Tank	147 l	38.8 gal (US)
DEF Tank	41 l	10.8 gal (US)

Boom	Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6")
Bucket	HD 1.54 m³ (2.01 yd³)
Shipping Height - Top of Cab	3050 mm	10 ft
Handrail Height	3050 mm	10 ft
Shipping Length	10420 mm	34.2 ft
Tail Swing Radius	3130 mm	10.3 ft
Counterweight Clearance	1110 mm	3.7 ft
Ground Clearance	490 mm	1.6 ft
Track Length	4860 mm	15.11 ft
Length to Center of Rollers	3990 mm	13.1 ft
Track Gauge	2590 mm	8.6 ft
Transport Width	3190 mm	10.5 ft

Detalle Productos Cat

330 GC Excavator | 30 Ton Excavator / Digger

Low Fuel Consumption

Cab Design for Safety

Lower Maintenance Costs

Low CO2 Emissions

Latest Features

Performance and Productivity

Built to Perform

Designed for Operators

Simple to Operate

Lower Maintenance Costs

Safely Home Every Day

Take the Guesswork out of Managing Your Equipment

Attachments

Sustainability

Engine

Weights

Working Ranges and Forces

Hydraulic System

Swing Mechanism

Service Refill Capacities

Dimensions

Air Conditioning System

Sustainability

You might also be interested in:

320

320 GC

323

326

330

335

Compatible products:

CTV15-1000 Clamshell Grapple

CTV15-1200 Clamshell Grapple

CTV15-1500 Clamshell Grapple

CTV15-1700 Clamshell Grapple

CTV15-1900-BOCE Clamshell Grapple

CTV15-1900 Clamshell Grapple

CTV15-2300 Clamshell Grapple

CTV20-1300 Clamshell Grapple

CTV20-1500-BOCE Clamshell Grapple

CTV20-1500 Clamshell Grapple

CTV20-1700 Clamshell Grapple

CTV20-1900 Clamshell Grapple

CTV20-2300-BOCE Clamshell Grapple

CTV20-2300 Clamshell Grapple

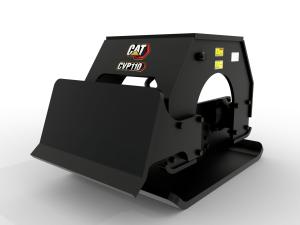

CVP110
