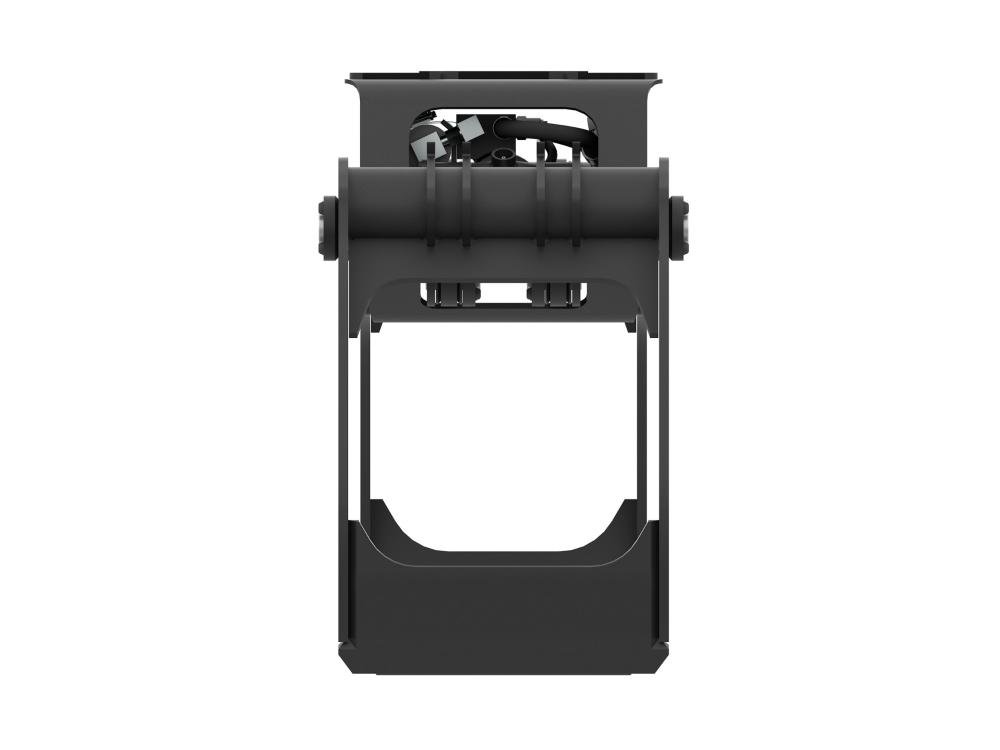

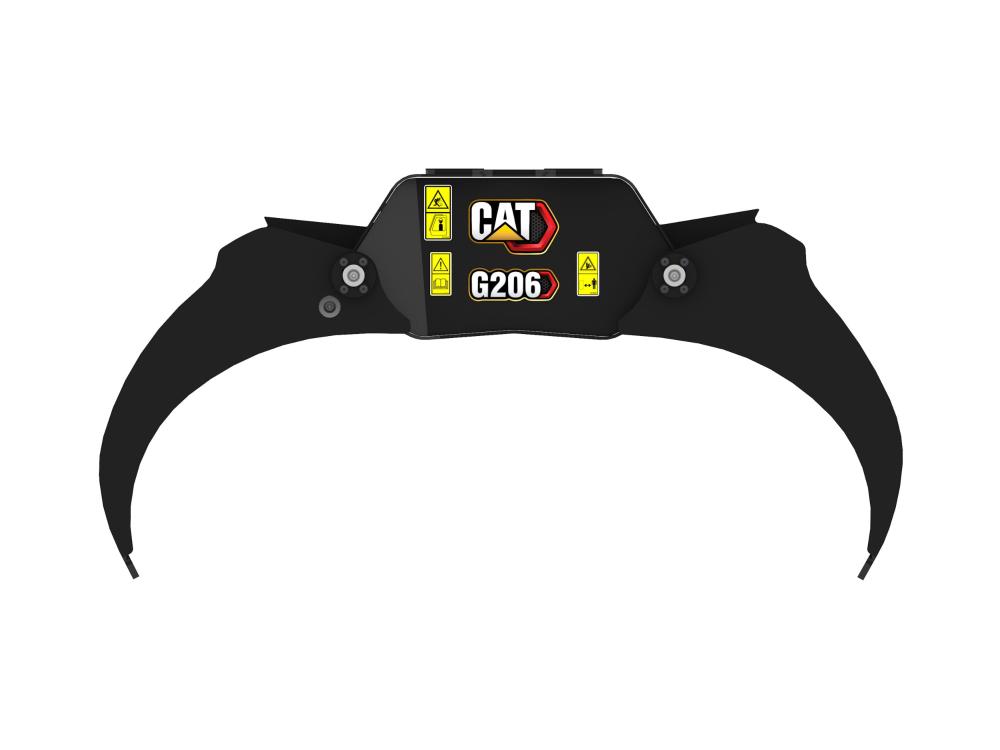

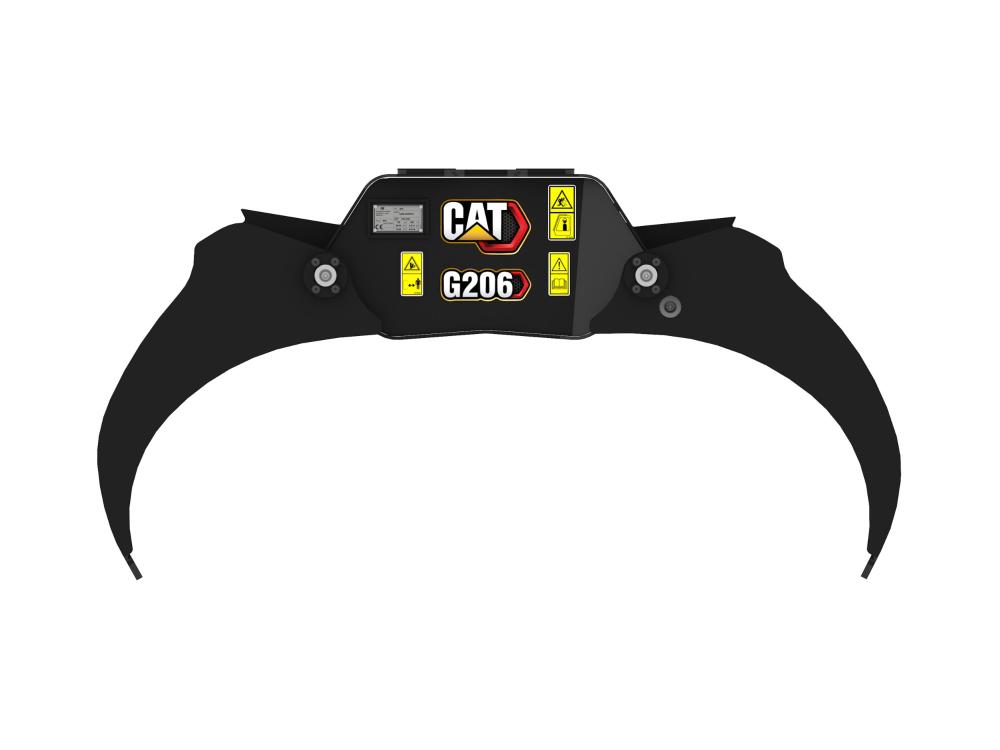

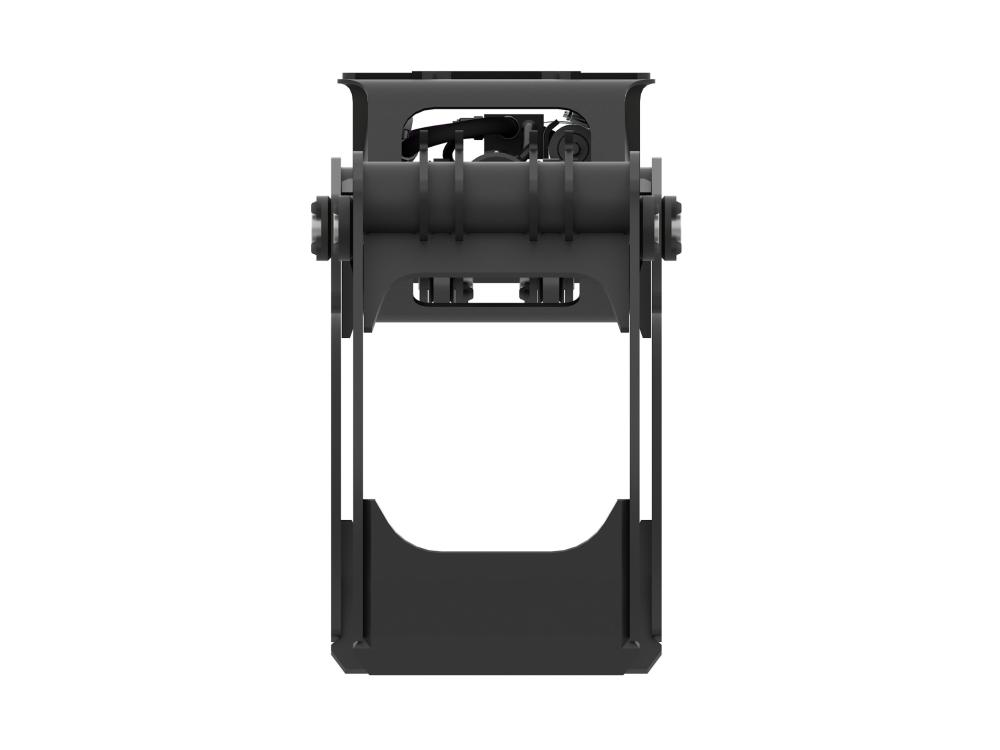

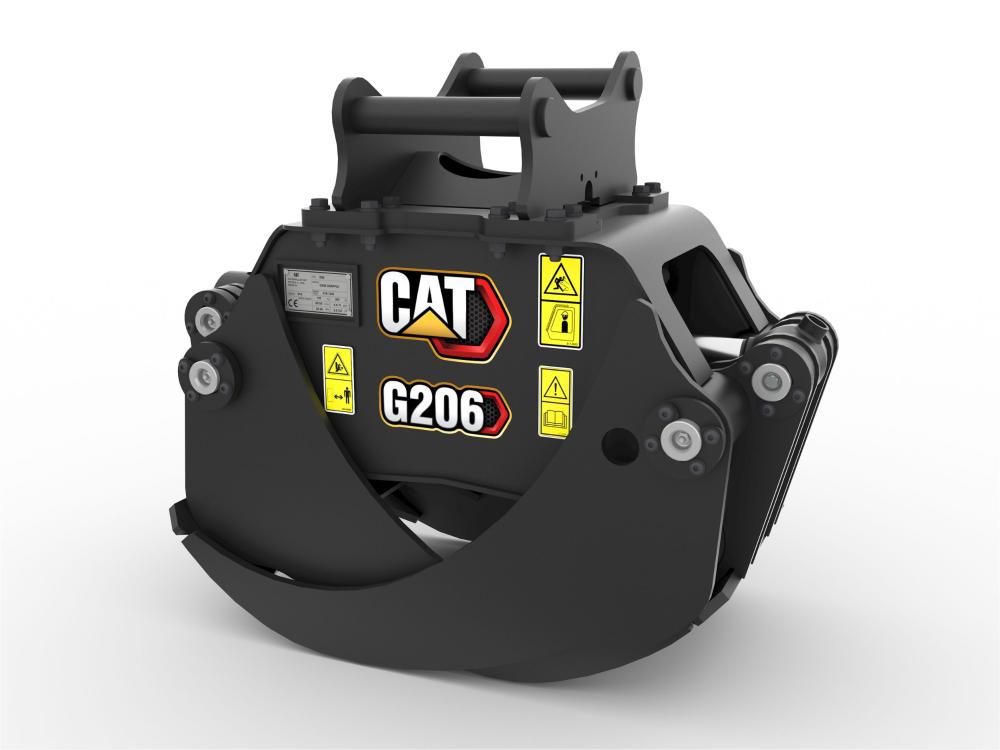

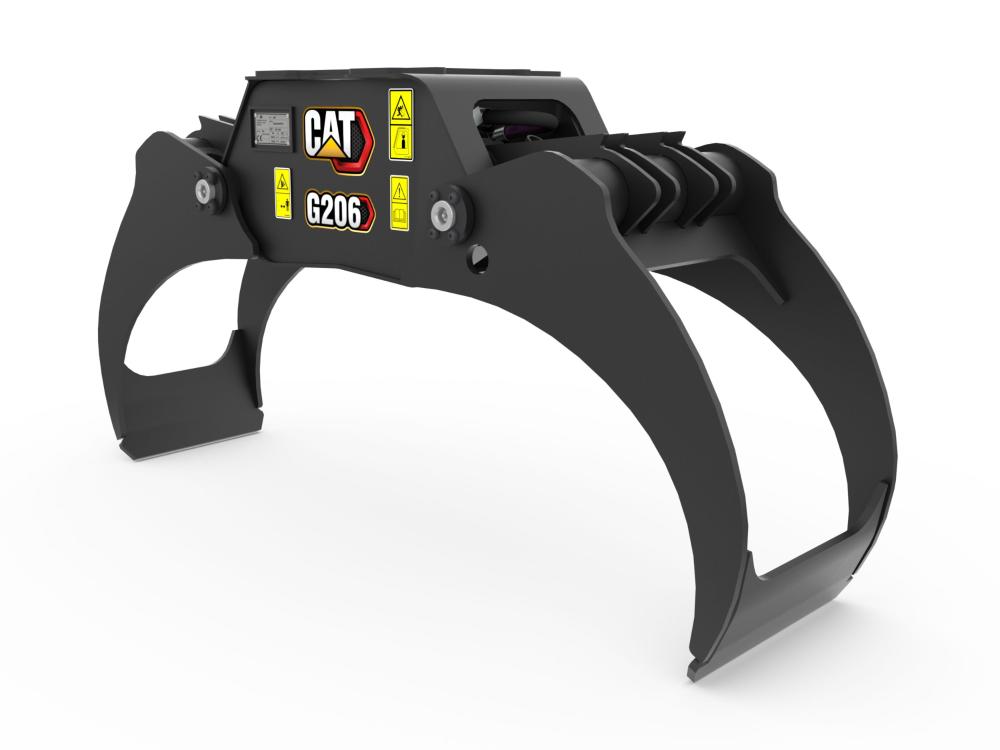

G206 Multi-Purpose Grapple

Units of measurement :

Metric

Imperial

Grapple Area

0.2 m²

Weight

182 kg

Machine Class

5-6 Ton Mini Excavators

Availability

Purchase Rental Used

Cat® Multi-Purpose Grapples are designed to allow maximum maneuverability with Cat Tiltrotators. The integrated bracket has a minimal offset to optimize the performance of thegrapplefunctionality. The Multi-Purpose Grapple works best in material handling applications where irregular surface materials are used, such as concrete pipe, curbs, trees, brush and other hardscape used in landscaping.

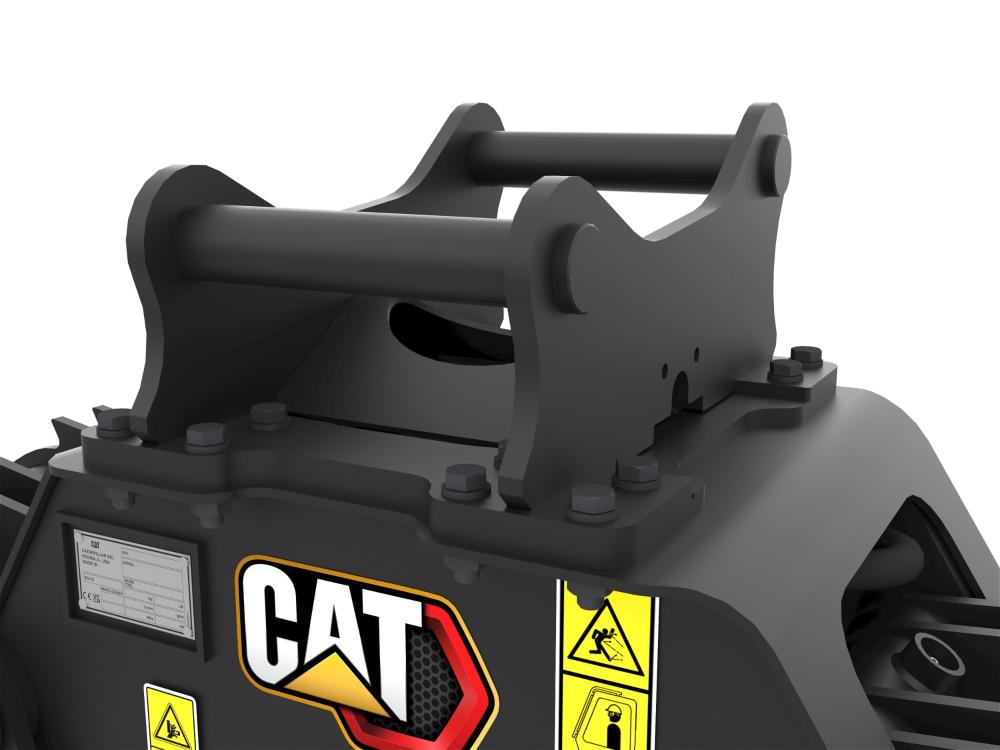

Integrated Bracket

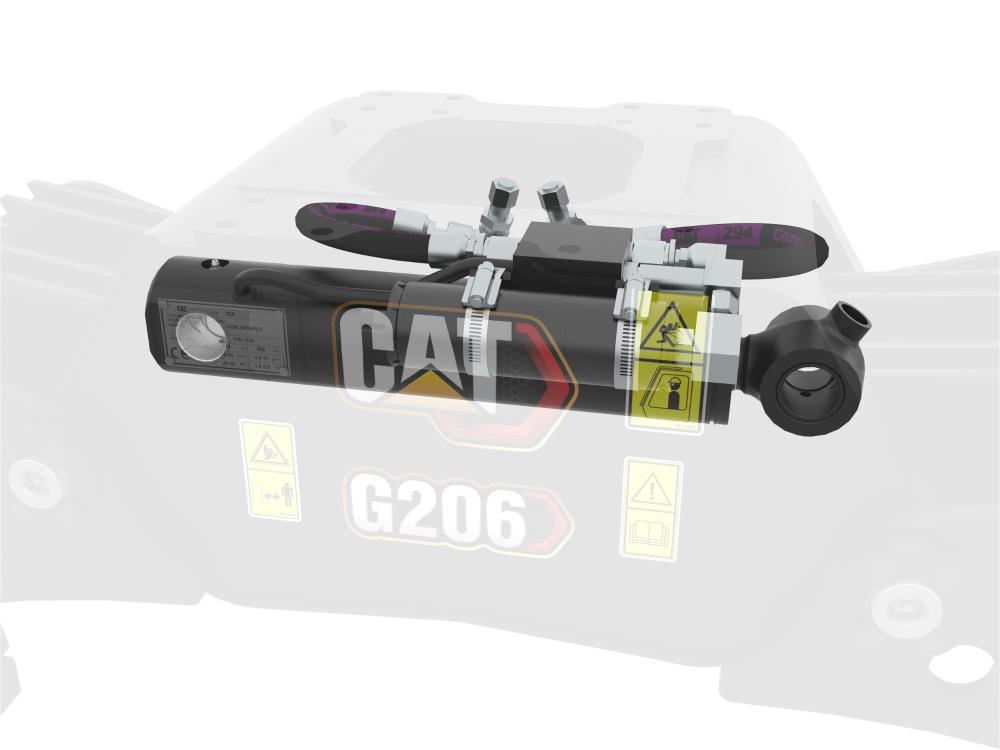

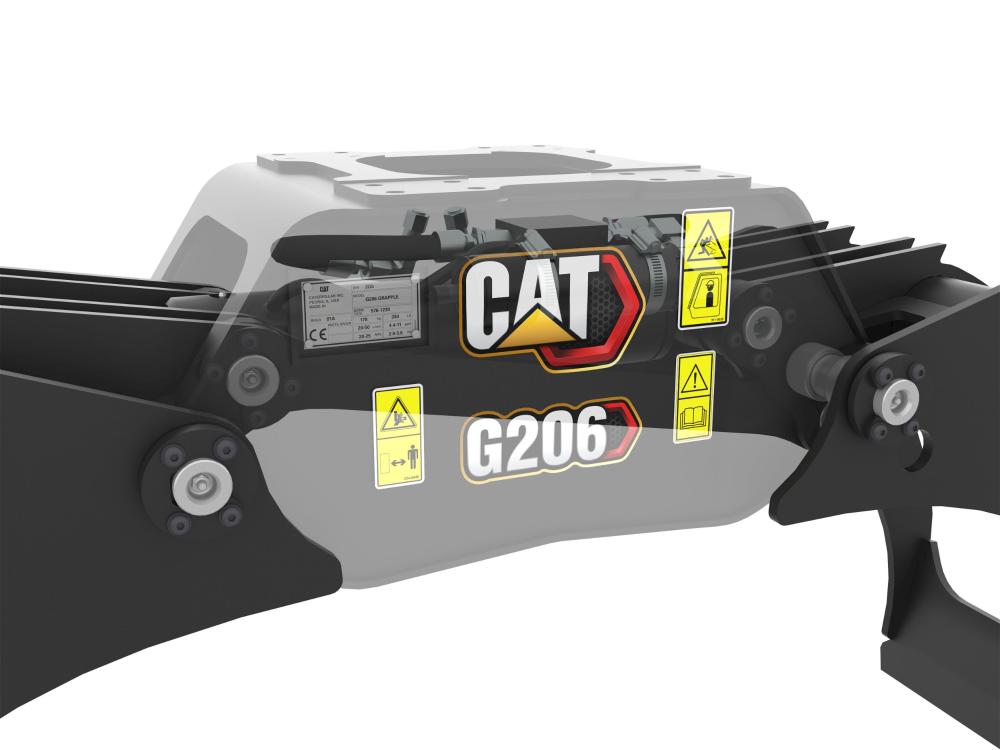

Integrated Cylinder Load Holding Valve

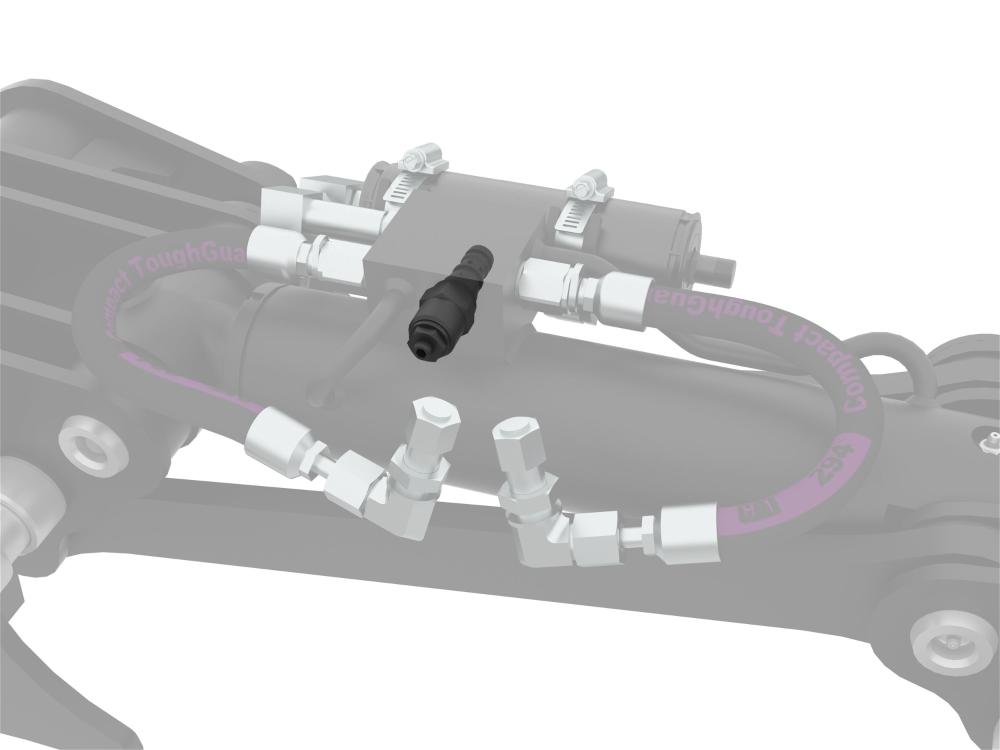

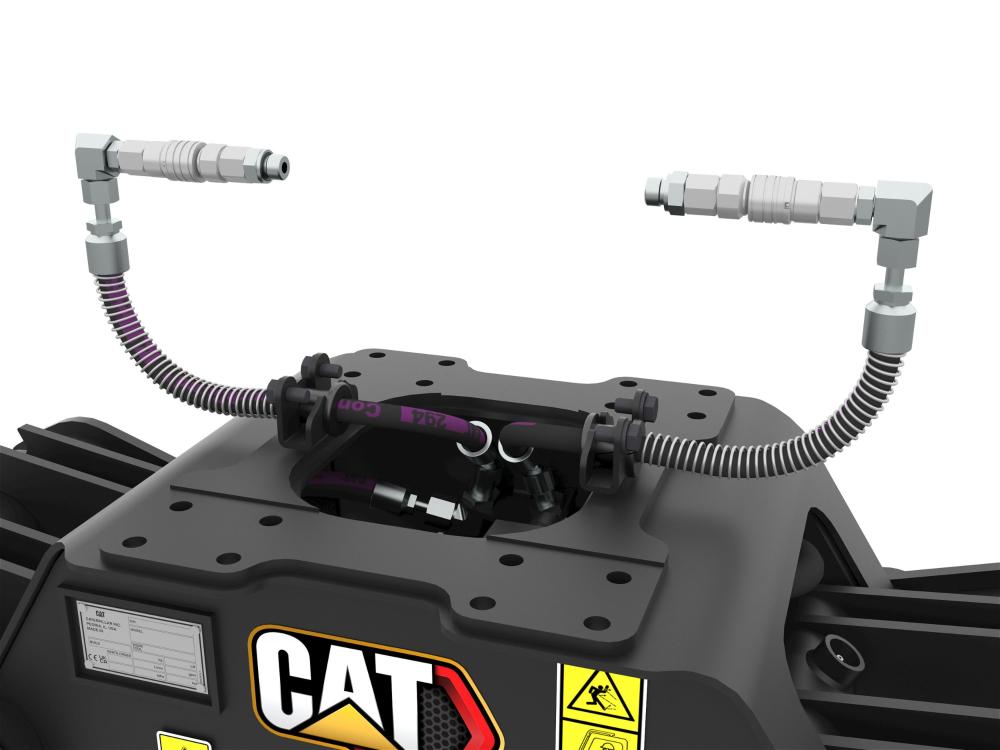

Integrated Jumper Lines

Hard Mounted Piston Accumulator

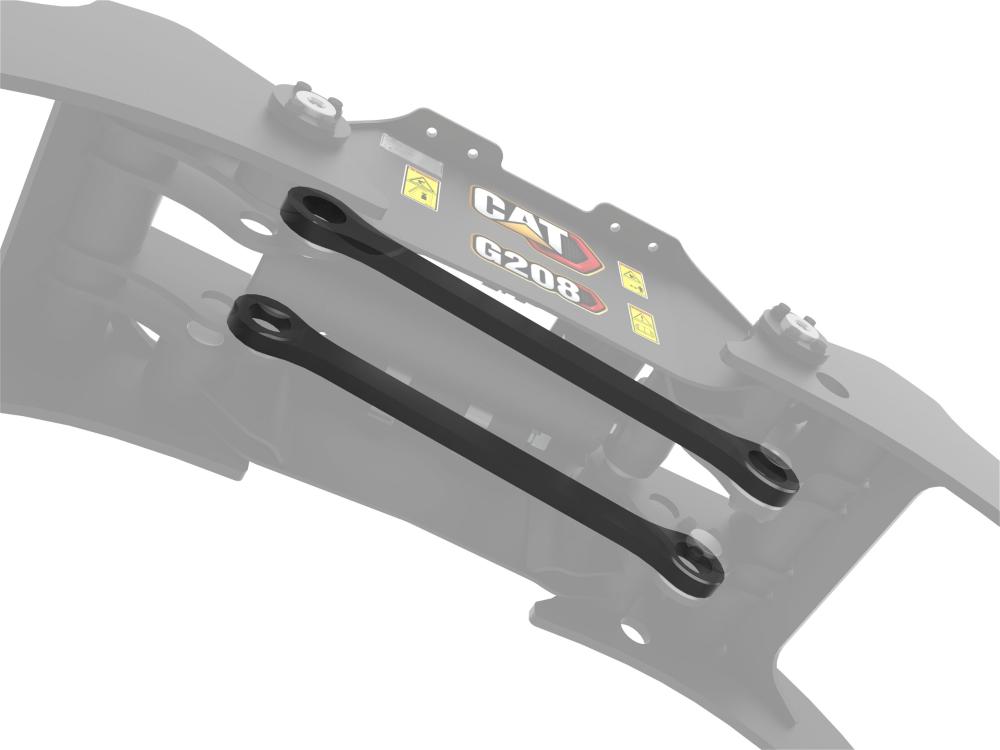

Double Connecting Rods

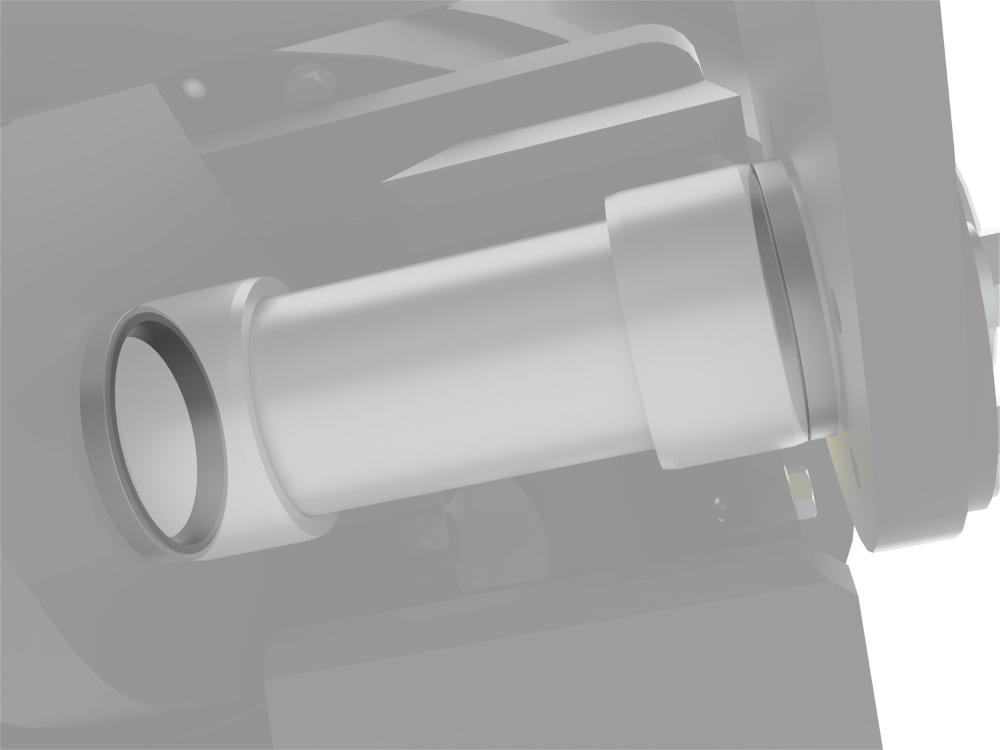

Pins and Bushings

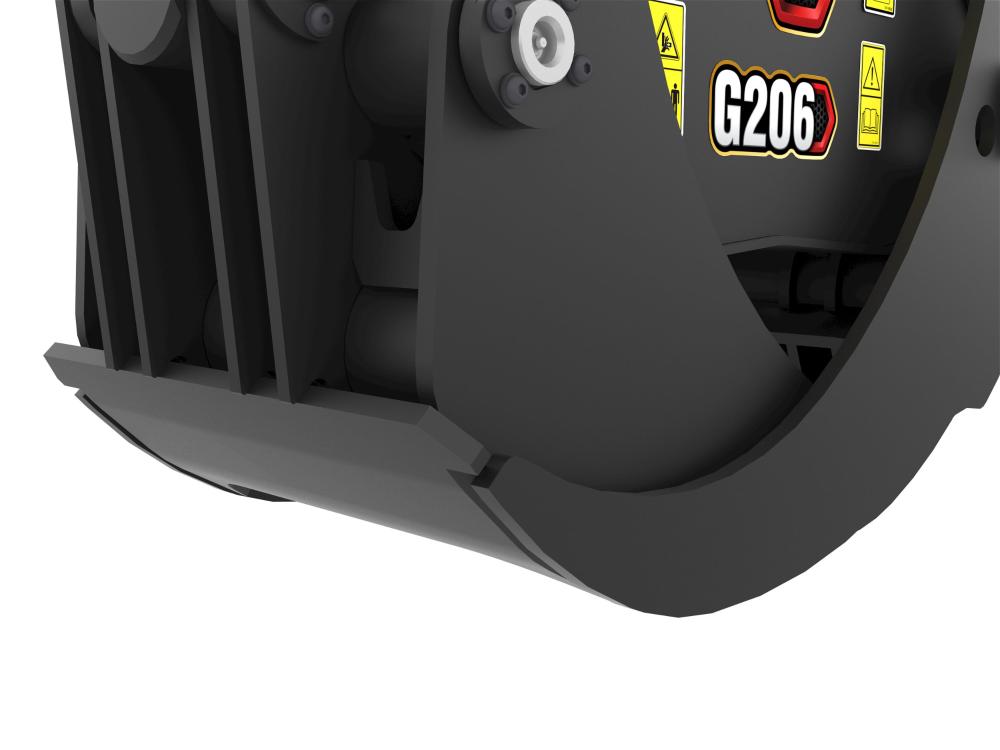

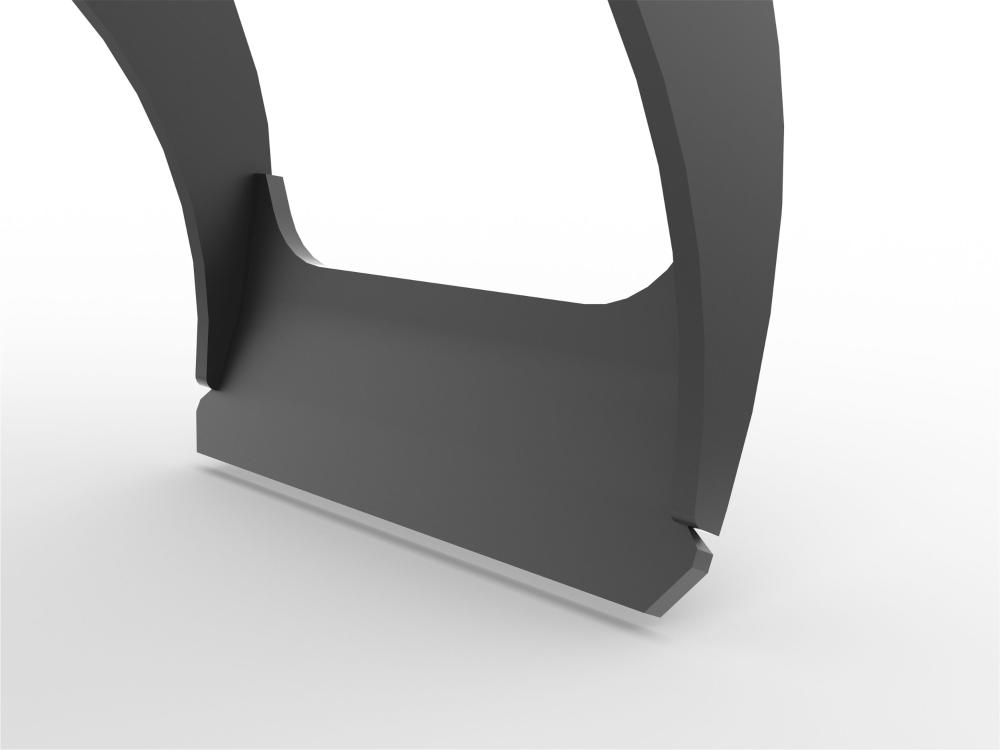

High Strength Steel Grapple Arms

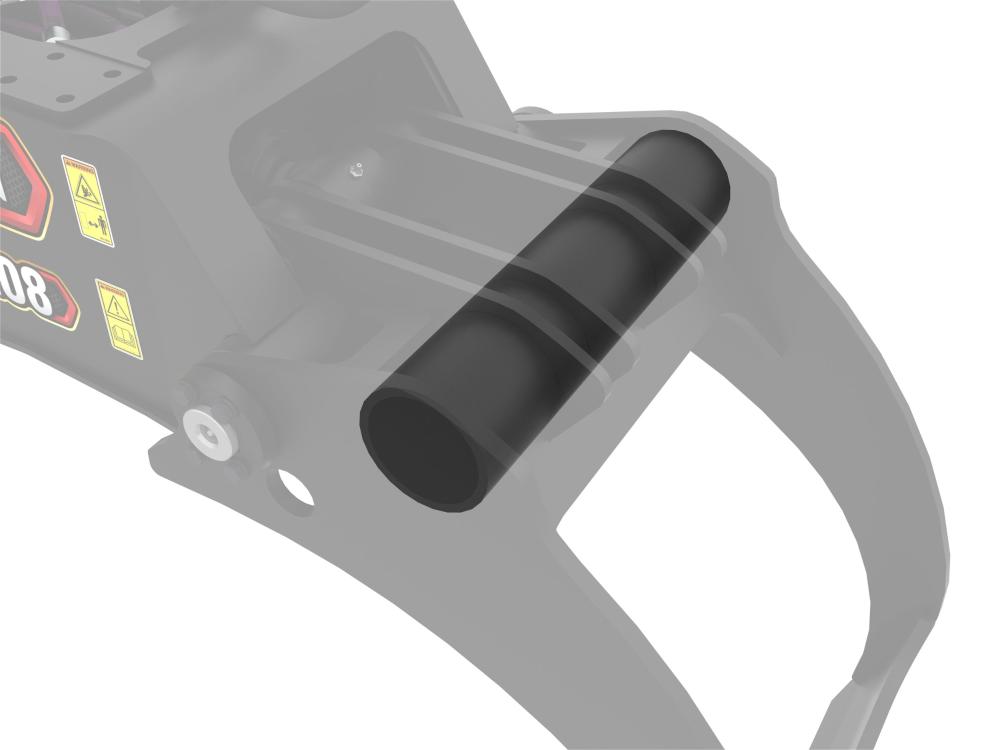

Torque Tube

Double Mechanical Stops

Welded Box Structure

Grapple Stability

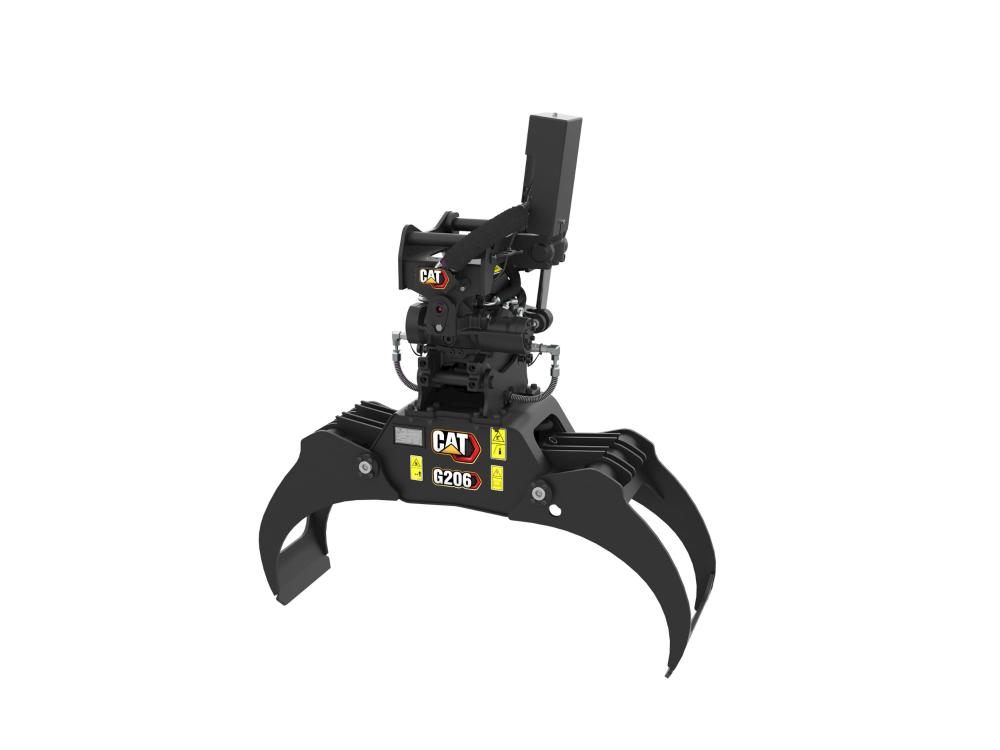

Optimal TRS6 Matching

Integrated bracket specifically designed for the hydraulic TRS attachments to ensure load forces are always evenly distributed providing a smoother operation.

Multi-Purpose Grapples Product Brochure.pdf

Others

Grapple Area	0.2 m²	2.2 ft²
Weight	182 kg	401.2 lb
Machine Class	5-6 Ton Mini Excavators
Maximum Jaw Opening	1290 mm	50.8 in
Overall Width (Jaws Open)	1445 mm	56.9 in
Overall Width (Jaws Closed)	784 mm	30.9 in
Overall Height (Jaws Open)	740 mm	29.1 in
Overall Height (Jaws Closed)	513 mm	20.2 in
Overall Depth	465 mm	18.3 in
Minimum Grip Diameter	78 mm	3.1 in
Wear Plate Thickness	12 mm	0.5 in
Arm Depth (Outer)	405 mm	15.9 in
Arm Depth (Inner)	351 mm	13.8 in
Interface Type	Tool Interface
Required Hydraulics	Tiltrotator Auxiliary
Edge Material	AR500/HB500
Maximum Closing Force	14.5 kN	3259.7 ft·lbf
Maximum Load Rating	3000 kg	6613.9 lb
