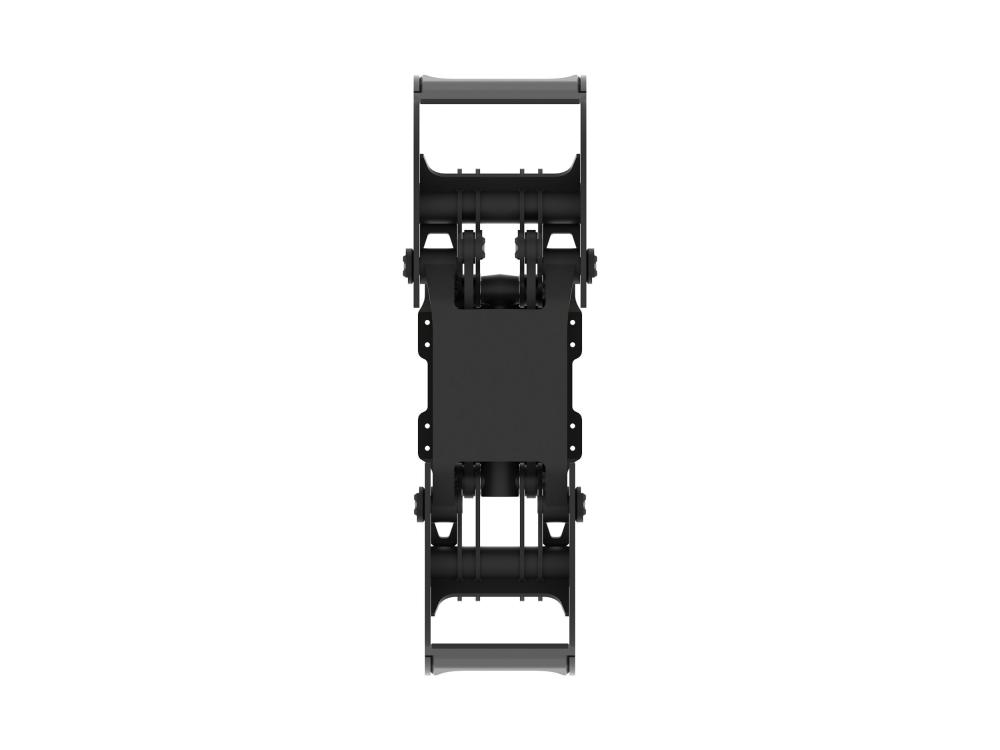

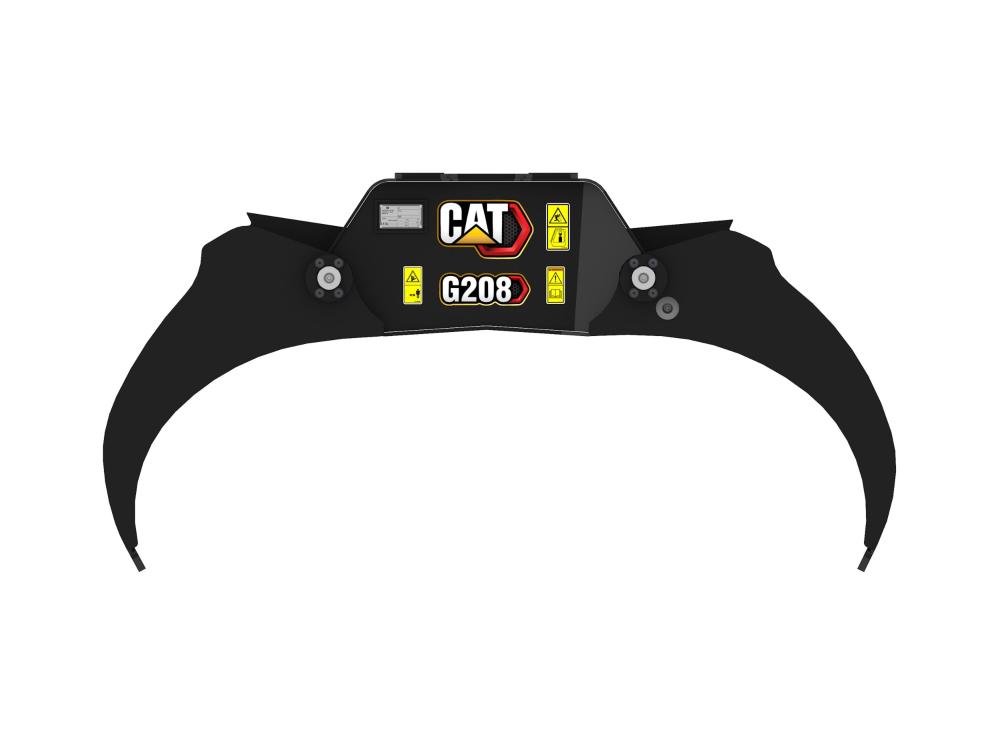

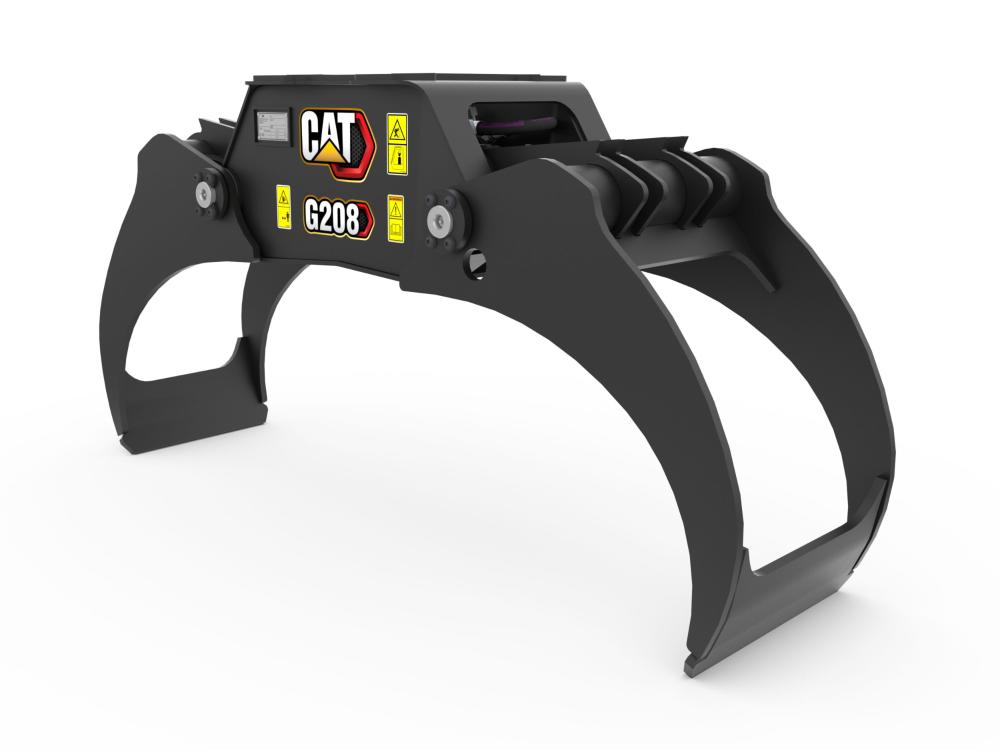

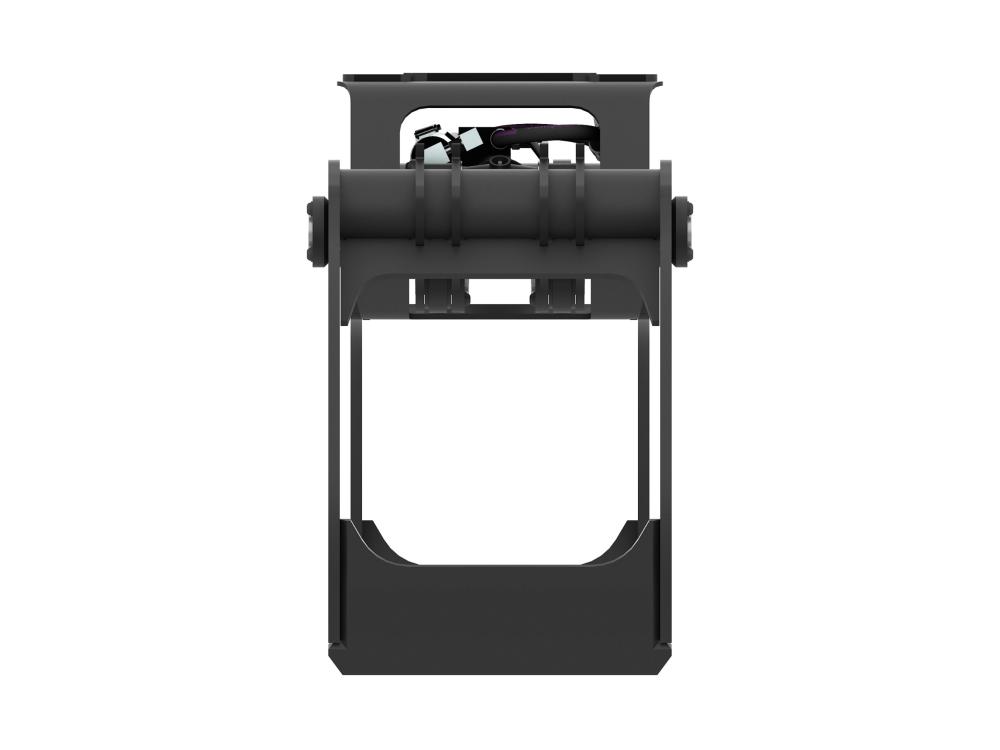

G208 Multi-Purpose Grapple

Units of measurement :

Metric

Imperial

Grapple Area

0.26 m²

Weight

281 kg

Machine Class

7-10 Ton Mini Excavators

Availability

Purchase Rental Used

Cat® Multi-Purpose Grapples are designed to allow maximum maneuverability with Cat Tiltrotators. The integrated bracket has a minimal offset to optimize the performance of thegrapplefunctionality. The Multi-Purpose Grapple works best in material handling applications where irregular surface materials are used, such as concrete pipe, curbs, trees, brush and other hardscape used in landscaping.

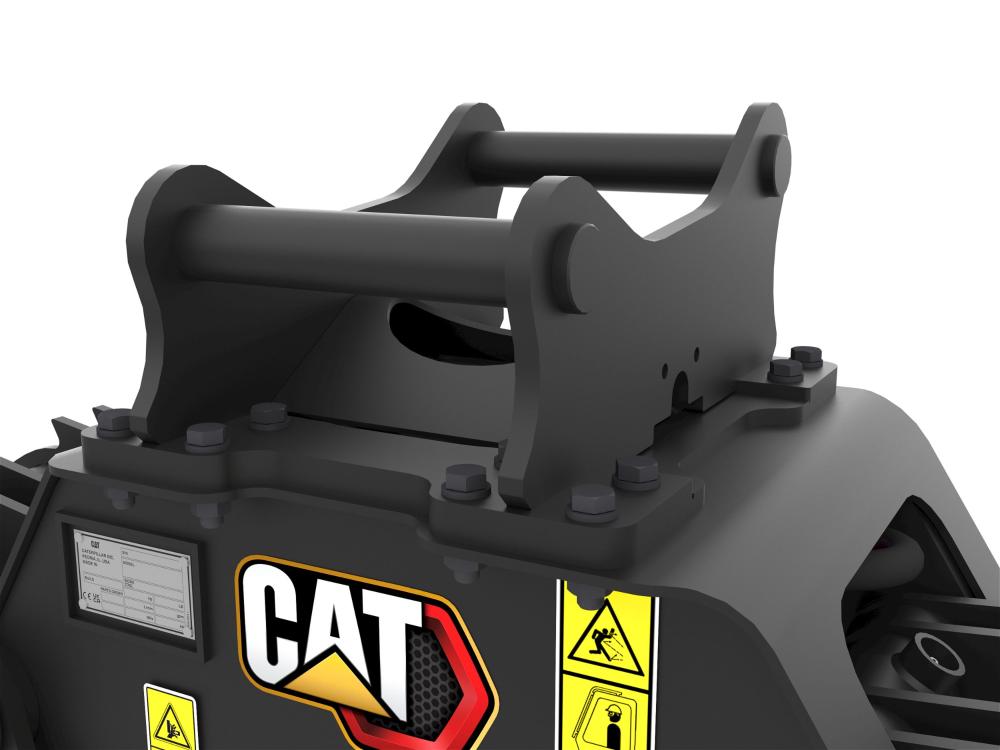

Integrated Bracket

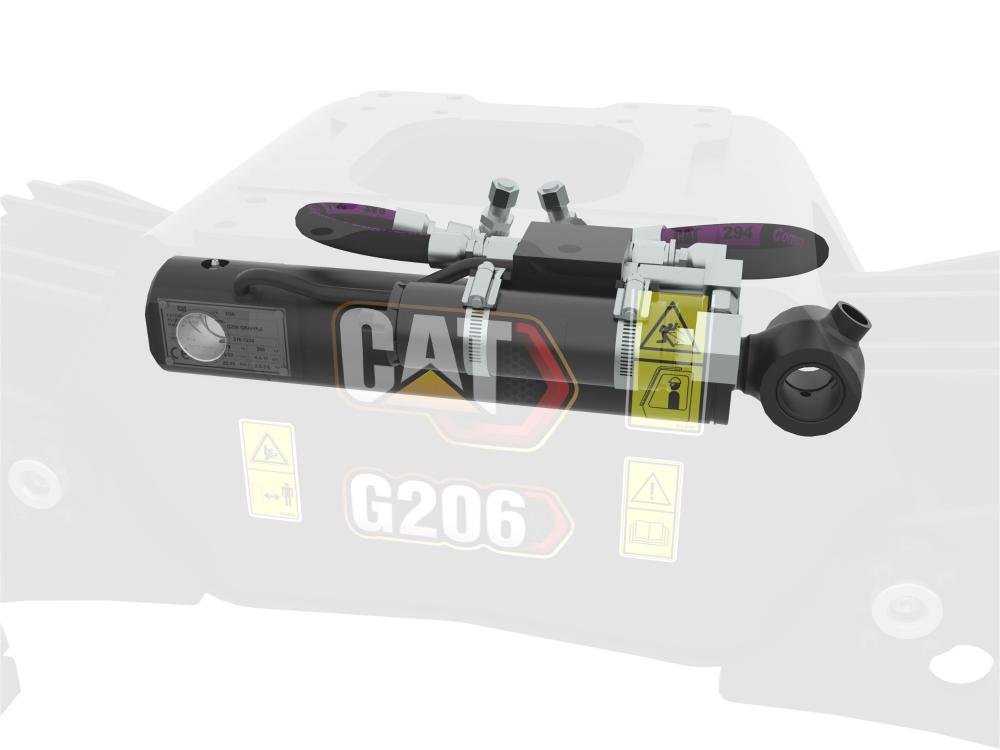

Integrated Cylinder Load Holding Valve

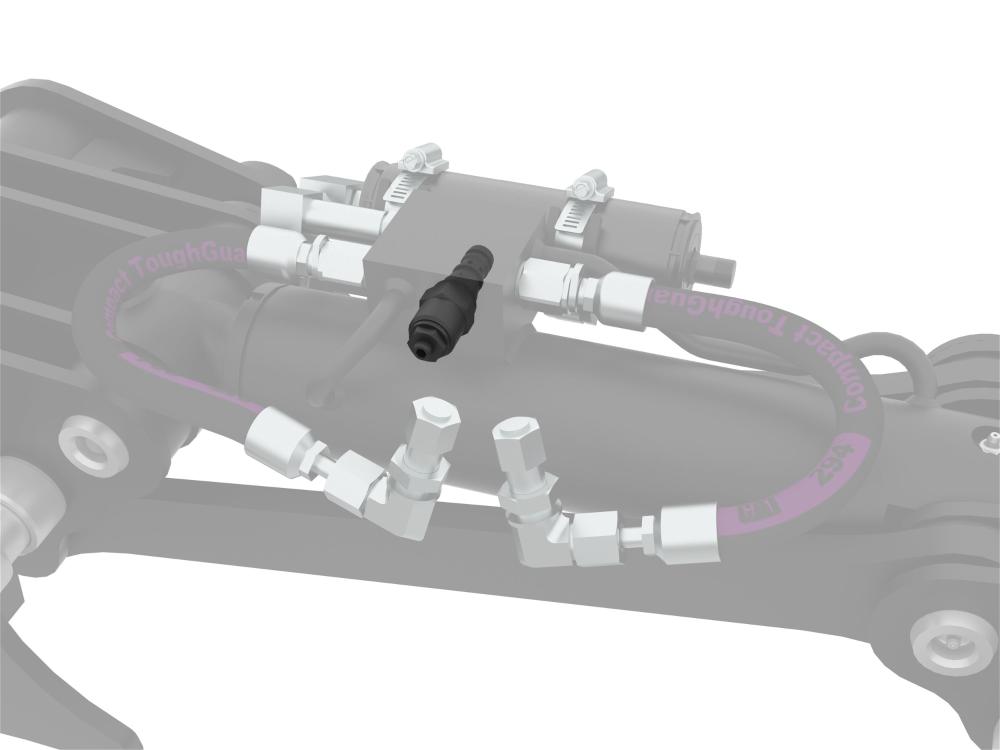

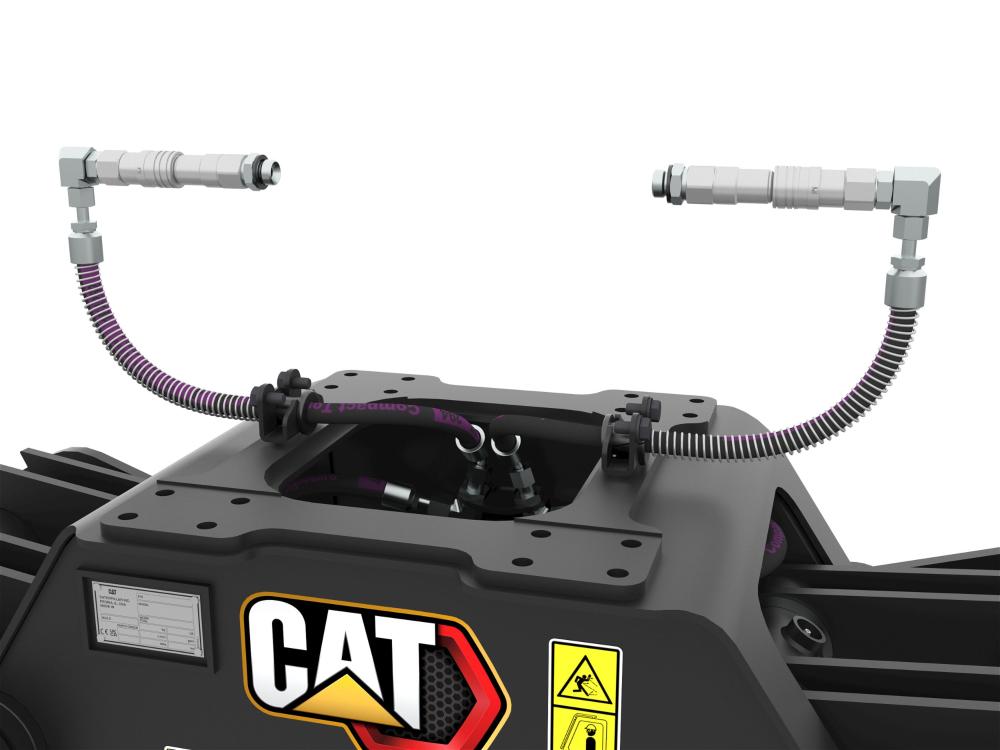

Integrated Jumper Lines

Hard Mounted Piston Accumulator

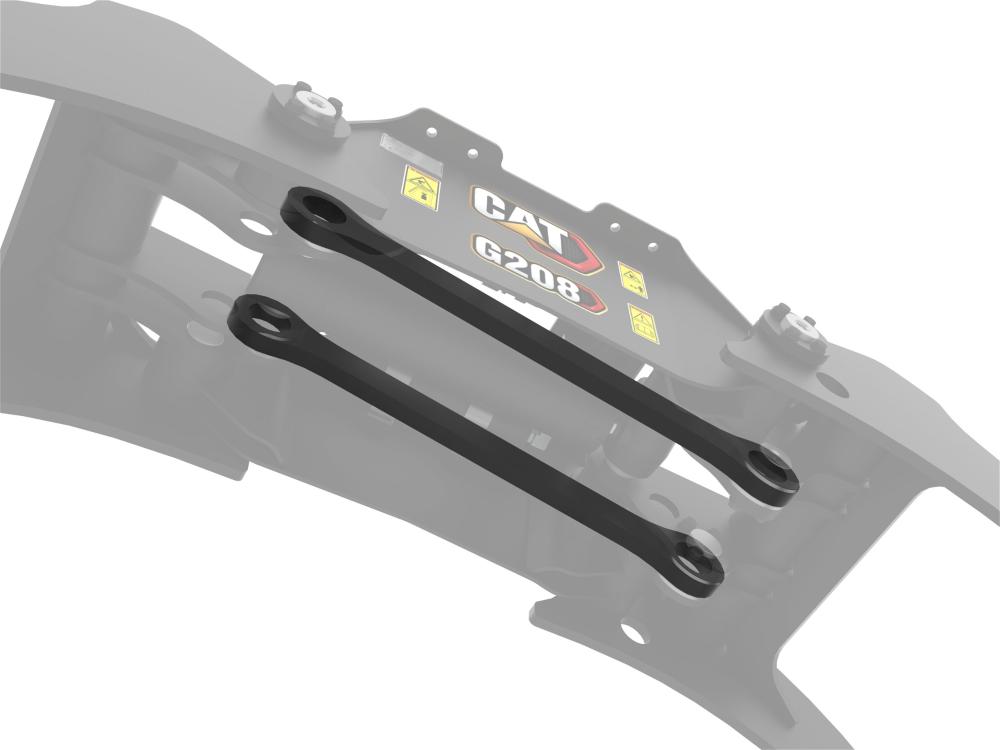

Double Connecting Rods

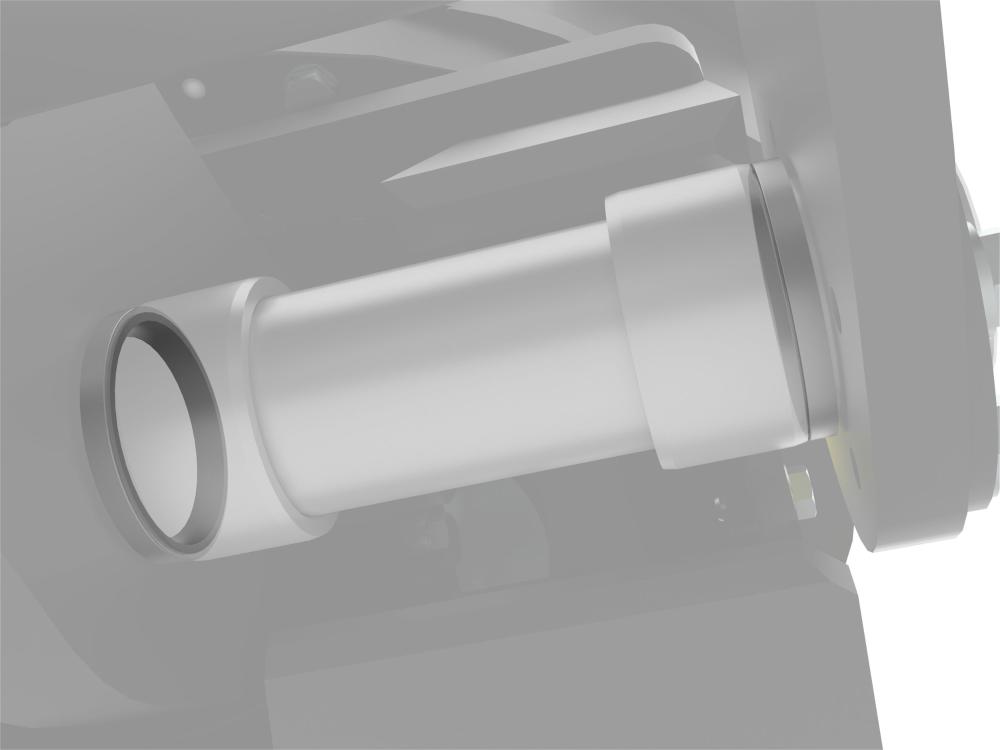

Pins and Bushings

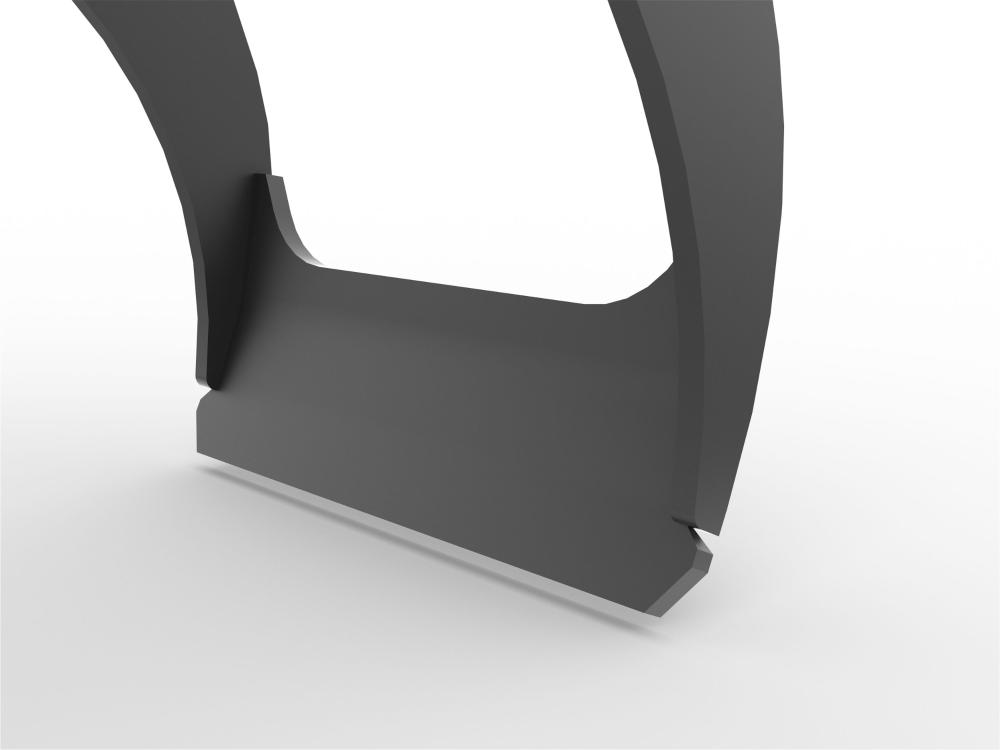

High Strength Steel Grapple Arms

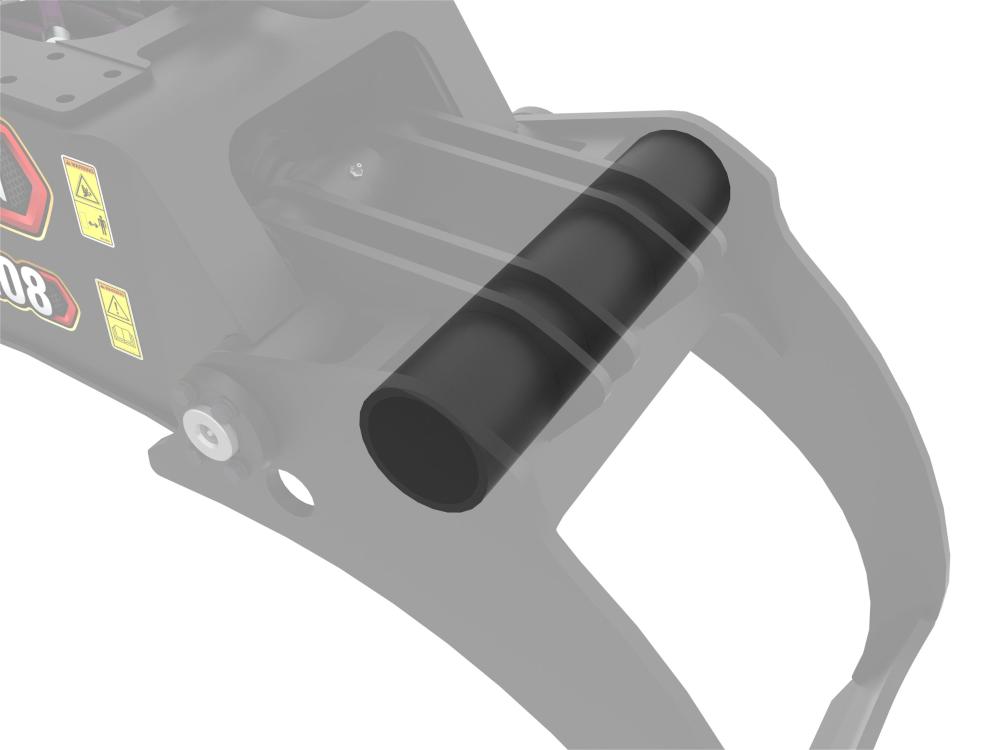

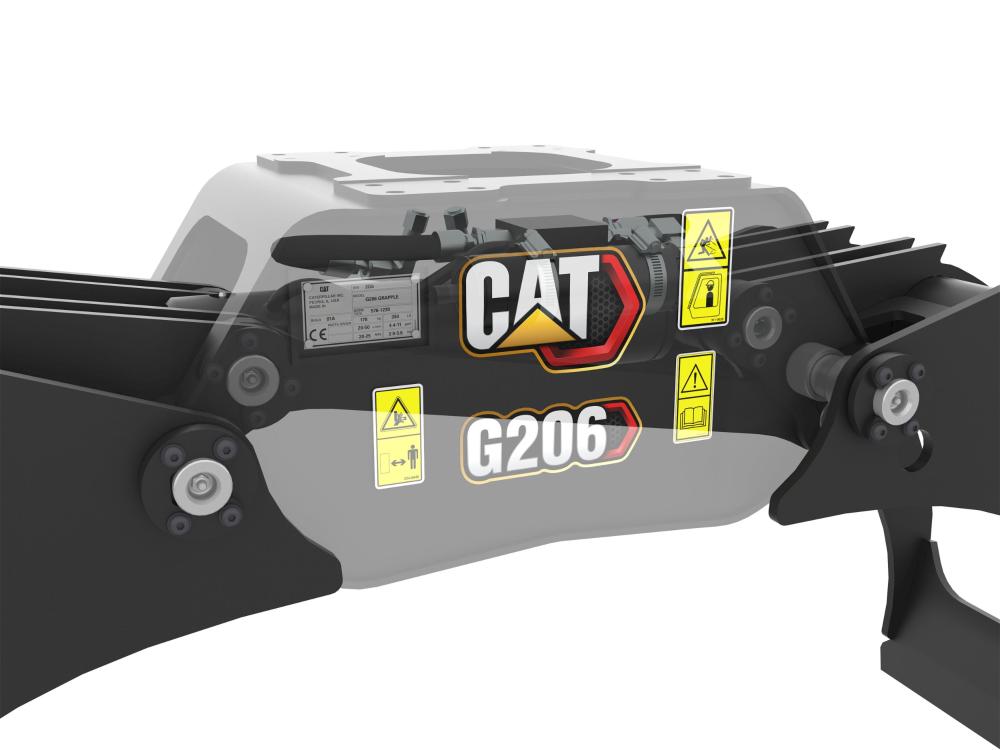

Torque Tube

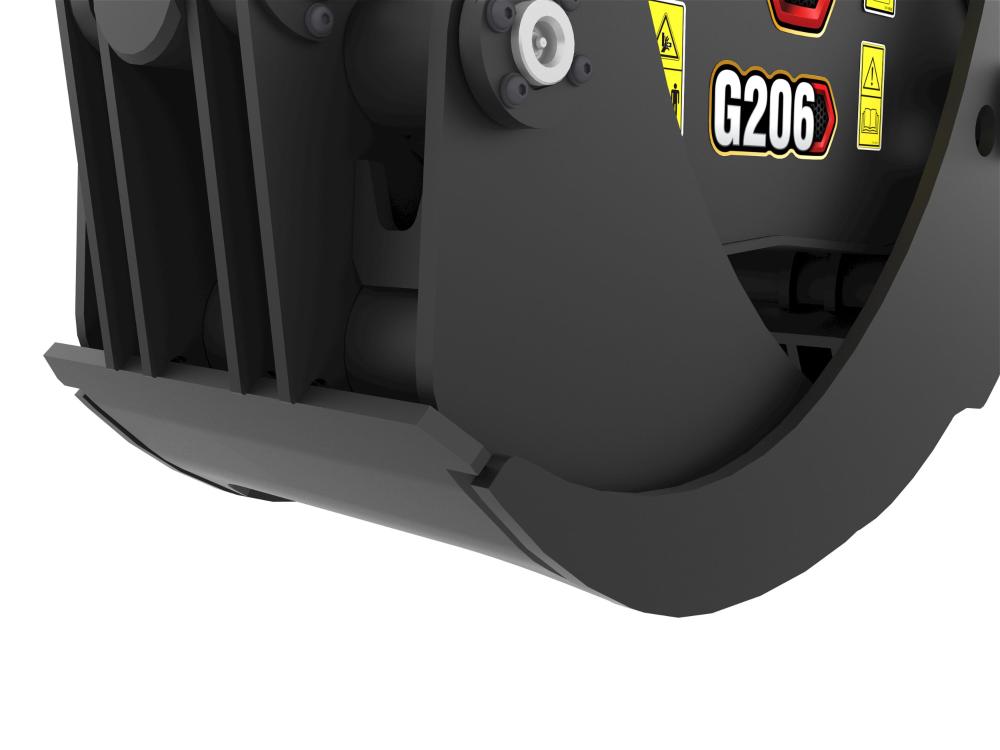

Double Mechanical Stops

Welded Box Structure

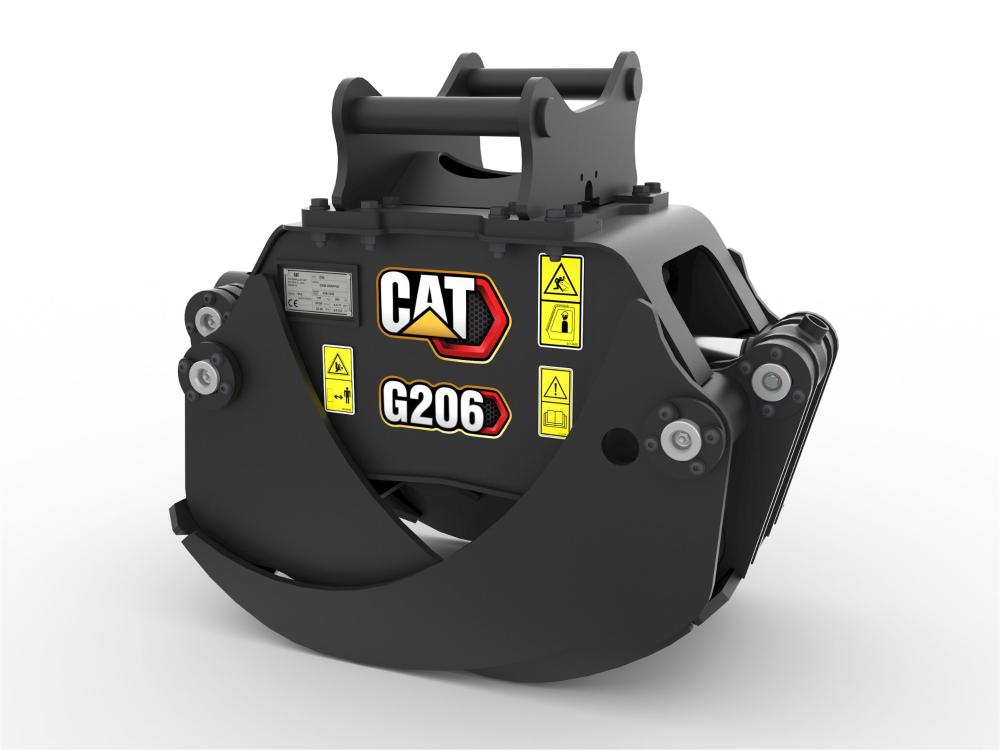

Grapple Stability

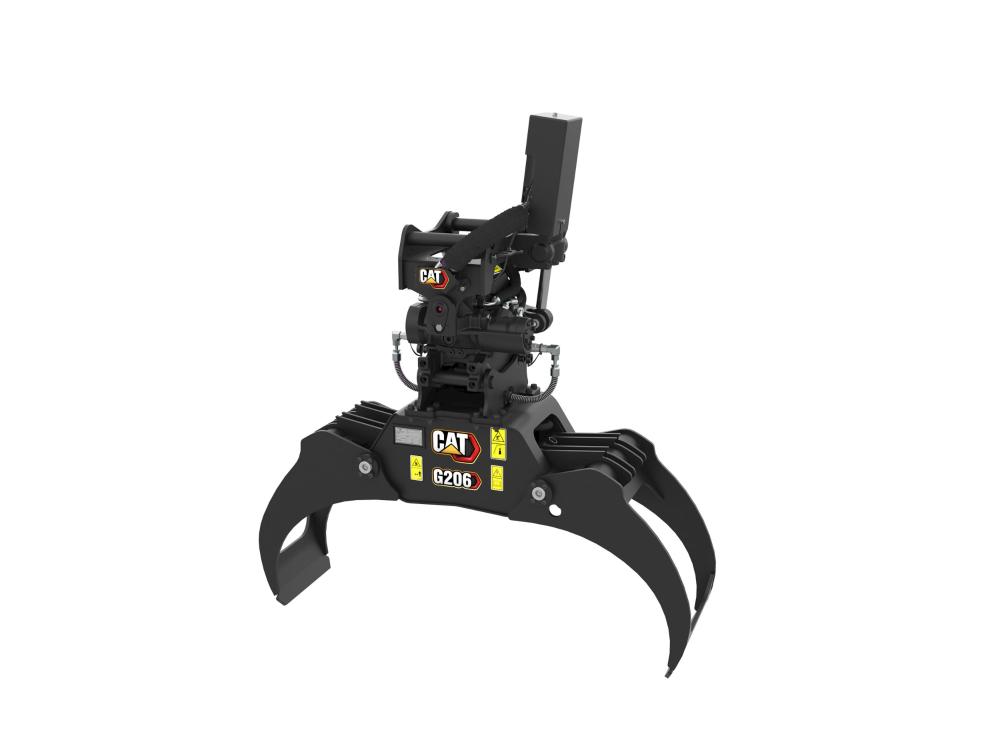

Optimal TRS8 Matching

Integrated bracket specifically designed for the hydraulic TRS attachments to ensure load forces are always evenly distributed providing a smoother operation.

Multi-Purpose Grapples Product Brochure.pdf

Others

Grapple Area	0.26 m²	2.8 ft²
Weight	281 kg	619.5 lb
Machine Class	7-10 Ton Mini Excavators
Maximum Jaw Opening	1500 mm	59.1 in
Overall Width (Jaws Open)	1673 mm	65.9 in
Overall Width (Jaws Closed)	903 mm	35.6 in
Overall Height (Jaws Open)	842 mm	33.1 in
Overall Height (Jaws Closed)	591 mm	23.3 in
Overall Depth	540 mm	21.3 in
Minimum Grip Diameter	100 mm	3.9 in
Wear Plate Thickness	16 mm	0.6 in
Arm Depth (Outer)	480 mm	18.9 in
Arm Depth (Inner)	418 mm	16.5 in
Interface Type	Tool Interface
Required Hydraulics	Tiltrotator Auxiliary
Edge Material	AR500/HB500
Maximum Closing Force	18.4 kN	4136.5 ft·lbf
Maximum Load Rating	4800 kg	10582.2 lb
