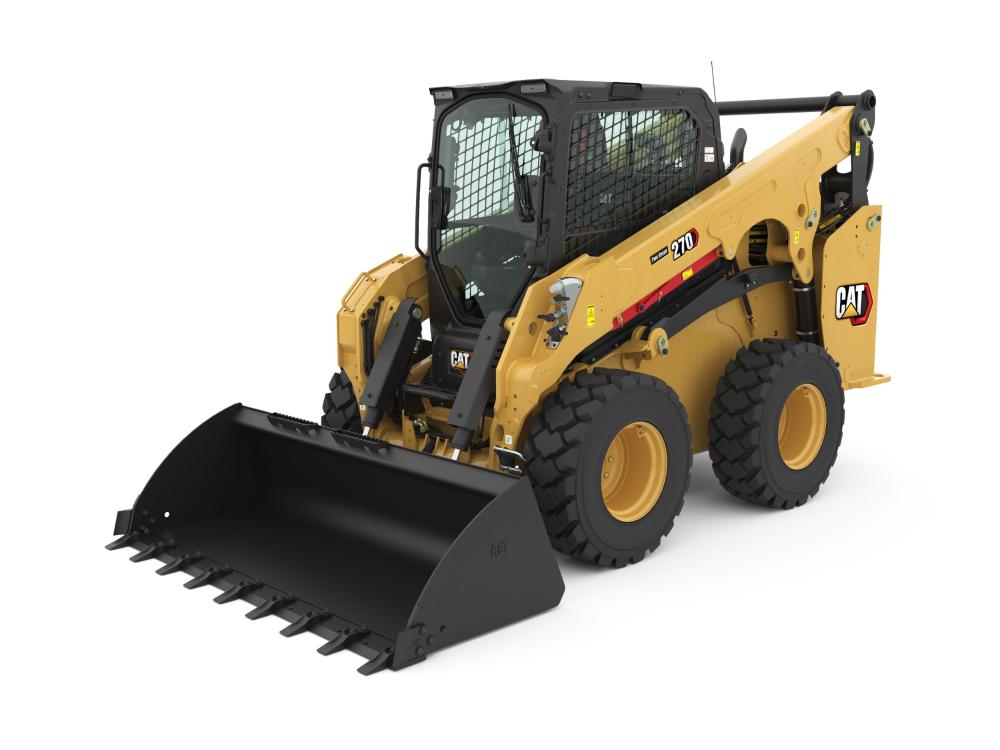

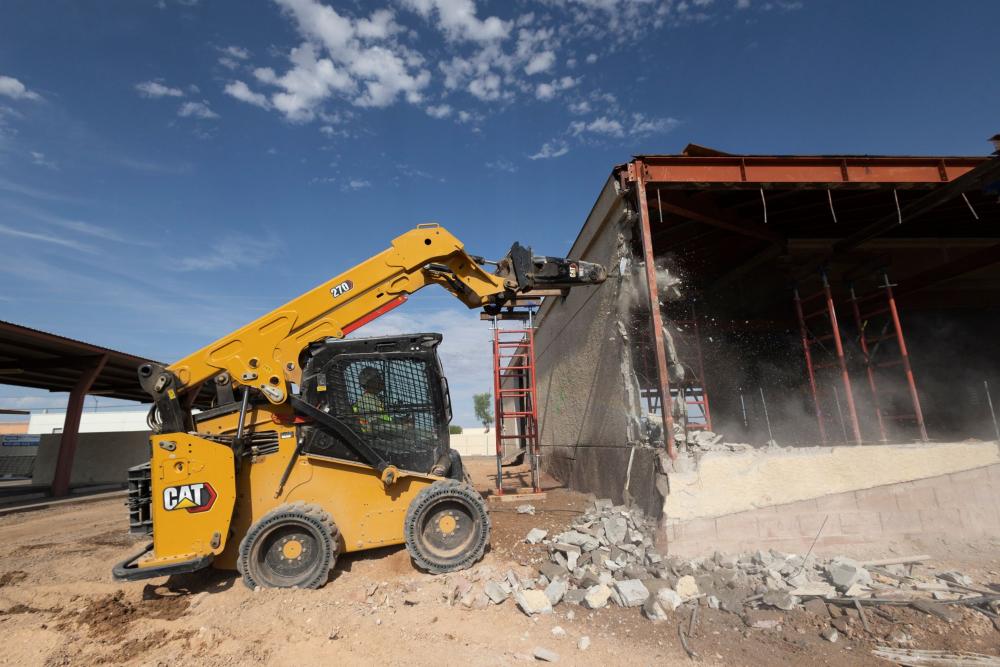

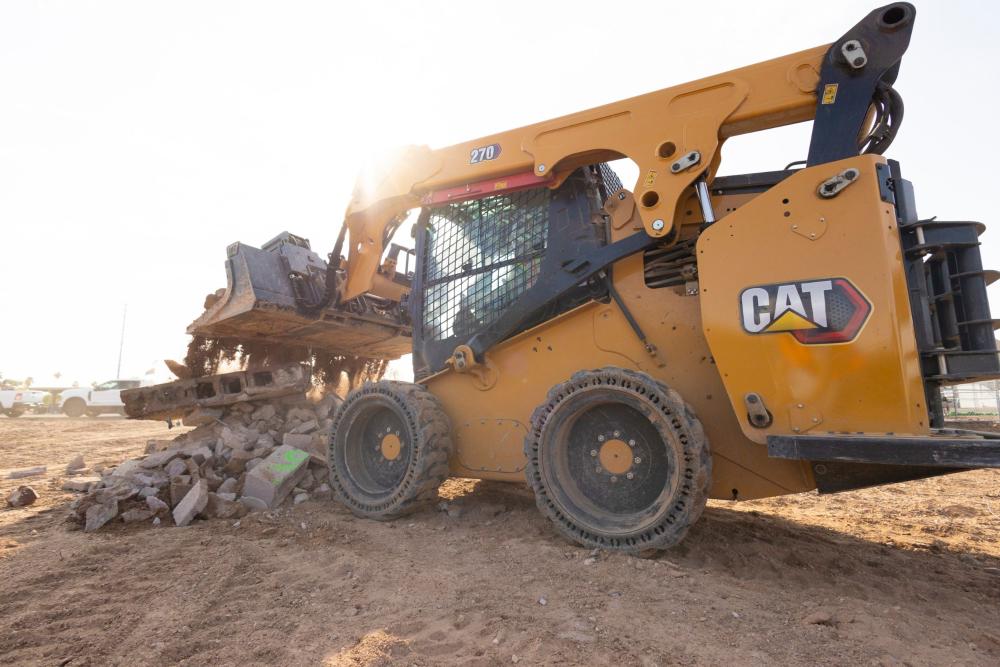

The Cat® 270 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
featuring redesigned layout with more cab space and easier entry and exit
High Performance Power Train
Redesigned Operator Station
Ventilated and Heated High-Back Air Ride Seat
High Flow XPS Auxiliary Hydraulic System
High Horsepower, High Torque Engine
Ride Control
Advanced Touchscreen Monitor
Advanced Joysticks
Ground-Level Access
Cat Attachments
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an electronic hand/foot throttle with decel pedal capability.
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 270 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

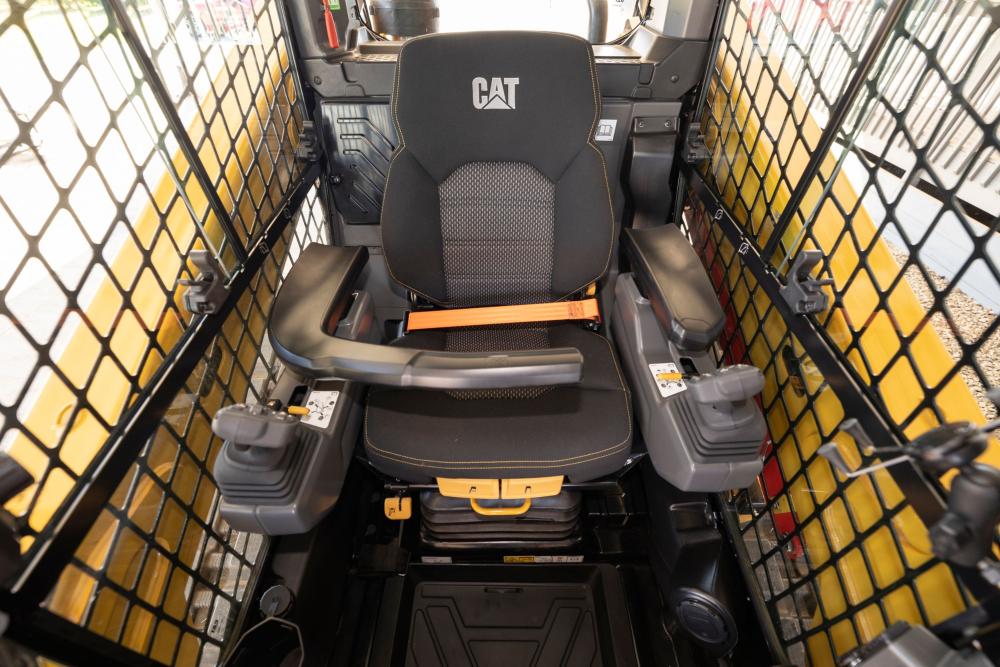

Available ventilated and heated high-back air ride seat and seat-mounted adjustable joystick controls deliver superior operator comfort.

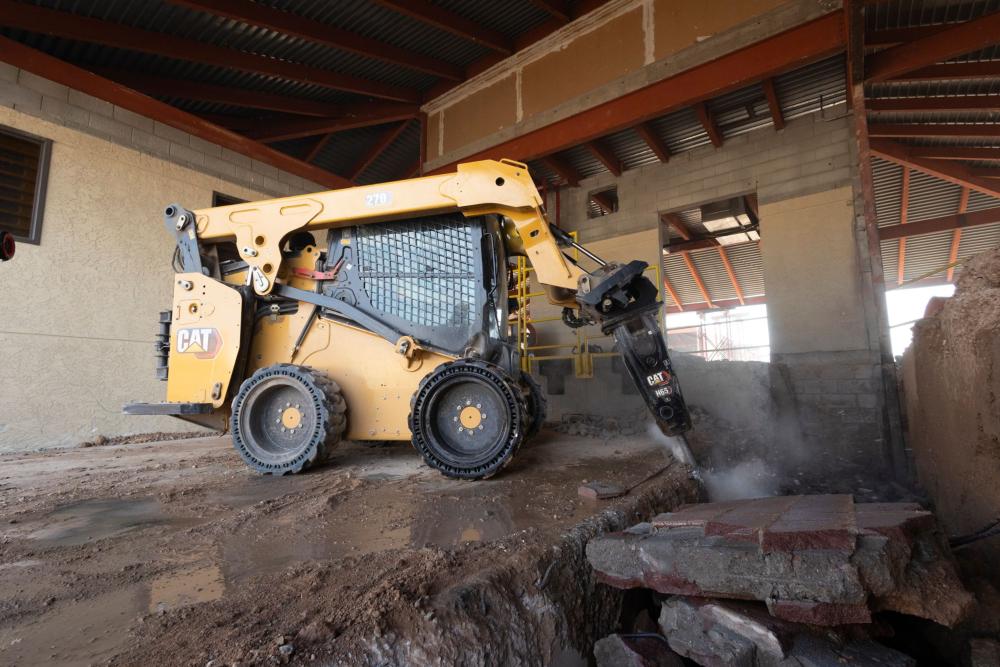

High Flow XPS auxiliary hydraulic system, delivering high flow and high pressure, is available for applications that demand maximum hydraulic work tool performance.

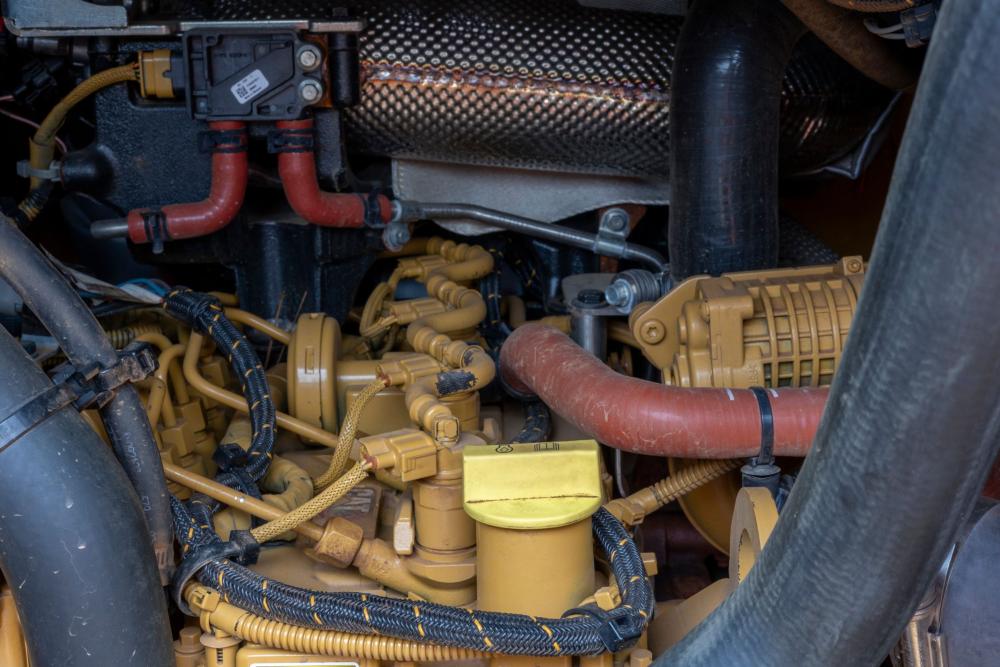

Electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range and provides high torque for increased working performance, no matter the application. The engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Speed sensitive ride control option improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.
The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

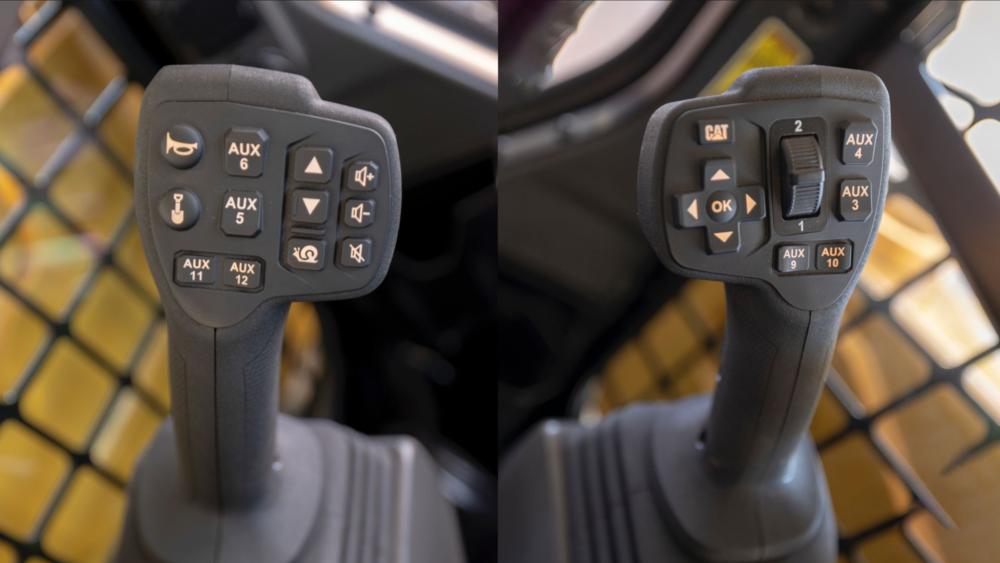

The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

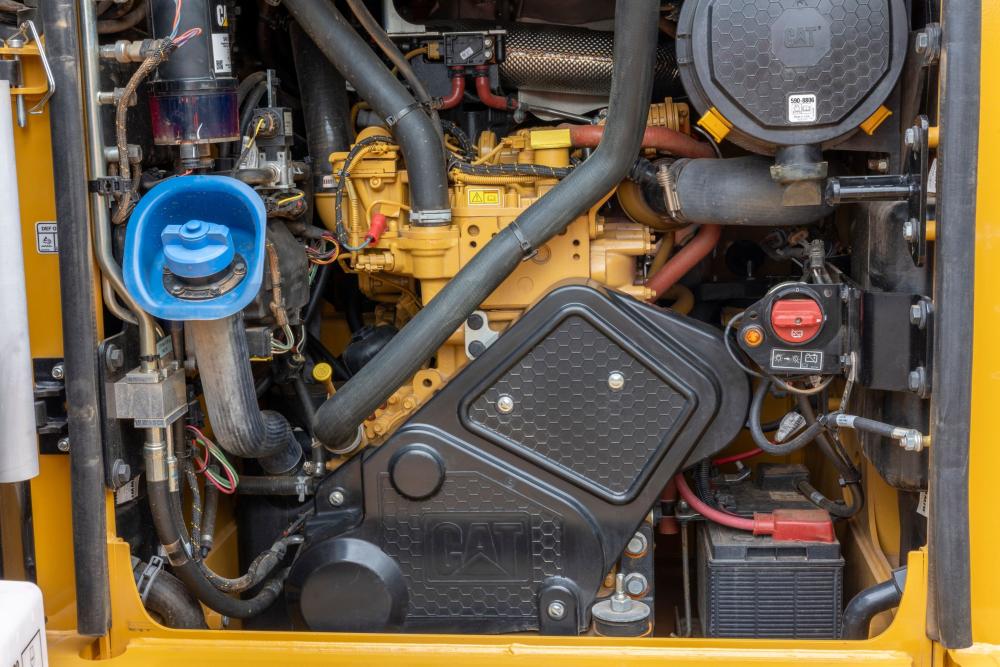

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

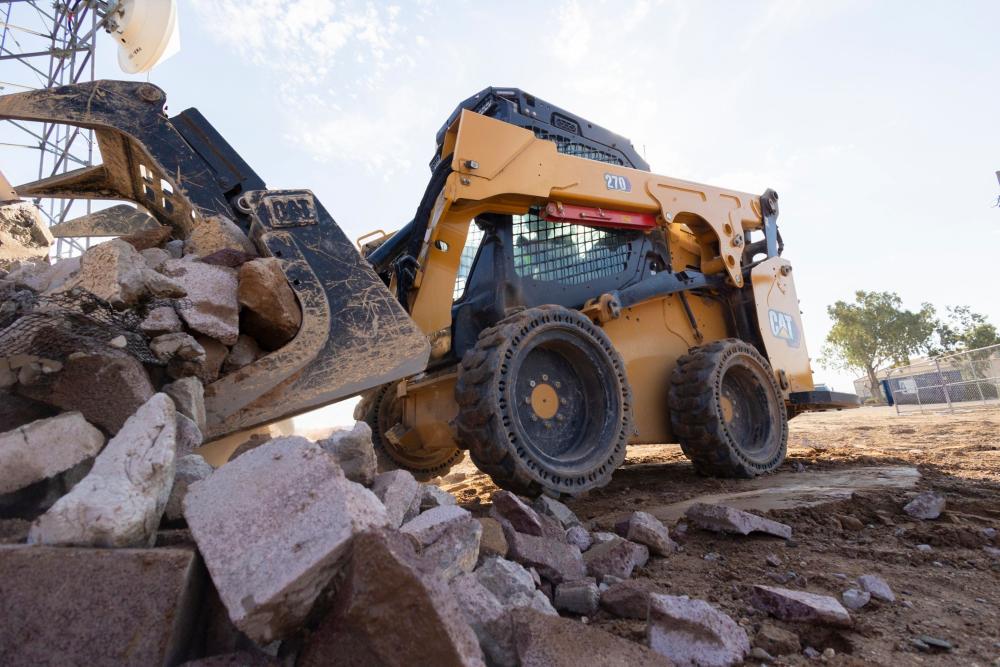

The broad range of performance matched Cat Attachments makes the Cat Skid Steer Loader the most versatile machine on the job site.
Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Net Power - ISO 9249
74 kW
99 hp
Peak Torque - 1,600 rpm - SAE J1995
451 N·m
333 lb/ft
Operating Specifications
Rated Operating Capacity
1614 kg
3557 lb
Tipping Load
3227 kg
7114 lb
Breakout Force - Tilt Cylinder
3750 kg
8267 lb
Breakout Force - Lift Cylinder
2880 kg
6349 lb
Rated Operating Capacity with Optional Counterweight
1786 kg
3914 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
Weights
Operating Weight
4736 kg
10441 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
Dimensions
Wheel Base
1386 mm
54.6 in
Height - Top of Cab
2189 mm
86.2 in
Vehicle Width over Tires
1830 mm
72 in
Ground Clearance
202 mm
8 in
Departure Angle
23.6°
Maximum Dump Angle
43.5°
Maximum Overall Height
4174 mm
164.3 in
Bucket Pin Reach - Maximum Lift
320 mm
12.6 in
Turning Radius from Center - Machine Rear
1897 mm
74.7 in
Turning Radius from Center - Coupler
1471 mm
57.9 in
Reach - Maximum Lift/Dump
786 mm
30.9 in
Turning Radius from Center - Bucket
2228 mm
87.7 in
Bucket Pin Height - Maximum Lift
3391 mm
133.5 in
Roll Back Angle
28°
Maximum Reach - With Arms Parallel to Ground
1220 mm
48 in
Clearance at Maximum Lift and Dump
2676 mm
105.4 in
Length - Without Bucket
3270 mm
128.7 in
Bucket Pin Height - Carry Position
220 mm
8.7 in
Length - With Bucket on Ground
3908 mm
153.9 in
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height
88°
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 (Optional)
Service Refill Capacities
Cooling System
17.5 l
4.6 gal (US)
Engine Crankcase
9 l
2.4 gal (US)
Fuel Tank
130.7 l
34.5 gal (US)
Hydraulic System
41 l
10.8 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank
11 l
2.9 gal (US)
Hydraulic System
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
129 L/min
34 gpm
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
34.6 kW
46.4 hp
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure
24130 kPa
3500 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow
86 L/min
23 gpm
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
60.2 kW
80.7 hp
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
51.9 kW
69.6 hp
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow
129 L/min
34 gpm
Hydraulic Flow - Standard - Loader Hydraulic Pressure
24130 kPa
3500 psi
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
28000 kPa
4061 psi
Power Train
Travel Speed - Forward or Reverse - Two Speed Option
15.4 km/h
9.6 mile/h
Travel Speed - Forward or Reverse - One Speed
10.6 km/h
6.6 mile/h
Noise Level
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab**
101 dB(A)
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Inside Cab*
83 dB(A)
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
