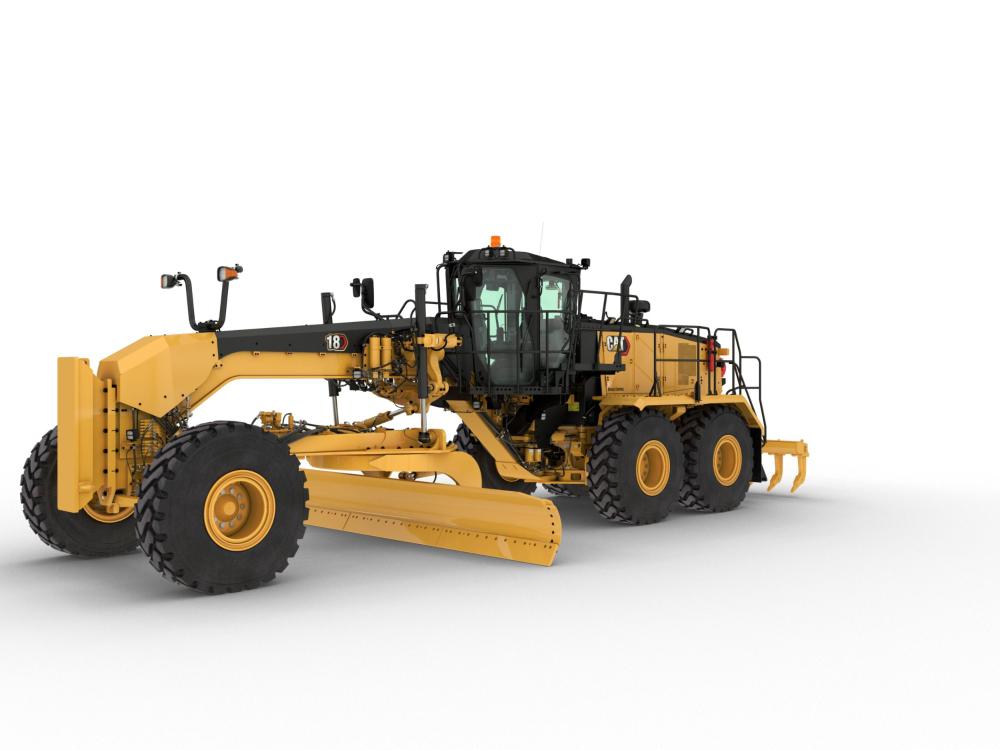

18 Motor Grader

Units of measurement :

Metric

Imperial

Base Power (1st Gear) - Net

227 kW

Operating Weight - Typically Equipped

33713 kg

Blade Width

5.5 m

Availability

Purchase Rental Used

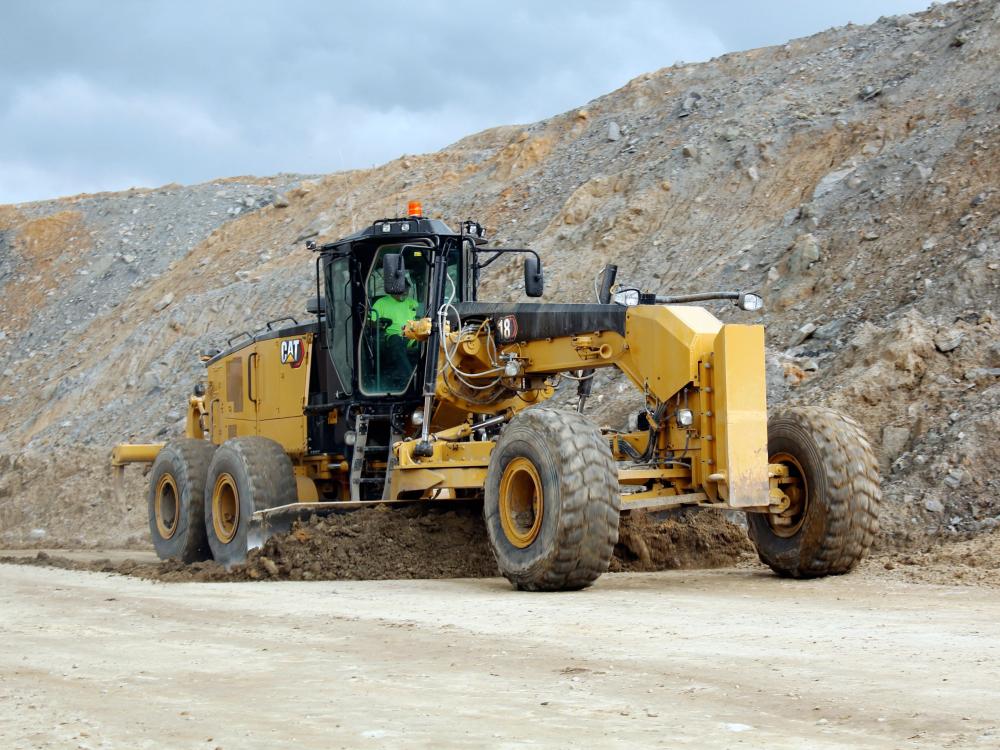

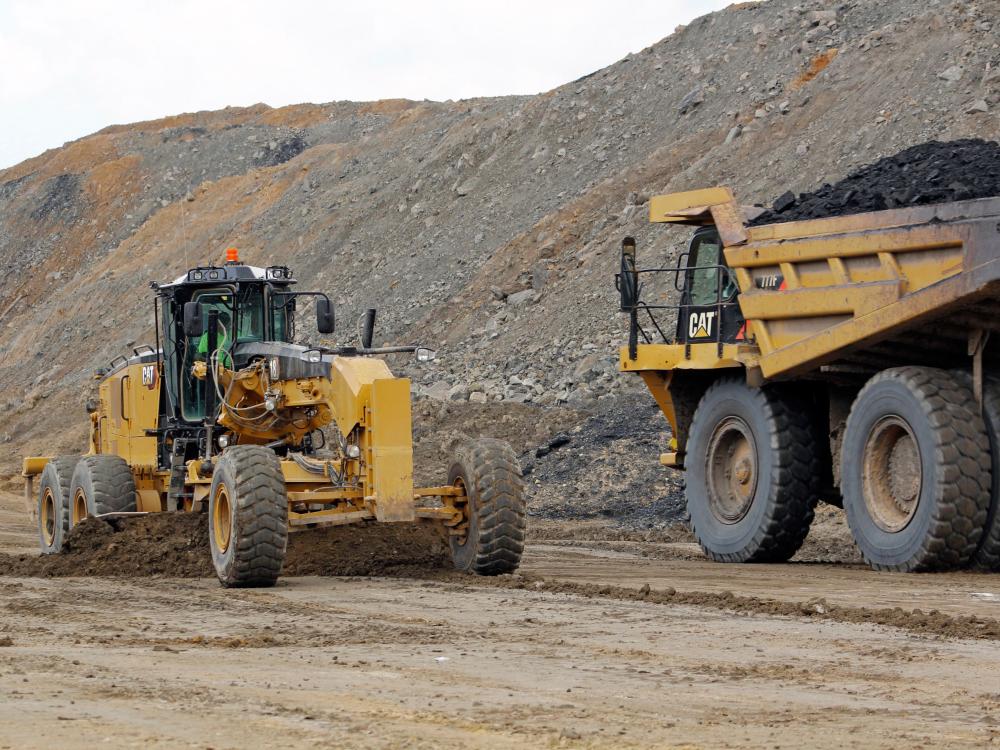

Cat® 18 motor grader powers through mining with high efficiency, advanced emissions control, and a wider moldboard. Ideal for haul road maintenance and mining operations, this heavy equipment cuts costs and ensures uptime with Cat durability.

Wide Coverage

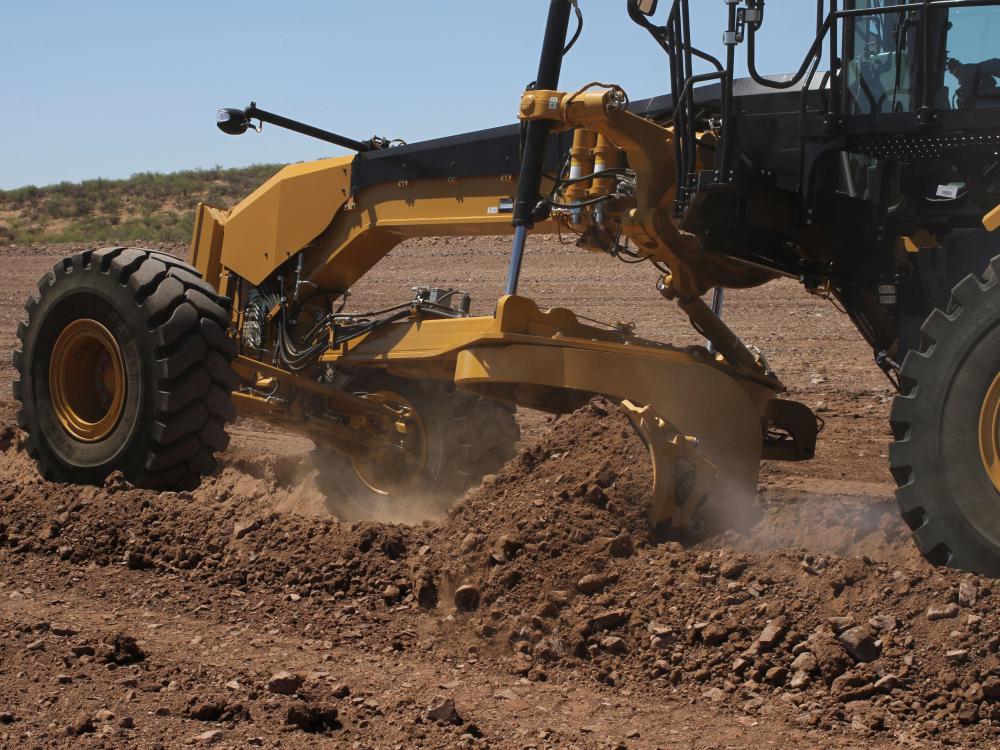

Maximize productivity with an 18-ft moldboard for fewer passes, optimized power for smooth performance, and a high-capacity design that tackles heavy loads with ease.

Technology to Precisely Grade

Factory-installed Cat® Cross Slope automates accurate grading, integrates with Cat® MineStar for support, and adds VisionLink™ and CPM for insights to boost uptime and productivity.

Manage Your Fleet

Boost productivity with LED perimeter lighting for superior visibility, a cab sound suppression system for a quieter, safer ride, and an ergonomically designed seat offering multi-axis adjustments for all-day comfort.

BETTER COMFORT AND CONTROL

ACHIEVE GREATER PRODUCTIVITY

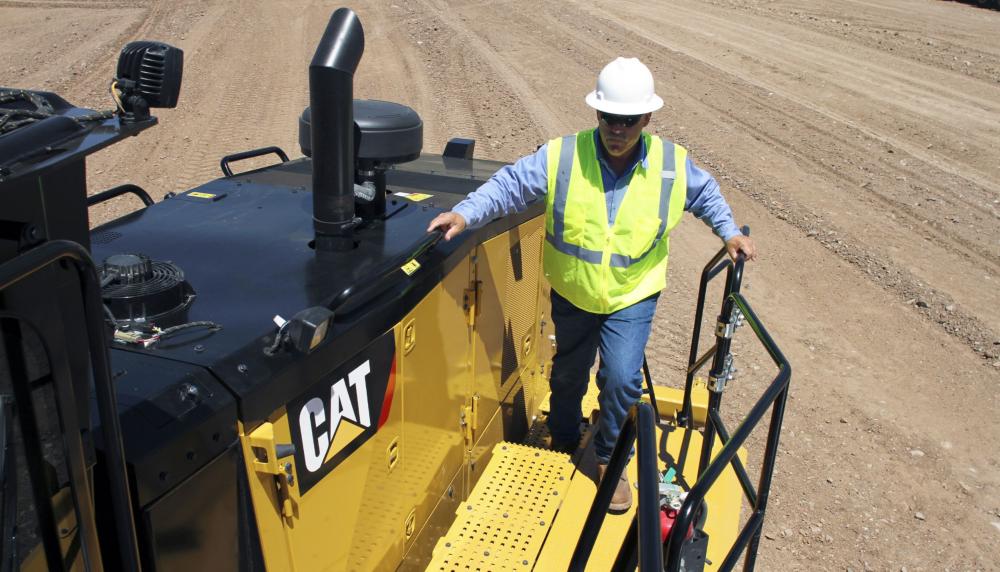

BUILT-IN SAFETY FEATURES

TOP-TIER SERVICE AND SUPPORT

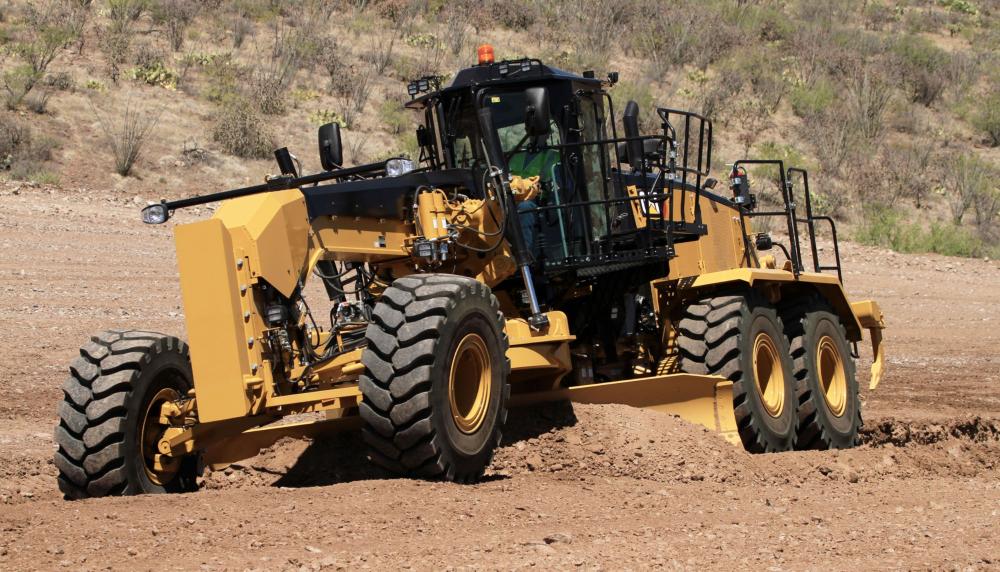

18 foot moldboard and straight 10 inch by 1-3/8 inch cutting edge, allowing operators to increase coverage by 12.5% compared to a 16 foot moldboard. The operator can use a more aggressive blade angle and still be able to deposit the windrow away from the tires to protect tire life. More aggressive blade angles reduce the load on the machine and maintain better ground speed for enhanced performance.

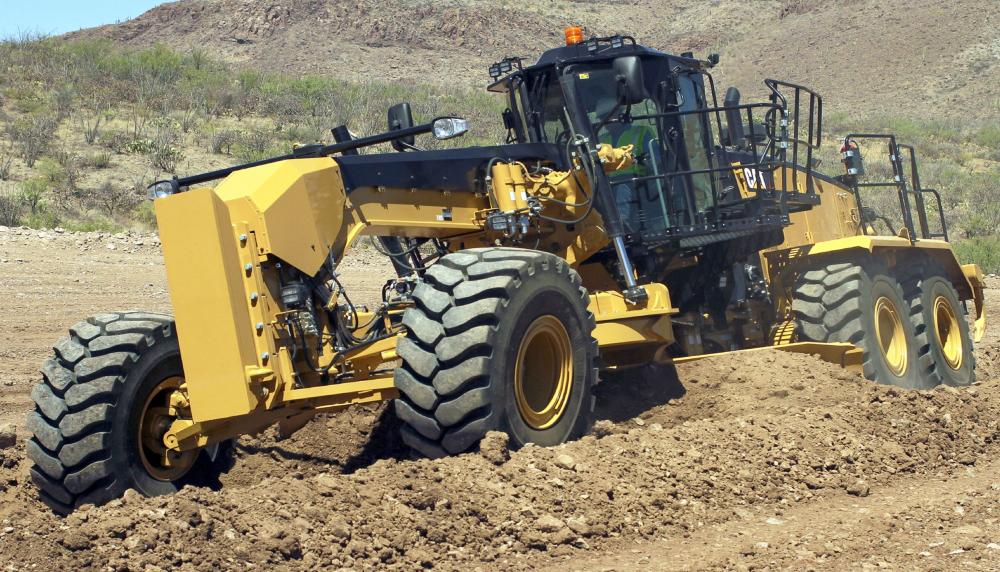

Variable Horse Power (VHP) provides the ideal amount of power in all gears to efficiently perform diverse motor grader applications while protecting structure and drive train components.
With optimized combination of weight and balance the 18delivers enhanced traction and the ability to keep ground speed, especially when carrying a large load on the board.
Emissions reduction technology is transparent and automated with no action required from the operator.

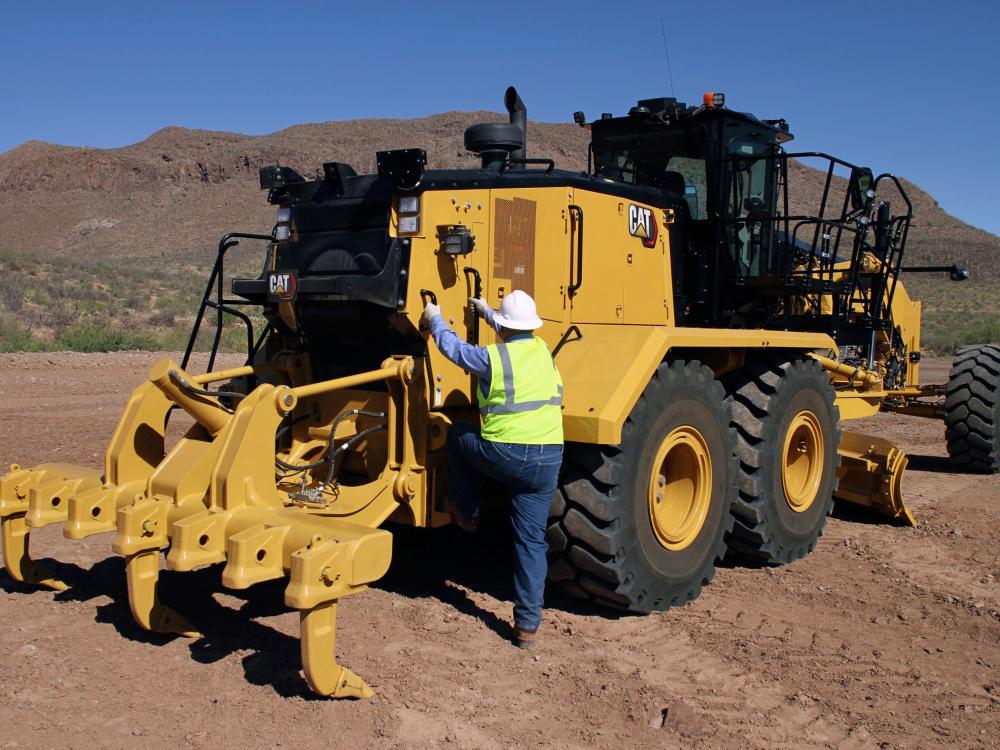

Rear Ripper / Scarifier penetrates tough material fast for easier movement with the moldboard. Standard ripper with three shanks can add four more for additional versatility.

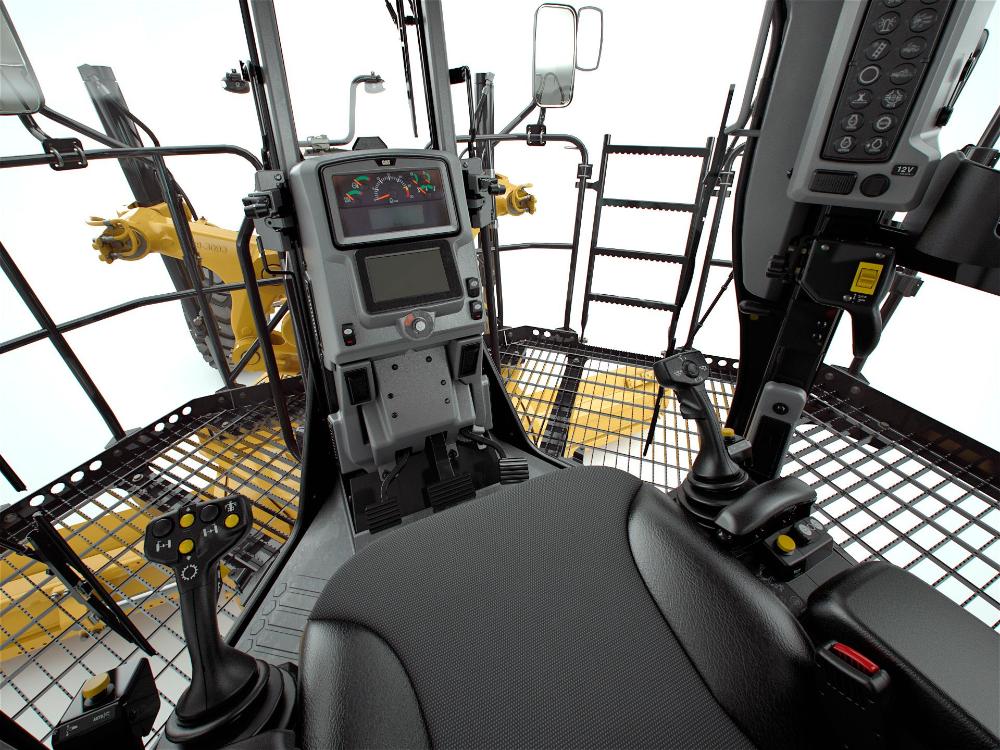

Multi-color, touch screen Information Display is the operator's gateway to monitoring machine performance and offers a convenient way of modifying machine parameters to tailor performance to the current task. Provides access to service information for initial troubleshooting.
Cat VisionLink™ is deeply integrated into the machine, helping take the guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online user interface can help effectively manage fleets and lower operating costs.
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.

18 Product Brochure.pdf Motor Grader Rig Out Catalog.pdf 18 Poster.pdf Mining Motor Grader Rig Out Catalog.pdf Mining Motor Grader Rig Out Catalog.pdf

Engine

Base Power (1st Gear) - Net	227 kW	304 hp
Engine Model	Cat® C13
Bore	130 mm	5.1 in
Stroke	157 mm	6.2 in
Speed at Rated Power	2,000 rpm
Standard - Ambient Capability	50 °C	122 °F
Base Power (1st Gear) - Net - Metric	227 kW	309 hp
VHP Range - Net	227-266 kW (304-357 hp)
Maximum Torque - ISO 9249 - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent	1721 N·m	1270 lb/ft
Derating Altitude - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent	3711 m	12176 ft
Derating Altitude - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent	3954 m	12973 ft
Maximum Torque - ISO 9249 - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent	1721 N·m	1270 lb/ft
Standard - Fan Speed - Minimum	550 rpm
Emissions (1)	U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)
Torque Rise - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)	40%
Maximum Torque - ISO 9249 - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)	1771 N·m	1306 lb/ft
Derating Altitude - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)	3810 m	12500 ft
Torque Rise - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent	38%
Standard - Fan Speed - Maximum	1,450 rpm
Emissions (2)	Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards
Torque Rise - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent	38%
VHP Range - Net - Metric	227-266 kW (309-362 hp)
Emissions (3)	Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards
Optimized VHP Range - Net	227-266 kW (304-357 hp)
Displacement	12.5 l	763 in³
Number of Cylinders	6

Weights

Moldboard

Service Refill

Power Train

Hydraulic System

Blade Range

Operating Specifications

Frame

Tandems

Ripper

Weights Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final)*

Dimensions (Approximate)

Standards

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent or Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards - Metric

Optional Tire Arrangements

Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent or Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards - Net

Air Conditioning System

Compatible products:

Other categories of Equipos:

360º Interior
360º Exterior

18 Motor Grader

Blade Width	5.5 m	18 ft
Arc Radius	413 mm	16.3 in
Throat Clearance	126 mm	5 in
Down Force - Maximum GVW	19895 kg	43861 lb
Blade Pull* - Base GVW	21417 kg	47216 lb
Blade Pull* - Maximum GVW	23985 kg	52878 lb
End Bit - Width	152 mm	6 in
Down Force - Base GVW	15426 kg	34008 lb
Cutting Edge Thickness	35 mm	1.4 in
Thickness	25 mm	1 in
Width	5.5 m	18 ft
Cutting Edge Width	254 mm	10 in
End Bit - Thickness	19 mm	0.75 in
Height	787 mm	31 in
Note	*Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight.

Fuel Capacity	496 l	131 gal (US)
Cooling System	70 l	18.5 gal (US)
Hydraulic System - Tank	70 l	18.5 gal (US)
Hydraulic System - Total	146 l	38.6 gal (US)
DEF Tank	16 l	4.2 gal (US)
Engine Oil	36 l	9.5 gal (US)
Transmission - Differential - Final Drives	98.5 l	26 gal (US)
Tandem Housing - Each	129 l	34 gal (US)
Front Wheel Spindle Bearing Housing	0.9 l	0.24 gal (US)
Circle Drive Housing	10 l	2.6 gal (US)

Forward/Reverse Gears	8 Forward/6 Reverse
Transmission	Direct drive, power shift, countershaft
Brakes - Parking	Spring applied, hydraulically released
Brakes - Dynamic Brake Torque per Wheel	36701 N·m	27069.27 lb/ft
Brakes - Service	Oil-actuated, oil disc
Brakes - Secondary	Oil-actuated, oil-disc

Circuit Type	Electro-hydraulic load sensing, closed center
Pump Type	Variable piston
Maximum System Pressure	24750 kPa	3590 psi
Standby Pressure	5900 kPa	856 psi
Pump Output*	280 L/min	74 gpm
Note	*Pump output measured at 2,150 rpm.

Maximum Blade Position Angle	65°
Maximum Lift Above Ground	400 mm	15.7 in
Maximum Depth of Cut	470 mm	18.5 in
Maximum Shoulder Reach Outside of Tires - Right	2605 mm	103 in
Circle Centershift - Right	560 mm	22 in
Maximum Shoulder Reach Outside of Tires - Left	2605 mm	103 in
Moldboard Sideshift - Right	790 mm	31.1 in
Blade Tip Range - Backward	5°
Moldboard Sideshift - Left	740 mm	29.1 in
Circle Centershift - Left	690 mm	27.2 in
Blade Tip Range - Forward	40°

Forward - 6th	25.8 km/h	16 mile/h
Forward - 2nd	6.1 km/h	3.8 mile/h
Forward - 8th	51.7 km/h	32.1 mile/h
Forward - 5th	19 km/h	11.8 mile/h
Reverse - 3rd	9.7 km/h	6 mile/h
Turning Radius - Outside Front Tires	9.3 m	30.5 ft
Forward - 4th	12.3 km/h	7.6 mile/h
Top Speed - Reverse	40.8 km/h	25.3 mile/h
Forward - 7th	35.5 km/h	22 mile/h
Articulation Angle - Left/Right	20°
Reverse - 1st	3.6 km/h	2.2 mile/h
Forward - 3rd	8.9 km/h	5.5 mile/h
Reverse - 4th	15 km/h	9.3 mile/h
Forward - 1st	4.5 km/h	2.8 mile/h
Top Speed - Forward	51.7 km/h	32.1 mile/h
Reverse - 6th	40.8 km/h	25.3 mile/h
Steering Range - Left/Right	47.5°
Reverse - 2nd	6.6 km/h	4.1 mile/h
Reverse - 5th	28 km/h	17.4 mile/h
Note	Calculated with no slip and 23.5R25 L-3 tires.

Front Frame Structure - Width	356 mm	14 in
Front Axle - Height to Center	670 mm	26.4 in
Circle - Diameter	1822 mm	71.7 in
Front Frame Structure - Thickness	14 mm	0.6 in
Front Frame Structure - Height	460 mm	18.1 in
Circle - Blade Beam Thickness	50 mm	2 in
Drawbar - Width	76 mm	3 in
Front Axle - Wheel Lean	18° Left/17° Right
Front Axle - Total Oscillation per Side	35°
Drawbar - Height	203 mm	8 in

Sidewall Thickness - Outer	22 mm	0.9 in
Sidewall Thickness - Inner	22 mm	0.9 in
Tandem Oscillation - Front Up	15°
Tandem Oscillation - Front Down	25°
Height	648 mm	25.5 in
Width	236 mm	9.3 in
Drive Chain Pitch	63.5 mm	2.5 in
Wheel Axle Spacing	1841 mm	72.5 in

Shank Holder Spacing - Minimum	445 mm	17.5 in
Ripping Depth - Maximum	452 mm	17.8 in
Shank Holder Spacing - Maximum	500 mm	20 in
Ripper Shank Holders	7
Penetration Force	13749 kg	30311 lb
Pry-Out Force	19822 kg	43700 lb
Machine Length Increase, Beam Raised	1610 mm	63.4 in

Gross Vehicle Weight - Typically Equipped - Rear Axle	24417 kg	53830 lb
Gross Vehicle Weight - Base** - Total	32794 kg	72298 lb
Gross Vehicle Weight - Maximum Tested - Rear Axle	26650 kg	58753 lb
Gross Vehicle Weight - Maximum Tested - Front Axle	11850 kg	26125 lb
Gross Vehicle Weight - Typically Equipped - Front Axle	9296 kg	20494 lb
Gross Vehicle Weight - Base** - Front Axle	8998 kg	19837 lb
Gross Vehicle Weight - Maximum Tested - Total	38500 kg	84877 lb
Gross Vehicle Weight - Typically Equipped - Total	33713 kg	74324 lb
Gross Vehicle Weight - Base** - Rear Axle	23796 kg	52461 lb
Note (2)	**Base operating weight calculated on standard machine configuration with 23.5R25 tires, full fuel tank operator and rops cab.
Note (1)	*No Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) emission engine: subtract 150 kg (331 lb) from rear axle wt. & total wt.

Height - Top of Cylinders	3115 mm	122.6 in
Width - Outside Rear Tires	3411 mm	134.3 in
Height - Exhaust Stack	3584 mm	141.1 in
Length - Between Tandem Axles	1841 mm	72.5 in
Length - Front Axle to Mid Tandem	7365 mm	290 in
Width - Tire Center Lines	2703 mm	106.4 in
Length - Front Axle to Moldboard	3066 mm	120.7 in
Length - Counterweight to Ripper	12051 mm	474.4 in
Height - Front Axle Center	760 mm	29.9 in
Width - Outside Front Tires	3411 mm	134.3 in
Length - Front Tire to Rear of Machine - Including Tow Hitch	10593 mm	417 in
Height - Top of Cab	3746 mm	147.5 in
Ground Clearance - Rear Axle	423 mm	16.7 in

Sound	ISO 6394: 2008/ISO 6395: 2008/ISO 6396: 2008
ROPS/FOPS	ISO 3471: 2008/ISO 3449: 2005
Brakes	ISO 3450: 2011
Steering	ISO 5010: 2007

Gear - Forward 1st	227 kW	309 hp
Gear - Forward 2nd	227 kW	309 hp
Gear - Reverse 2nd	227 kW	309 hp
Gear - Forward 4th	239 kW	325 hp
Gear - Forward 6th	251 kW	341 hp
Gear - Forward 5th	244 kW	332 hp
Gear - Forward 8th	266 kW	362 hp
Gear - Reverse 1st	227 kW	309 hp
Gear - Forward 3rd	232 kW	315 hp
Gear - Forward 7th	255 kW	347 hp
Gear - Reverse 3rd-6th	232 kW	315 hp

Wheel Group - 19.5×25 MP (2)	Tires: 23.5R25 Bridgestone VKT 1 Star
Wheel Group - 19.5×25 MP (1)	Tires: 23.5R25 Bridgestone VKT 2 Star
Wheel Group - 19.5×25 MP (3)	Tires: 23.5R25 Bridgestone VJT 1 Star
Wheel Group - 19.5×25 MP (4)	Tires: 23.5R25 Michelin XHA 2 Star
Wheel Group - 19.5×25 MP (5)	Tires: 23.5R25 Michelin XLDD 2 Star L5

Gear - Forward 4th	239 kW	321 hp
Gear - Reverse 2nd	227 kW	304 hp
Gear - Forward 1st	227 kW	304 hp
Gear - Reverse 3rd-6th	232 kW	311 hp
Gear - Forward 3rd	232 kW	311 hp
Gear - Forward 5th	244 kW	327 hp
Gear - Forward 7th	255 kW	342 hp
Gear - Forward 2nd	227 kW	304 hp
Gear - Reverse 1st	227 kW	304 hp
Gear - Forward 6th	251 kW	337 hp
Gear - Forward 8th	266 kW	357 hp
