24 Motor Grader

Units of measurement :

Metric

Imperial

Net Power - EEC 80/1269

399 kW

Operating Weight - Typically Equipped

74985 kg

Blade Width

7.3 m

Availability

Purchase Rental Used

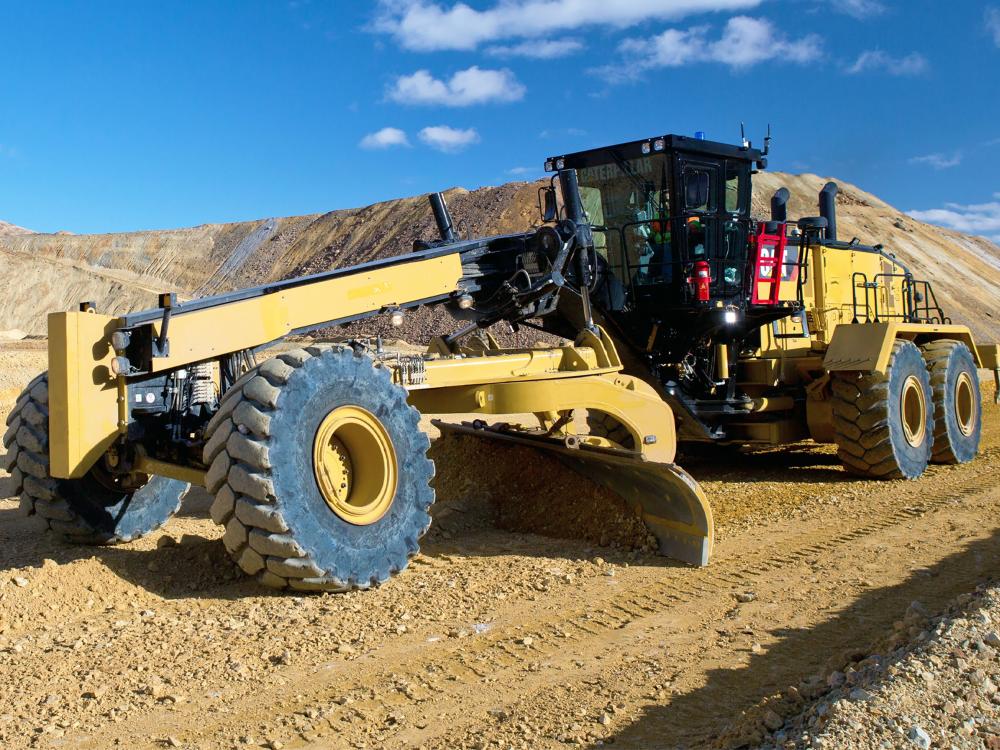

Maximize your minesite's productivity with the Cat® 24 motor grader. By building and maintaining haul roads, the 24 motor grader is designed to help you get more work done with lower owning and operating costs. Stay safe and comfortable with the updated cab.

Command the road. Without compromise.

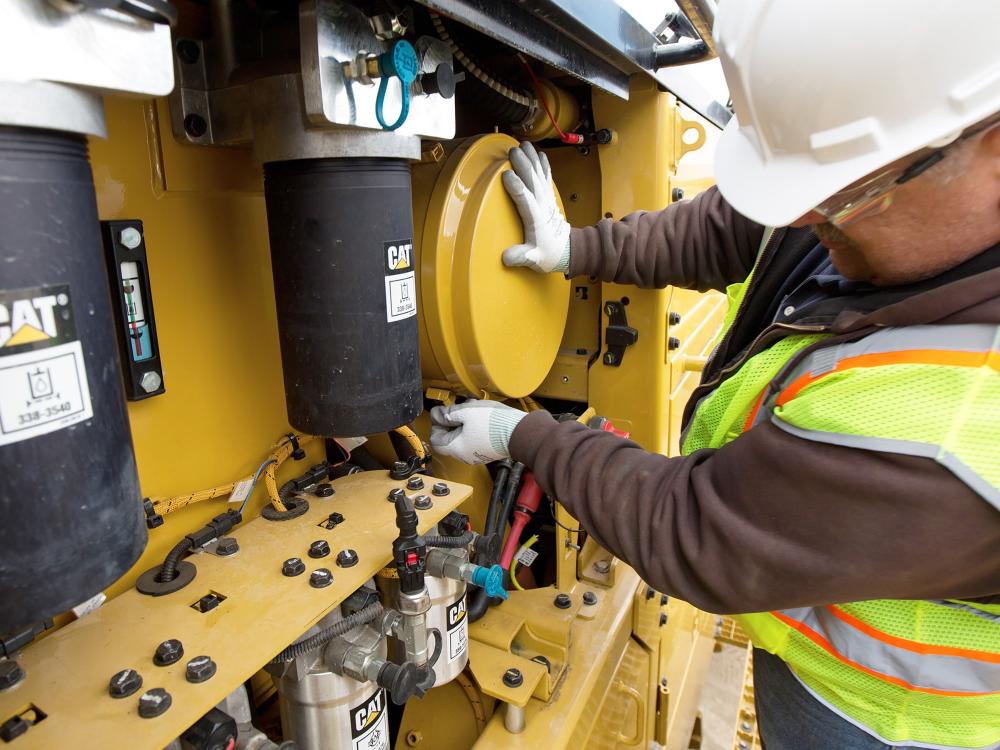

Designed for productivity: clustered filters and a ground-level fluid center speed up service, while modular components and extended intervals keep your machine working longer—delivering more uptime and greater value.

Crafted for Longevity

Boost productivity with the Cat® C27 engine delivering steady grading speed. Automatic power-to-ground ensures peak performance in any condition, while a rugged powertrain offers unmatched durability and control.

More weight, more power, more coverage

Experience unmatched performance with 221% more weight, double the power, and greater coverage in fewer passes. Boost efficiency with the High Performance Circle and choose a 24-ft or optional 28-ft moldboard for maximum productivity.

LOWER MAINTENANCE COSTS

MAXIMIZE PERFORMANCE

ENSURING A SAFE JOB SITE

TECHNOLOGY THAT PUSHES PROFITS

The improved power train rebuild life, new modular design and new machine protection features can save you up to 2,400 servicing hours over the life of the machine.
Cat C27 engine, 533 mm (21 in) transmission and lower power train provide 33 percent additional machine life before needing to be rebuilt.
New, innovative main component modular design means they can be removed and installed quicker and easier. Transmission and cooling package can be removed up to 70 percent faster than the 24M.
Fluid Service Center provides single location at ground level for access to engine, transmission, hydraulic oil and coolant. This feature, along with clustered filters and extended service intervals, saves you maintenance time and operating costs.
Hoses and electrical harnesses are split at easily accessible bulkhead locations allowing your service technicians to work with smaller sections easier and faster.
Ok-to-Start and Critically Low Fluid monitoring systems protect your machine by providing electronic verification of fluid levels and alerting you when low fluid levels are detected, protecting your machine.

24 Product Brochure.pdf 24 Key Features and Benefits.pdf Motor Grader Rig Out Catalog.pdf Motor Grader Technical Specifications.pdf 24 Poster.pdf 24 Technical Specifications.pdf 24 Technical Specifications.pdf

Engine

Net Power - EEC 80/1269	399 kW	535 hp
Bore	137.2 mm	5.4 in
Stroke	152.4 mm	6 in
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3)	Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (2)	Optimized VHP Plus is standard for the 24.
Standard Capability	50 °C	122 °F
Emissions	Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II
Note (4)	Power as declared per ISO 14396. Rated rpm 1,800 (561 hp)
Engine Model	Cat C27
Displacement	27.03 l	1648 in³
Number of Cylinders	12
