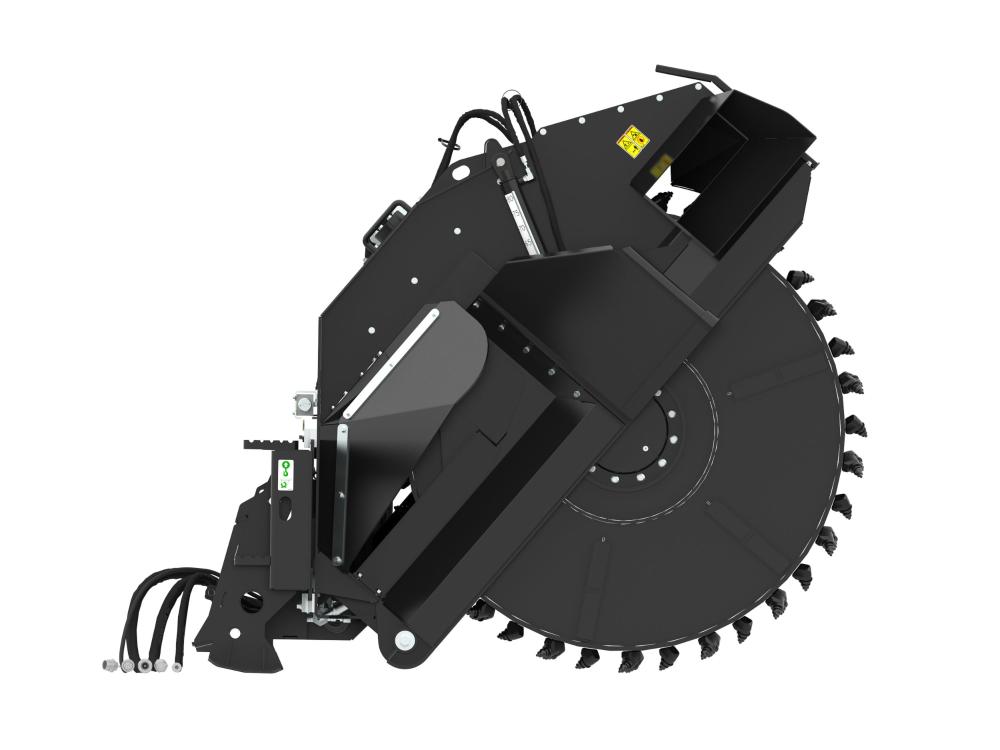

SW480, 250 mm (10 in) Wheel Saw

Cat

https://www.finanzauto.es/productos/zanjadoras-y-sierras-caterpillar-sierra-zanjadora-sw480-de-250-mm-10-pulg

Units of measurement :

Metric

Imperial

Maximum Cutting Depth

800 mm

31.5 in

Wheel Width

250 mm

9.8 in

Weight

1450 kg

3196.7 lb

Availability

Purchase Rental Used

Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Features

Specifications

Documents

Direct Drive System

Hydraulic Side-Shift

Hydraulic Depth Control

Deflector Plates

Max Pro Pressure Gauge

Bits

Self Standing

OMM Container

Included Tools

Smart Creep

Optional Guide Bar

Water Kit Ready

Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

Hydraulic side-shift is standard on all models and is controlled from the operator’s compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.

Hydraulic depth control is standard on all models and is controlled from the operator’s compartment. Hydraulic depth control allows the operator to adjust cut depth on the fly from in cab to quickly adjust to the current job as needed.

Deflector plates remove spoil from the machine’s path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

Concrete bits are standard on all models. Optional all purpose conical bits are available for all Cat Wheel Saws for tarmac and asphalt applications. Extreme life bits are available for extreme duty Cat Wheel Saw applications.

Self standing frame design improves connection and parking.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Attachment mounted tools included to provide quick and easy change out of bits when needed.

Smart Creep is a dynamic drive control system that works in conjunction with the initial creep speed setting. Smart Creep senses load on the attachment being operated, and can automatically adjusts drive command to keep the attachment running at the most productive speed.

Optional guide bar allows operator to position wheel saw for better visibility of cut path, allowing for a straighter cut.

Ports are strategically located to equip the saw with a water sprinkler kit along hood, which allows for significant dust reduction.

Cat® Wheel Saw Brochure.pdf

Others

Maximum Cutting Depth	800 mm	31.5 in
Wheel Width	250 mm	9.8 in
Weight	1450 kg	3196.7 lb
Overall Width	1655 mm	65.2 in
Overall Height	1860 mm	73.2 in
Length	2600 mm	102.4 in
Required Hydraulics	High Flow XHP / XE
Optimal Hydraulic Flow	136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure	250-280 bar (3630-4000 psi)
Motor Displacement	1686 cm³/rev	102.9 in³/rev
Wheel Torque at Maximum Pressure	7509 N·m	5538.4 lb/ft
Wheel Speed at Maximum Flow	89 RPM
Bit Speed at Maximum Flow	444 m/min	1456.7 ft/min
Conical Bits - Per Wheel	72
Standard Bit Type	Concrete
Optional Bit Type	All Purpose
Side Shift Travel	550 mm	21.7 in
Trench Cleaning Device	No
Drive Method	Direct Drive
Interface Type	Skid Steer Coupler

Compatible machines:

275

Gross Power - SAE J1995:2014

82 kW

111 hp

Rated Operating Capacities - 35% Tipping Load

1885 kg

4156 lb

Operating Weight

5625 kg

12401 lb

Cat

15705290
275 XE

Gross Power - SAE J1995:2014

91 kW

122 hp

Rated Operating Capacities - 35% Tipping Load

1280 kg

4205 lb

Operating Weight

5763 kg

12705 lb

Cat

15705518
285

Gross Power - SAE J1995:2014

82 kW

111 hp

Rated Operating Capacities - 35% Tipping Load

2023 kg

4461 lb

Operating Weight

6122 kg

13497 lb

Cat

18267726
285 XE

Gross Power - SAE J1995:2014

91 kW

121 hp

Rated Operating Capacities - 35% Tipping Load

2050 kg

4520 lb

Operating Weight

6200 kg

13669 lb

Cat

18267729
285 XE

Gross Power - SAE J1995:2014

91 kW

121 hp

Rated Operating Capacities - 35% Tipping Load

2050 kg

4520 lb

Operating Weight

6200 kg

13669 lb

Cat

18267729
285 XE

Gross Power - SAE J1995:2014

91 kW

121 hp

Rated Operating Capacities - 35% Tipping Load

2050 kg

4520 lb

Operating Weight

6200 kg

13669 lb

Cat

18267729
285 XE

Gross Power - SAE J1995:2014

91 kW

121 hp

Rated Operating Capacities - 35% Tipping Load

2050 kg

4520 lb

Operating Weight

6200 kg

13669 lb

Cat

18267729
285 XE

Gross Power - SAE J1995:2014

91 kW

121 hp

Rated Operating Capacities - 35% Tipping Load

2050 kg

4520 lb

Operating Weight

6200 kg

13669 lb

Cat

18267729
285 XE

Gross Power - SAE J1995:2014

91 kW

121 hp

Rated Operating Capacities - 35% Tipping Load

2050 kg

4520 lb

Operating Weight

6200 kg

13669 lb

Cat

18267729
