Redesigned Operator Station
Available ventilated and heated high-back air ride seat
High-performance power train
Three levels of auxiliary hydraulic performance
Electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine
Standard equalizer bar (E-bar) undercarriage and standard two-speed travel
Advanced Touchscreen Monitor
Advanced Joysticks
Ground-level access
Cat Attachments

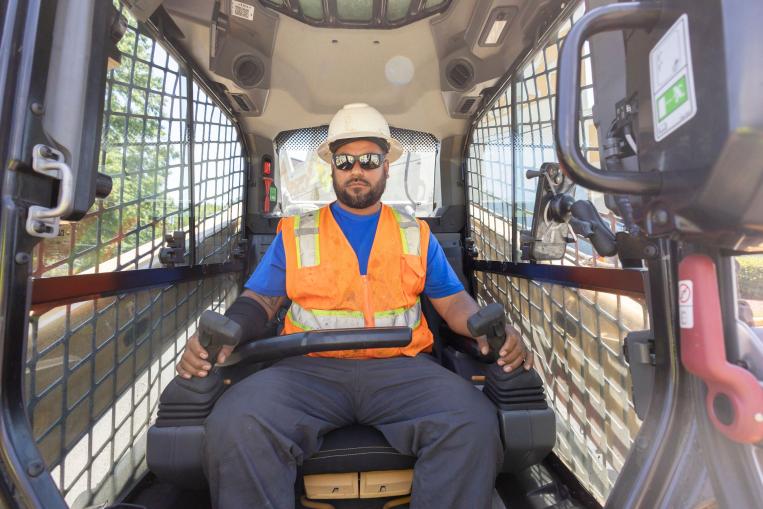

Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 275 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

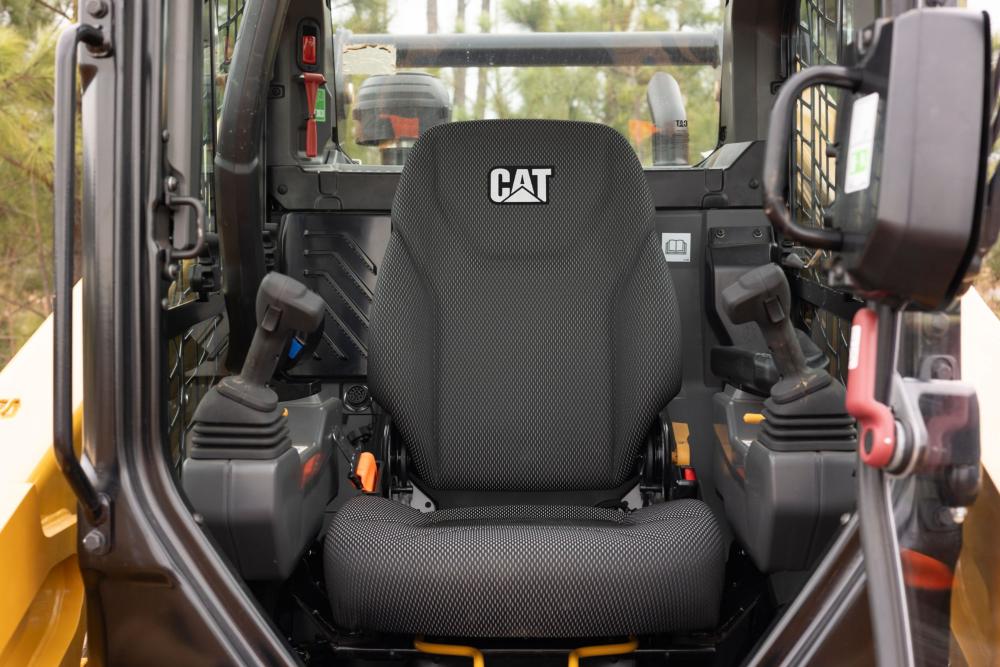

Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.

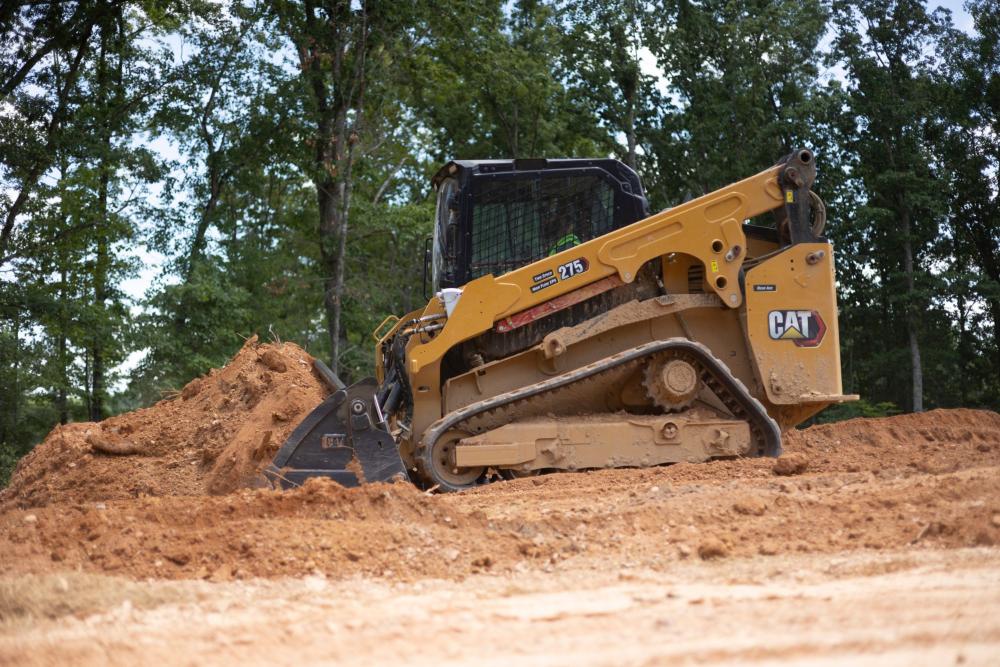

The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.
Three levels of auxiliary hydraulic performance are available - Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications.

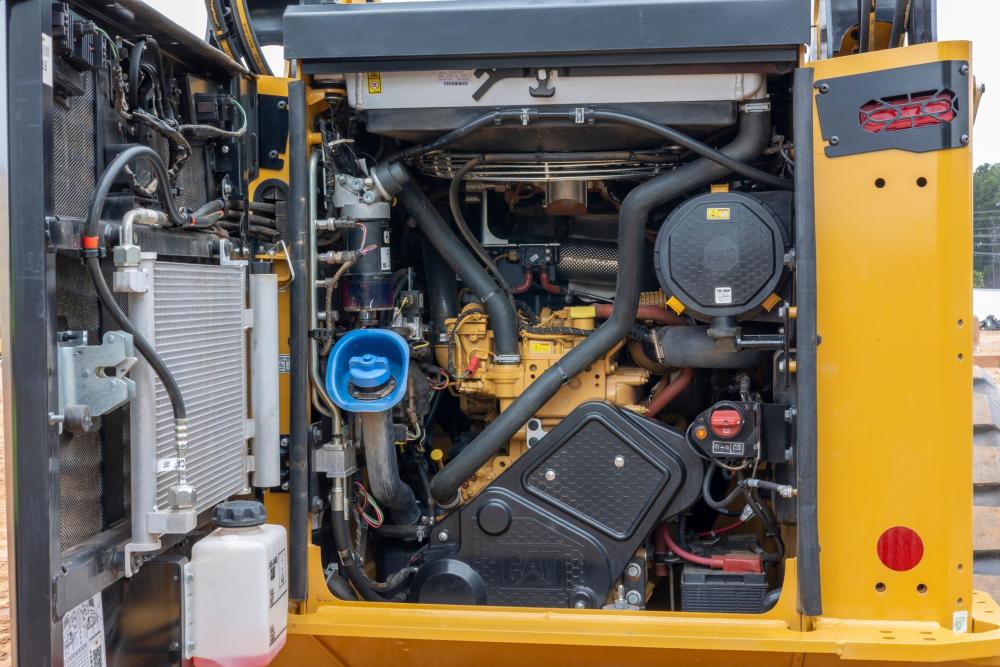

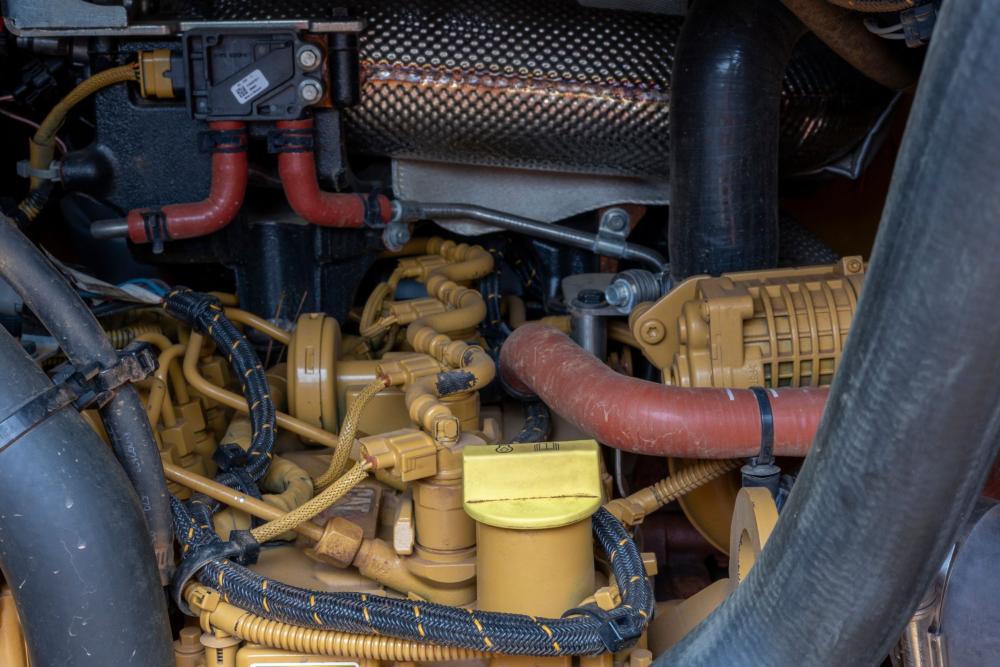

The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.

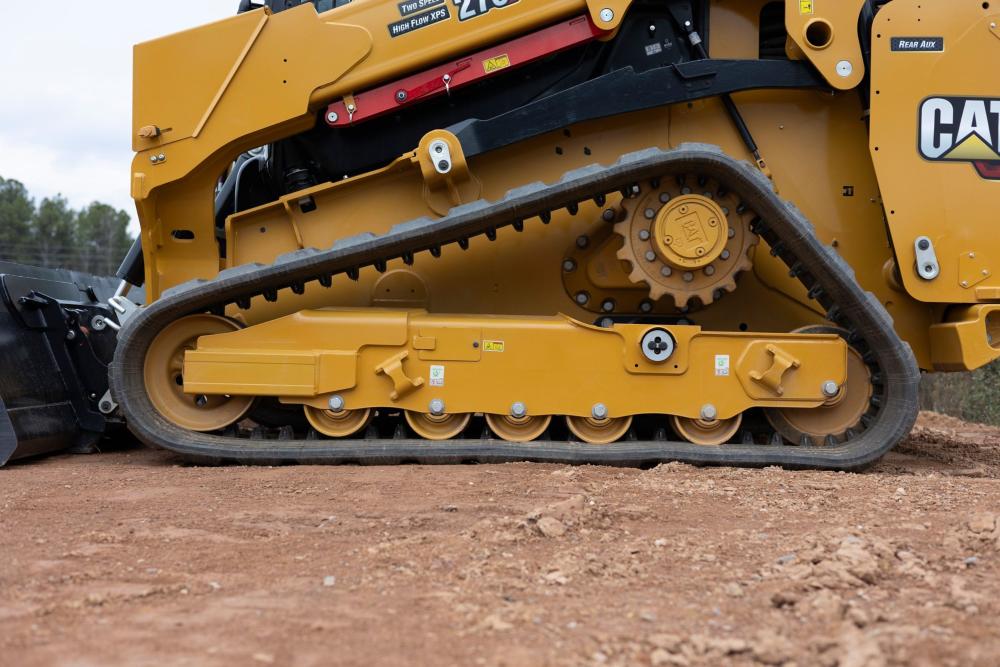

The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.
The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

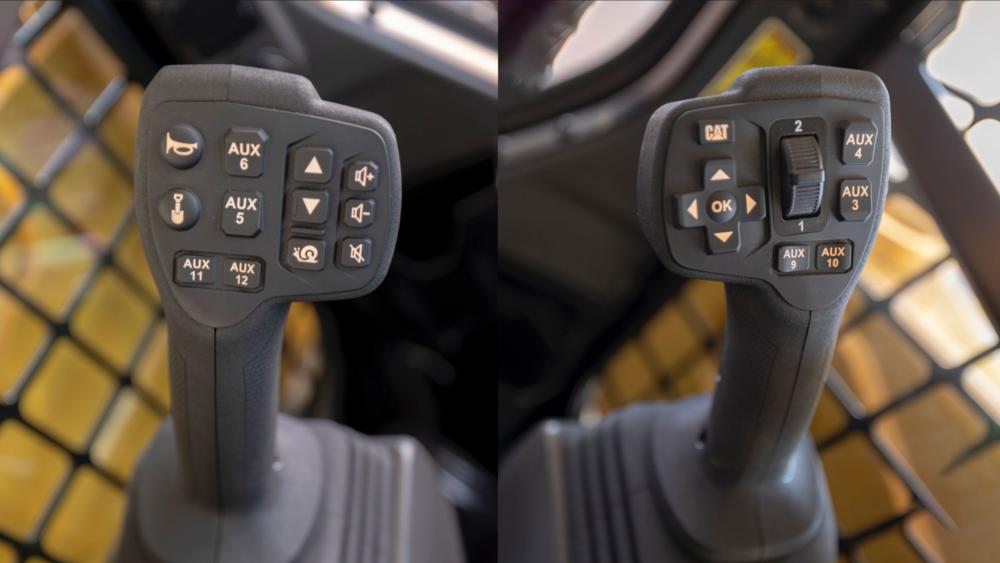

Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

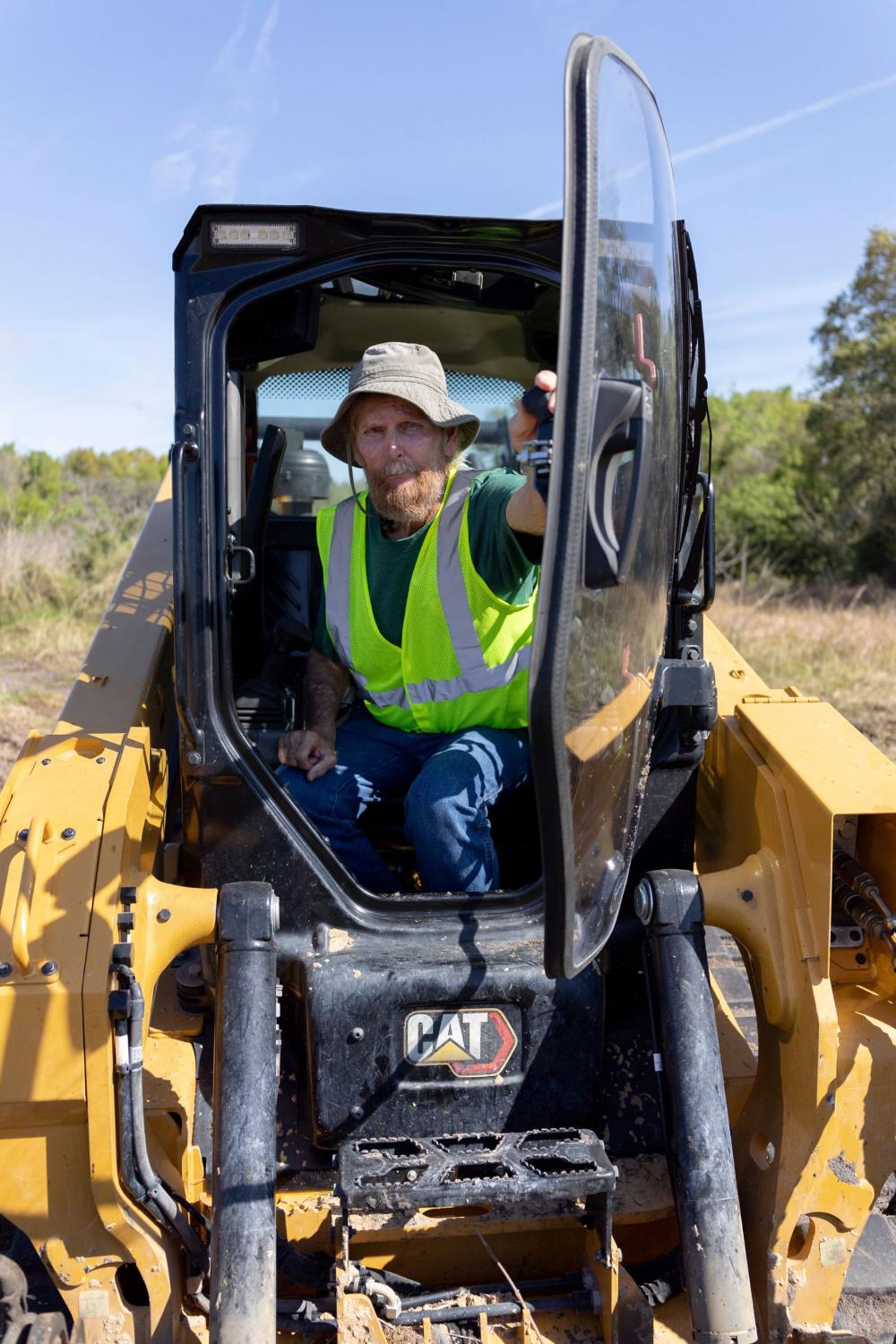

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

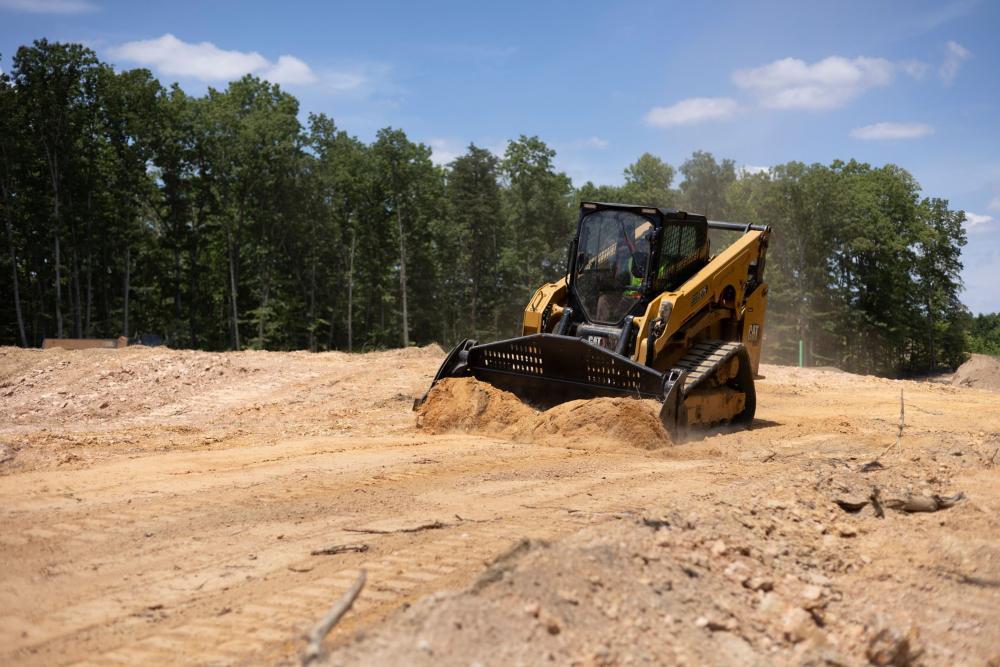

Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.
Engine
| Gross Power - SAE J1995:2014 |
82 kW |
111 hp |
| Bore |
120 mm |
4.7 in |
| Displacement |
3.6 l |
221 in² |
| Net Power - ISO 9249 |
81 kW |
109 hp |
| Net Power - SAE 1349 |
111 kW |
82 hp |
| Peak Torque at 1,360 rpm SAE J1995 |
501 N·m |
370 lb/ft |
| Stroke |
98 mm |
3.9 in |
| Engine Model |
Cat® C3.6 TA (turbocharged after-cooled) |
Operating Specifications
| Rated Operating Capacities - 35% Tipping Load |
1885 kg |
4156 lb |
| Breakout Force - Lift Cylinder |
2913 kg |
6422 lb |
| Breakout Force - Tilt Cylinder |
4519 kg |
9963 lb |
| Ground Contact Area - With 450 mm/17.7 in Track |
1.81 m² |
2808 in² |
| Ground Pressure - With 450 mm/17.7 in Track |
31.3 kPa |
4.5 psi |
| Rated Operating Capacities - 50% Tipping Load |
2693 kg |
5937 lb |
| Rated Operating Capacity with Optional Counterweight |
2011 kg |
4435 lb |
| Tipping Load |
5386 kg |
11874 lb |
Weights*
| Operating Weight |
5625 kg |
12401 lb |
| Counterweight Adds to Operating Weight |
194 kg |
428 lb |
| Counterweight Adds to Operating Weight - ROC (35%) |
48 kg |
105 lb |
| Counterweight Adds to Operating Weight - Tip Load |
361 kg |
796 lb |
| Enclosed Cab Adds to Operating Weight |
99 kg |
218 lb |
| Enclosed Cab Adds to Operating Weight - ROC (35%) |
48 kg |
105 lb |
| Enclosed Cab Adds to Operating Weight - Tip Load |
136 kg |
214 lb |
| Note |
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
Dimensions
| Bucket Pin Height - Carry Position |
205 mm |
8.1 in |
| Bucket Pin Height - Maximum Lift |
3415 mm |
134.4 in |
| Bucket Pin Reach - Maximum Lift |
415 mm |
16.3 in |
| Clearance at Maximum Lift and Dump |
2694 mm |
106.1 in |
| Departure Angle |
29.5° |
| Ground Clearance |
280 mm |
11 in |
| Height - Top of Cab |
2230 mm |
87.8 in |
| Length - Track on Ground |
1836 mm |
72.3 in |
| Length - With Bucket on Ground |
3880 mm |
152.8 in |
| Length - Without Bucket |
3250 mm |
128 in |
| Maximum Overall Height |
4193 mm |
165.1 in |
| Maximum Reach - With Arms Parallel to Ground |
1187 mm |
46.7 in |
| Overall Length - Track |
2126 mm |
83.7 in |
| Rack Back Angle - Maximum Height |
86.7° |
| Reach at Maximum Lift/Dump |
814 mm |
32 in |
| Roll Back Angle |
27° |
| Turning Radius from Center - Bucket (racked) |
2320 mm |
91.3 in |
| Turning Radius from Center - Coupler |
1531 mm |
60.3 in |
| Turning Radius from Center - Machine Rear |
1931 mm |
76 in |
| Vehicle Width (450 mm/17.7 in tracks) |
1976 mm |
77.8 in |
| Maximum Dump Angle |
44.7° |
Cab
| FOPS |
ISO 3449:2005 Level I |
| ROPS |
ISO 3471:2008 |
| FOPS Level II |
ISO 3449:2005 Level II (Optional) |
Service Refill Capacities
| Cooling System |
17.5 l |
4.6 gal (US) |
| Engine Crankcase |
9 l |
2.4 gal (US) |
| Fuel Tank |
136.1 l |
36.9 gal (US) |
| Hydraulic System |
41 l |
10.8 gal (US) |
| Hydraulic Tank |
26 l |
6.9 gal (US) |
| Diesel Exhaust Fluid (DEF) Tank |
11 l |
2.9 gal (US) |
Power Train
| Travel Speed - Forward or Reverse - One Speed |
8.4 km/h |
5.2 mile/h |
| Travel Speed - Forward or Reverse - Two Speed |
12.5 km/h |
7.8 mile/h |
Hydraulic System
| Hydraulic Flow - High Flow - Loader Hydraulic Flow |
129 L/min |
34 gpm |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure |
24130 kPa |
3500 psi |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) |
60.2 kW |
80.7 hp |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow |
128 L/min |
34 gpm |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure |
3500 kPa |
4061 psi |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
34.6 kW |
46.4 hp |
| Hydraulic Flow - Standard - Loader Hydraulic Flow |
86 L/min |
23 gpm |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure |
24130 kPa |
3500 psi |
